RT 1200 - Toro Riding Trencher Traction Unit (2010) ROCKSAW STABILIZER CYLINDER MOUNTING ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

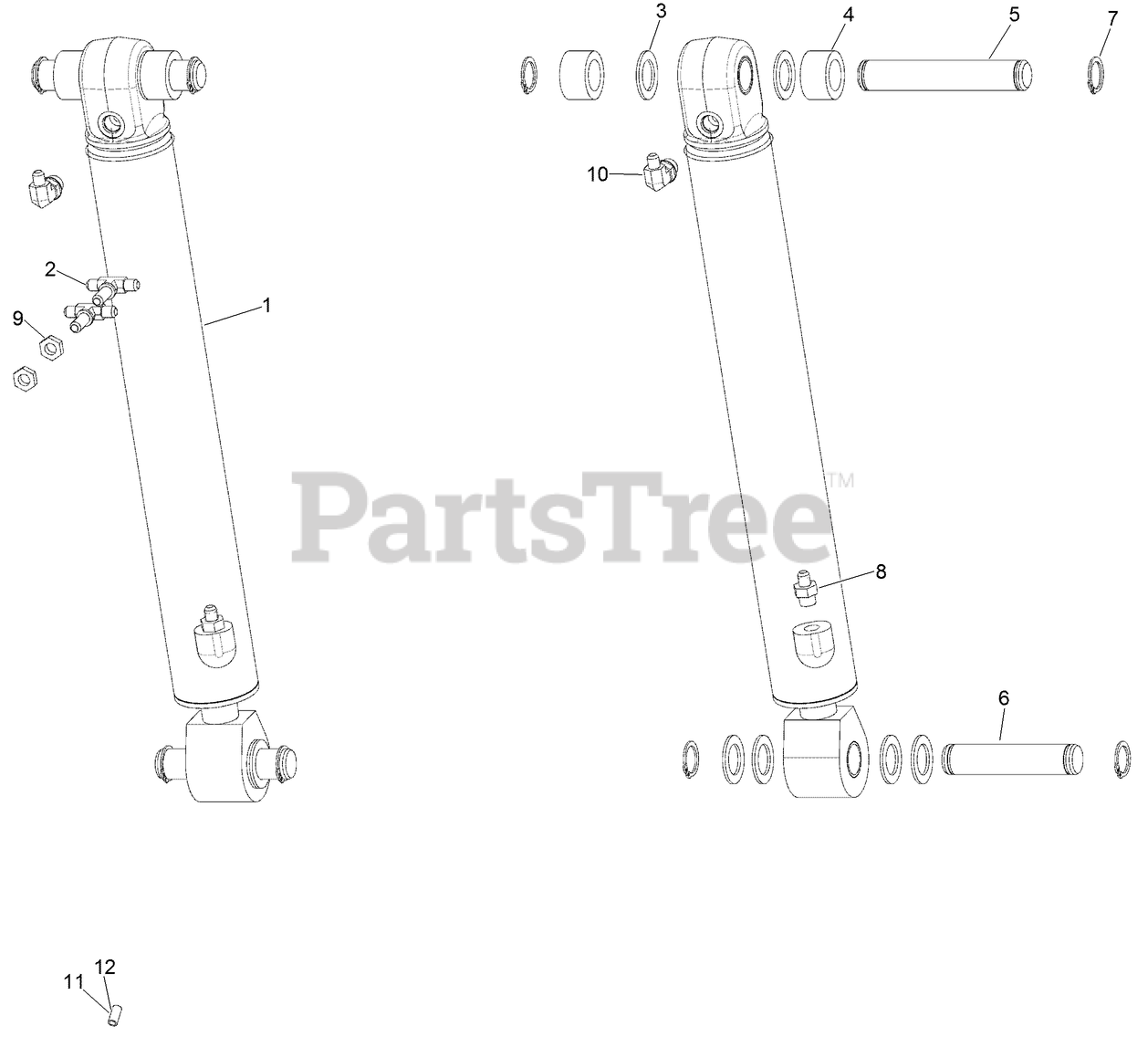

ROCKSAW STABILIZER CYLINDER MOUNTING ASSEMBLY Parts Diagram

  • Title

Toro AU119087

STABILIZER GROUP - Rock Saw

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU1346411C3

CYLINDER-76 (3) ID x 498 mm (19-5/8 inch) Stroke, Dipper
(Superseded to AU123706)

$

$

Not available

2

Toro AU218-804

TEE - Bulkhead BR 37FL 3/8 x 3/8 x 3/8

$

$

Currently unavailable

3

Toro AU495-81203

WASHER

$24.99

$

Usually ships in 3-6 days

0

4

Toro AU103053

SPACER - Pin

$

$

Currently unavailable

5

Toro AUH436746

PIN-PIVOT

$

$

Currently unavailable

6

Toro AUH437323

PIN

$

$

Currently unavailable

7

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$5.49

$

Usually ships in 3-6 days

0

8

Toro AU218-5058

CONNECTOR

$6.99

$

Usually ships in 3-6 days

0

9

Toro AU218-1254

NUT-LOCK, BULKHEAD

$4.49

$

Usually ships in 3-6 days

0

10

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$13.99

$

Usually ships in 3-6 days

0

11

Toro AUH433163

ASSEMBLY - Hose

$121.99

$

Usually ships in 3-6 days

0

12

Toro AUH249615

ASSEMBLY - Hose

$

$

Not available
