RT 1200 - Toro Riding Trencher Traction Unit (2010) ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

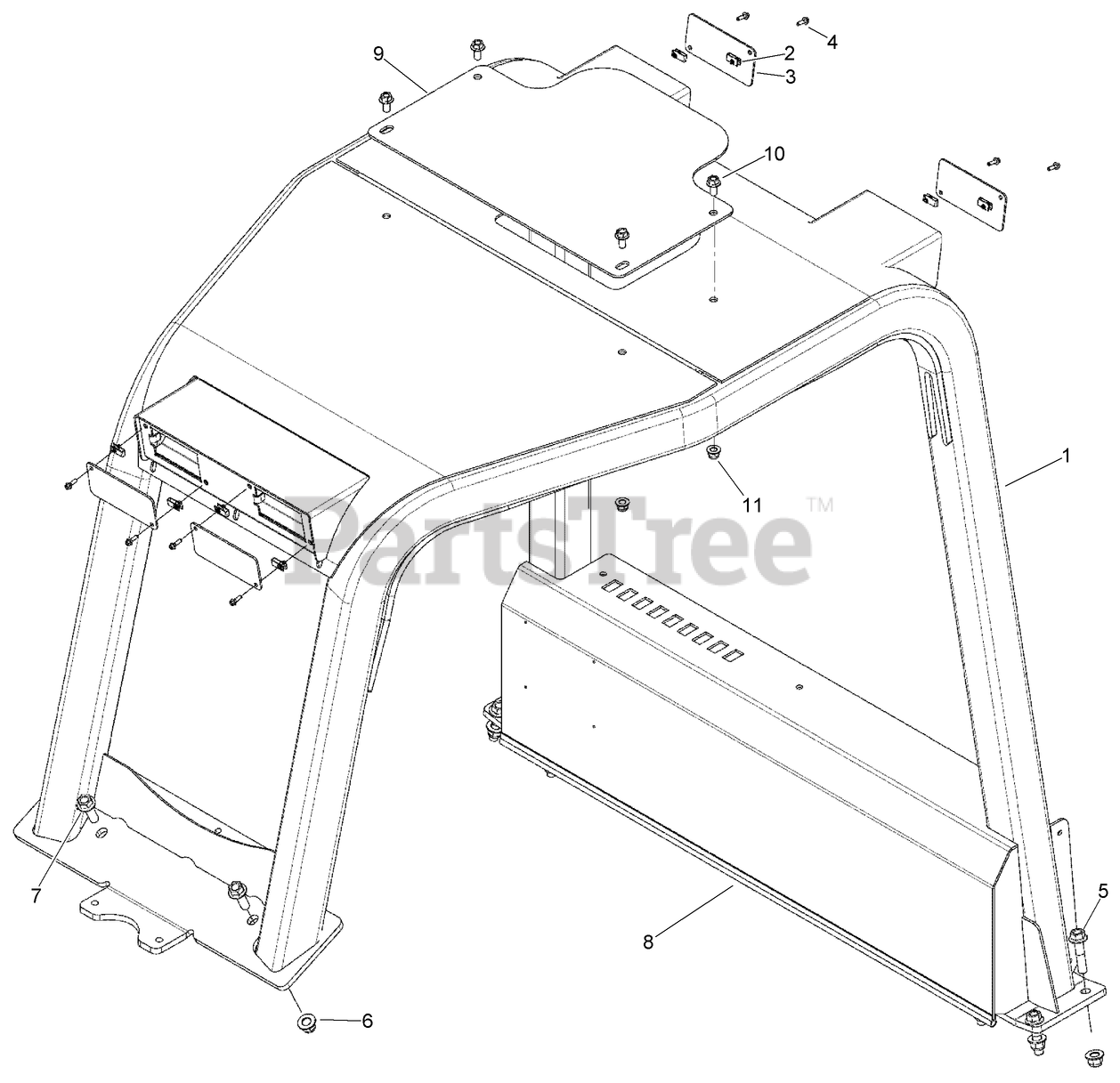

ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

  • Title

Toro AU116549

ASSEMBLY - Roll Over Protection System (ROPS)

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116756

WELDMENT - Main ROPS

$

$

Currently unavailable

2

Toro AU100861

NUT-U

$5.99

$

Usually ships in 3-6 days

0

3

Toro AU105156

PLATE- Cover
(Superseded to AU105156-03)

$

$

Not available

4

Toro AU100869

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU100364

SCREW-FLANGE

$15.99

$

Usually ships in 3-6 days

0

6

Toro AU100529

NUT-HHF

$6.49

$

Usually ships in 3-6 days

0

7

Toro AU100832

SCREW-FLANGE

$13.99

$

Usually ships in 3-6 days

0

8

Toro AU118604

SEAL-HOOD

$

$

Currently unavailable

9

Toro AU119456

PLATE - Cover

$

$

Currently unavailable

10

Toro AU100414

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

11

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0
