RT 1200 - Toro Riding Trencher Traction Unit (2010) SLIDING OFFSET KIT Parts Diagram

Riding Trencher Traction Unit

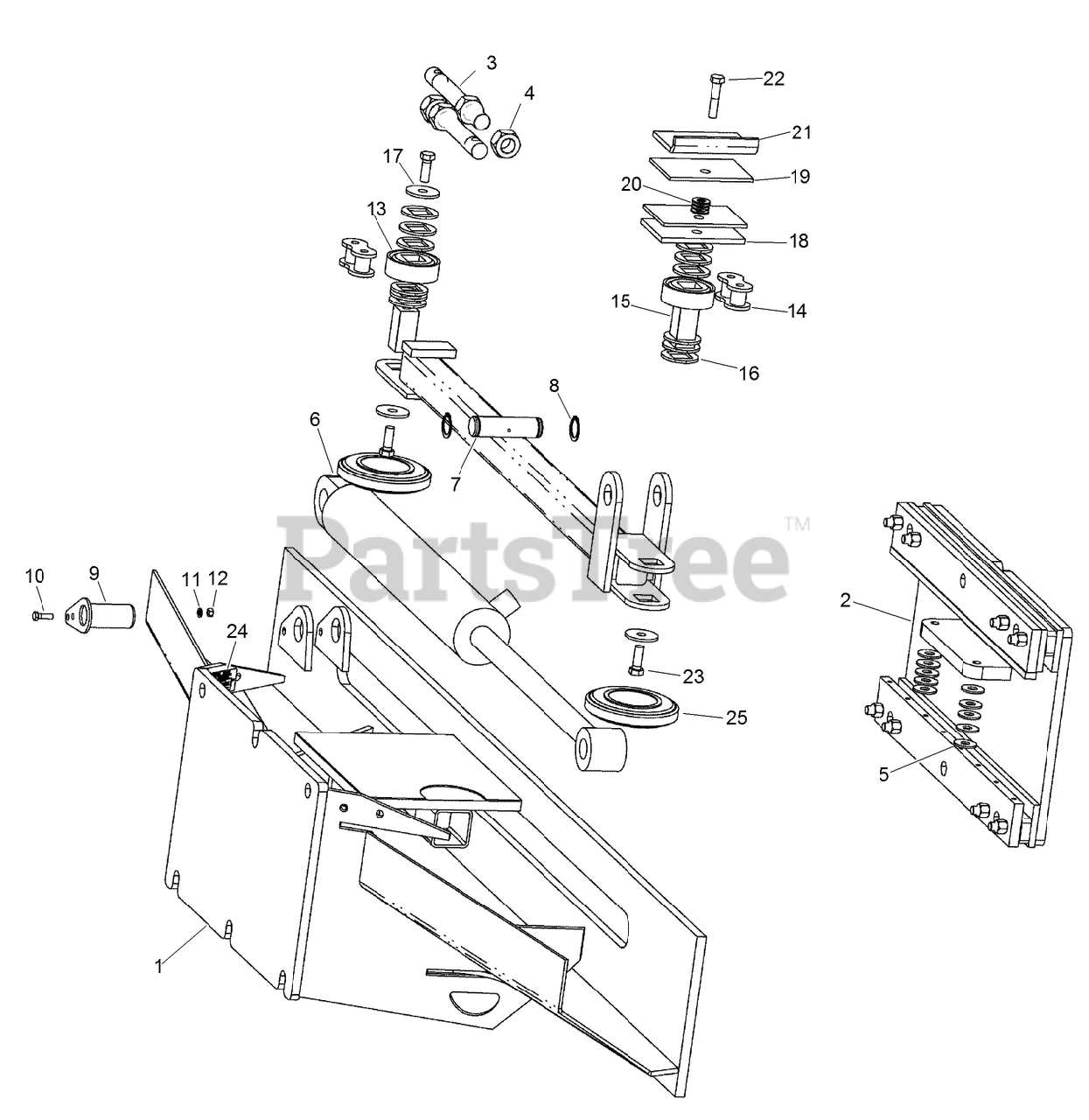

SLIDING OFFSET KIT Parts Diagram

  • Title

Toro AU101009

KIT-HYDRAULIC SLIDING OFFSET

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100936

Weldment, Offset Slider
(Superseded to 130-7459)

$

$

Not available

2

Toro AU100934

SLIDE MOUNT ASM

$

$

Currently unavailable

3

Toro AU425-1020

NUT-HEX

$

$

Currently unavailable

4

Toro AU101012

ROD-THREADED

$

$

Currently unavailable

5

Toro AU495-21069

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

6

Toro AUH672568

CYLINDER - Boom

$

$

Not available

7

Toro AU221253A1

PIN-PIVOT

$250.99

$

Usually ships in 3-6 days

0

8

Toro AUD25279

RING

$22.99

$

Usually ships in 3-6 days

0

9

Toro AUH672354

PIN-BOOM (CYLINDER)

$361.99

$

Usually ships in 3-6 days

0

10

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

11

Toro AU492-11038

WASHER-Spring Lock, Reg 3/8 ZND
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 8

0

12

Toro AU129-770

NUT-HEX

$6.49

$

Usually ships in 3-6 days

0

13

Toro AUH747444

BEARING

$111.99

$

Usually ships in 3-6 days

0

14

Toro AU100969

CHAIN ASM

$

$

Currently unavailable

15

Toro AU100699

BAR-AXLE, ROLLER

$231.99

$

Usually ships in 3-6 days

0

16

Toro AU100700

WASHER

$15.99

$

Usually ships in 3-6 days

0

17

Toro AU496-81025

WASHER

$28.99

$

Usually ships in 3-6 days

0

18

Toro AU101257

Plate, Slide

$

$

Currently unavailable

19

Toro AU101258

SHEET-WEAR STRIP

$

$

Currently unavailable

20

Toro AU495-11066

WASHER-FLAT

$10.99

$

Usually ships in 3-6 days

0

21

Toro AU101350

Plate, Slide, Upper

$

$

Currently unavailable

22

Toro AU426-1044

BOLT-hex, 5/8 NC x 2-3/4 inch, grade 8
(Superseded to 110-4614)

$5.99

$

Usually ships in 3-6 days

0

23

Toro AU426-1028

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

24

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

25

Toro AU101805

WHEEL-BOOM END, IDLER
(Superseded to 127-1070)

$1413.99

$

Usually ships in 3-6 days

0
