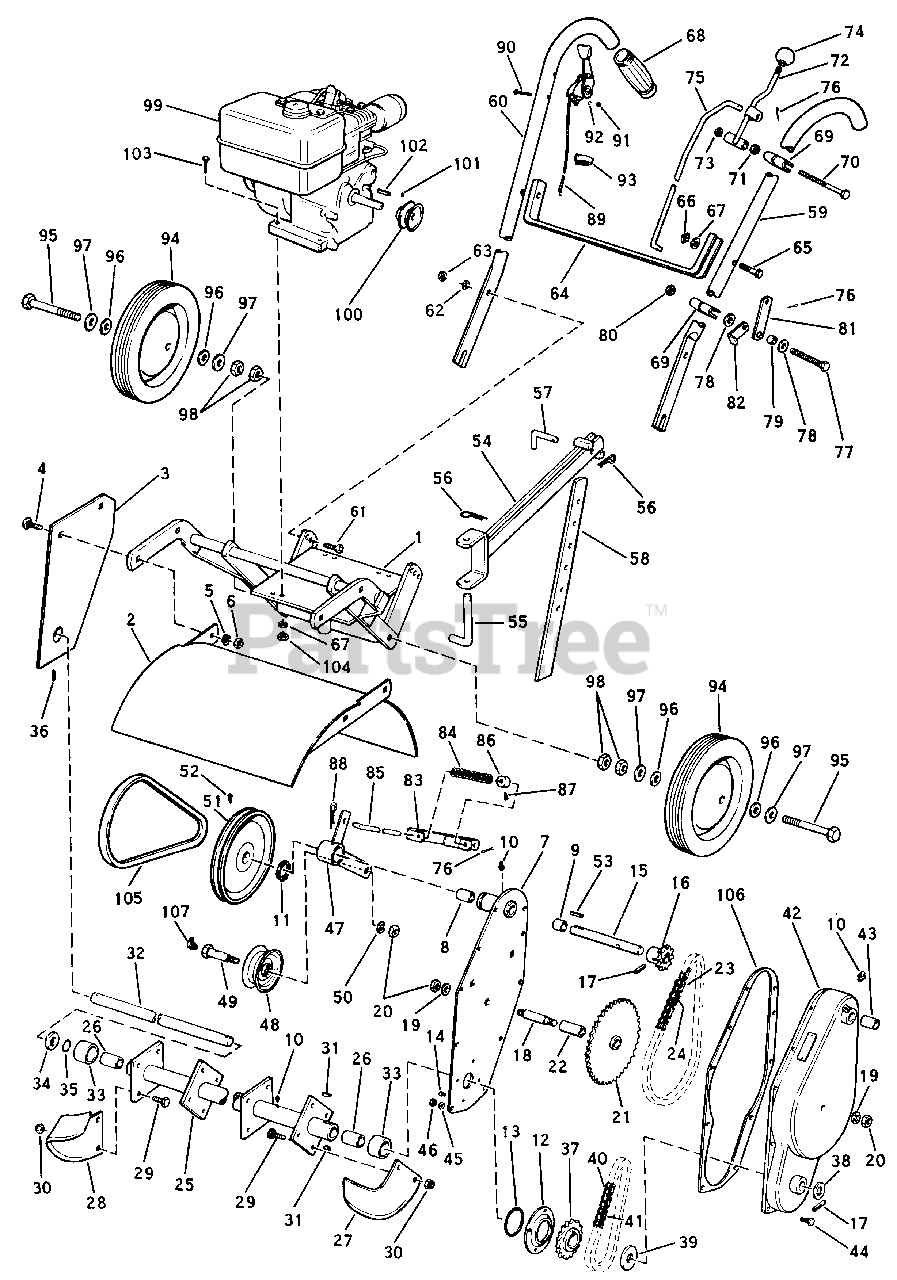

RT-1LB - Lawn-Boy Tiller (SN: 900000001 - 999999999) (1959) MODEL RT-1LB ROTARY TILLER PARTS LIST Parts Diagram

Tiller

MODEL RT-1LB ROTARY TILLER PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 10763

Frame Assy.

$

$

Currently unavailable

2

Lawn-Boy 21395

Hood Assy.

$

$

Currently unavailable

3

Lawn-Boy 21548

Side Plate Assy.

$

$

Currently unavailable

4

Lawn-Boy 43226

Carriage Bolt 3/8-16 x 1 Lg.

$

$

Currently unavailable

5

Lawn-Boy 42735

Lockwasher 3/8

$

$

Currently unavailable

6

Lawn-Boy 42761

Hex Nut 3/8-16

$

$

Currently unavailable

7

Lawn-Boy 21552

Back Plate Assy.

$

$

Currently unavailable

8

Lawn-Boy 44786

Bushing

$

$

Currently unavailable

9

Lawn-Boy 45356

Bushing

$

$

Currently unavailable

10

Lawn-Boy 42643

Grease Fitting 1/4-28 St.

$

$

Currently unavailable

11

Lawn-Boy 44783

Snap Ring

$

$

Currently unavailable

12

Lawn-Boy 44546

Oil Seal Retainer

$

$

Currently unavailable

13

Lawn-Boy 44547

"O" Ring (Neoprene)

$

$

Currently unavailable

14

Lawn-Boy 42496

Self Tapping Screw #8-32 x 1/4 Lg.

$

$

Not available

15

Lawn-Boy 45357

Input Shaft

$

$

Currently unavailable

16

Lawn-Boy 45358

Input Sprocket & Hub Assy.

$

$

Currently unavailable

17

Lawn-Boy 44211

Roll Pin 3/16 x 1-1/8

$

$

Currently unavailable

18

Lawn-Boy 45058

Intermediate Shaft

$

$

Currently unavailable

19

Lawn-Boy 44788

Lockwasher 1/2 Shakeproof

$

$

Currently unavailable

20

Lawn-Boy 44789

Jam Nut 1/2-20

$

$

Currently unavailable

21

Lawn-Boy 45059

Sprocket Cluster Assy.

$

$

Currently unavailable

22

Lawn-Boy 45063

Bushing

$

$

Currently unavailable

23

Lawn-Boy 45092

Chain #41-1/2 Pitch, 55 Links

$

$

Currently unavailable

24

Lawn-Boy 44666

Connector Link #41-1/2 Pitch

$

$

Currently unavailable

25

Lawn-Boy 32413

Rotor Tube Assy.

$

$

Currently unavailable

26

Lawn-Boy 45702

Bushing

$

$

Currently unavailable

27

Lawn-Boy 32131

Tine RH

$

$

Currently unavailable

28

Lawn-Boy 32132

Tine LH

$

$

Currently unavailable

29

Lawn-Boy 45068

Tine Bolt

$

$

Currently unavailable

30

Lawn-Boy 45069

Marsden Nut 3/8-24

$

$

Currently unavailable

31

Lawn-Boy 45222

Woodruff Key

$

$

Currently unavailable

32

Lawn-Boy 32412

Rotor Shaft

$

$

Currently unavailable

33

Lawn-Boy 80736

Sleeve (Neoprene)

$

$

Currently unavailable

34

Lawn-Boy 44084

Thrust Washer

$

$

Currently unavailable

35

Lawn-Boy 45071

"O" Ring

$

$

Currently unavailable

36

Lawn-Boy 45703

Roll Pin

$

$

Currently unavailable

37

Lawn-Boy 45360

Sprocket 18 Tooth

$

$

Currently unavailable

38

Lawn-Boy 44732

Washer

$

$

Currently unavailable

39

Lawn-Boy 45364

Thrust Washer

$

$

Currently unavailable

40

Lawn-Boy 45072

Chain #40-1/2 Pitch, 37 Links

$

$

Currently unavailable

41

Lawn-Boy 45073

Connector Link #40-1/2 Pitch

$

$

Currently unavailable

42

Lawn-Boy 45076

Cover Assembly

$

$

Currently unavailable

43

Lawn-Boy 44786

Bushing

$

$

Currently unavailable

44

Lawn-Boy 45077

Capscrew 1/4-20 x 5/8 Lg.

$

$

Currently unavailable

45

Lawn-Boy 42566

Lockwasher 1/4 Shakeproof

$

$

Currently unavailable

46

Lawn-Boy 42380

Hex Nut 1/4-20

$

$

Currently unavailable

47

Lawn-Boy 45365

Idler Arm Assy.

$

$

Currently unavailable

48

Lawn-Boy 44569

Idler Pulley Assy.

$

$

Currently unavailable

49

Lawn-Boy 44570

Idler Pulley Shaft

$

$

Currently unavailable

50

Lawn-Boy 43644

Lockwasher 1/2

$

$

Currently unavailable

51

Lawn-Boy 32179

Pulley 7.4 OD x 5/8 Bore

$

$

Not available

52

Lawn-Boy 45219

Set Screw 5/16-18

$

$

Currently unavailable

53

Lawn-Boy 42865

Key 3/16 Sq. x 3/4 Lg.

$

$

Not available

54

Lawn-Boy 32180

Beam Assy.

$

$

Currently unavailable

55

Lawn-Boy 45373

Anchor Pin

$

$

Currently unavailable

56

Lawn-Boy 44638

Spring Clip

$

$

Currently unavailable

57

Lawn-Boy 44637

Selector Pin

$

$

Currently unavailable

58

Lawn-Boy 32181

Depth Bar

$

$

Currently unavailable

59

Lawn-Boy 21396

Handle Bar Assy. LH

$

$

Currently unavailable

60

Lawn-Boy 21397

Handle Bar Assy. RH

$

$

Currently unavailable

61

Lawn-Boy 45250

Capscrew 3/8-16 NC x 1-1/4 Lg.

$

$

Currently unavailable

62

Lawn-Boy 42384

Lockwasher 3/8

$

$

Not available

63

Lawn-Boy 42921

Hex Nut 3/8-16

$

$

Not available

64

Lawn-Boy 32183

Cross Brace

$3.23

$

Usually ships in 3-6 days

0

65

Lawn-Boy 45375

Capscrew 5/16-18 NC x 1-1/2 Lg.

$

$

Currently unavailable

66

Lawn-Boy 42923

Hex Nut 5/16-18

$

$

Not available

67

Lawn-Boy 42922

Lockwasher 5/16

$

$

Not available

68

Lawn-Boy 42281

Grip (Plastic)

$

$

Currently unavailable

69

Lawn-Boy 43691

Lock Collar

$

$

Currently unavailable

70

Lawn-Boy 42999

Idler Shaft Bolt

$

$

Not available

71

Lawn-Boy 42877

Jam Nut 3/8-24
(Superseded to 92-0356)

$337.99

$

Usually ships in 3-6 days

0

72

Lawn-Boy 45024

Control Lever Assy. LH

$

$

Currently unavailable

73

Lawn-Boy 44687

Retaining Ring

$

$

Currently unavailable

74

Lawn-Boy 43501

Knob

$

$

Currently unavailable

75

Lawn-Boy 45029

Control Rod LH

$

$

Currently unavailable

76

Lawn-Boy 42275

Cotter Pin 3/32 x 3/4

$

$

Not available

77

Lawn-Boy 45233

Capscrew 3/8-24 x 2-1/2 Lg.

$

$

Currently unavailable

78

Lawn-Boy 42689

Washer

$

$

Not available

79

Lawn-Boy 45020

Spacer

$

$

Currently unavailable

80

Lawn-Boy 42877

Hex Nut 3/8-24
(Superseded to 92-0356)

$337.99

$

Usually ships in 3-6 days

0

81

Lawn-Boy 45399

Clutch Lever

$

$

Currently unavailable

82

Lawn-Boy 45019

Lever Stop

$

$

Currently unavailable

83

Lawn-Boy 45282

Spring Bracket Assy.

$

$

Currently unavailable

84

Lawn-Boy 45198

Control Spring

$

$

Currently unavailable

85

Lawn-Boy 80072

Transmission Control Rod

$

$

Currently unavailable

86

Lawn-Boy 43203

Set Collar

$

$

Currently unavailable

87

Lawn-Boy 42984

Set Screw 1/4-20

$

$

Currently unavailable

88

Lawn-Boy 44638

Spring Clip

$

$

Currently unavailable

89

Lawn-Boy 45377

Throttle Control Assembly

$

$

Currently unavailable

90

Lawn-Boy 45201

Machine Screw #8-32 x 1-1/2 Lg.

$

$

Currently unavailable

91

Lawn-Boy 43635

Hex Nut #8-32

$

$

Currently unavailable

92

Lawn-Boy 45378

Lockwasher #8

$

$

Currently unavailable

93

Lawn-Boy 45041

Cable Clip

$

$

Currently unavailable

94

Lawn-Boy 32236

Wheel Assy. 10 x 1.75

$

$

Currently unavailable

95

Lawn-Boy 42876

Hex Hd. Capscrew 1/2-13 NC x 4
(Superseded to 92-0356)

$337.99

$

Usually ships in 3-6 days

0

96

Lawn-Boy 42469

Washer (Rubber)

$

$

Not available

97

Lawn-Boy 42467

Washer 1/2 SAE

$

$

Currently unavailable

98

Lawn-Boy 42282

Hex Jam Nut 1/2-13

$175.99

$

Usually ships in 3-6 days

0

99

Lawn-Boy 45379

Engine (B&S)

$

$

Currently unavailable

100

Lawn-Boy 44709

Pulley

$

$

Currently unavailable

101

Lawn-Boy 42583

Set Screw 5/16-18 NC x 5/16 Lg.

$

$

Currently unavailable

102

Lawn-Boy 42269

Key 3/16 Sq. x 1-1/8

$

$

Currently unavailable

103

Lawn-Boy 45375

Capscrew 5/16-18 NC x 1-1/2 Lg.

$

$

Currently unavailable

104

Lawn-Boy 42923

Hex Nut 5/16-18

$

$

Not available

105

Lawn-Boy 45589

"V" Belt 37" A Section

$

$

Currently unavailable

106

Lawn-Boy 21374

Side Plate Gasket

$

$

Currently unavailable

107

Lawn-Boy 45581

Grease Fitting 1/4-28-90deg.

$

$

Currently unavailable

Lawn-Boy 603331

Decal

$

$

Currently unavailable
