RT-35 (21A-62M8709) - Cub Cadet Rear-Tine Tiller (2016) Handle Assembly Parts Diagram

Rear-Tine Tiller

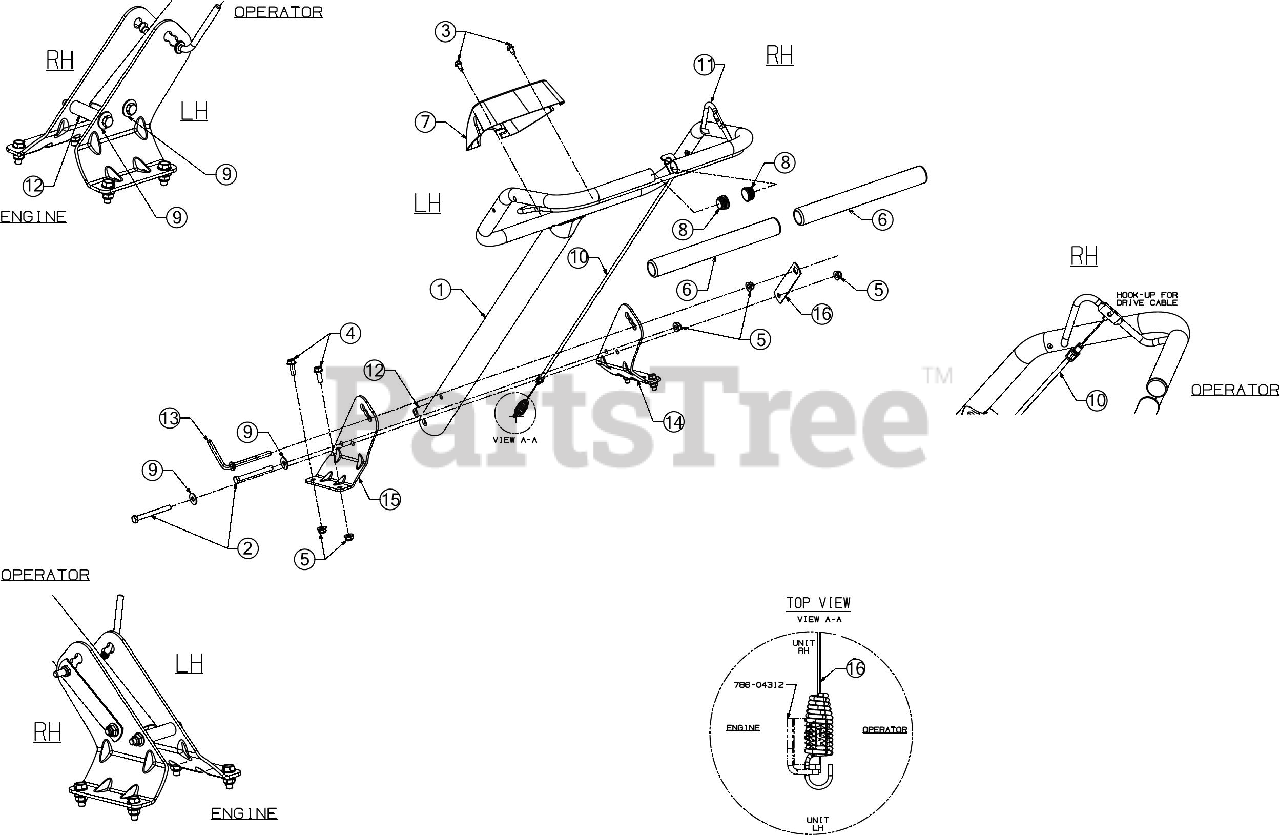

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 649-04098A-4021

UPPER HANDLE ASSEMBLY
(Superseded to 649-04098B-4021)

$100.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0189

HEX SCREW 5/16-18 x 3.00

$5.99

$

In Stock, Qty 5

0

3

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 10

0

5

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 720-0278A

FOAM GRIP .970 x 11.0

$21.99

$

In Stock, Qty 5

0

7

Cub Cadet 731-06253B

HANDLE COVER W/O SWITCH HOLE

$21.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 735-04105A

END PLUG

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 946-04506

FORWARD CABLE

$33.99

$

In Stock, Qty 20+

0

11

Cub Cadet 747-04789A-0637

CLUTCH BAIL

$27.99

$

In Stock, only 2 left!

0

12

Cub Cadet 750-0885A

SPACER

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 786-0340B

CRANK ADJUST HANDLE

$17.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 786-04344-4021

HANDLE BRACKET (RH)

$31.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 786-04345-4021

HANDLE BRACKET (LH)

$31.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 786-04358

RETURN BRACKET

$9.99

$

Usually ships in 3-6 days

0
