RT-35 (21A-62M8710) - Cub Cadet Rear-Tine Tiller (2019) Tine Shield Parts Diagram

Rear-Tine Tiller

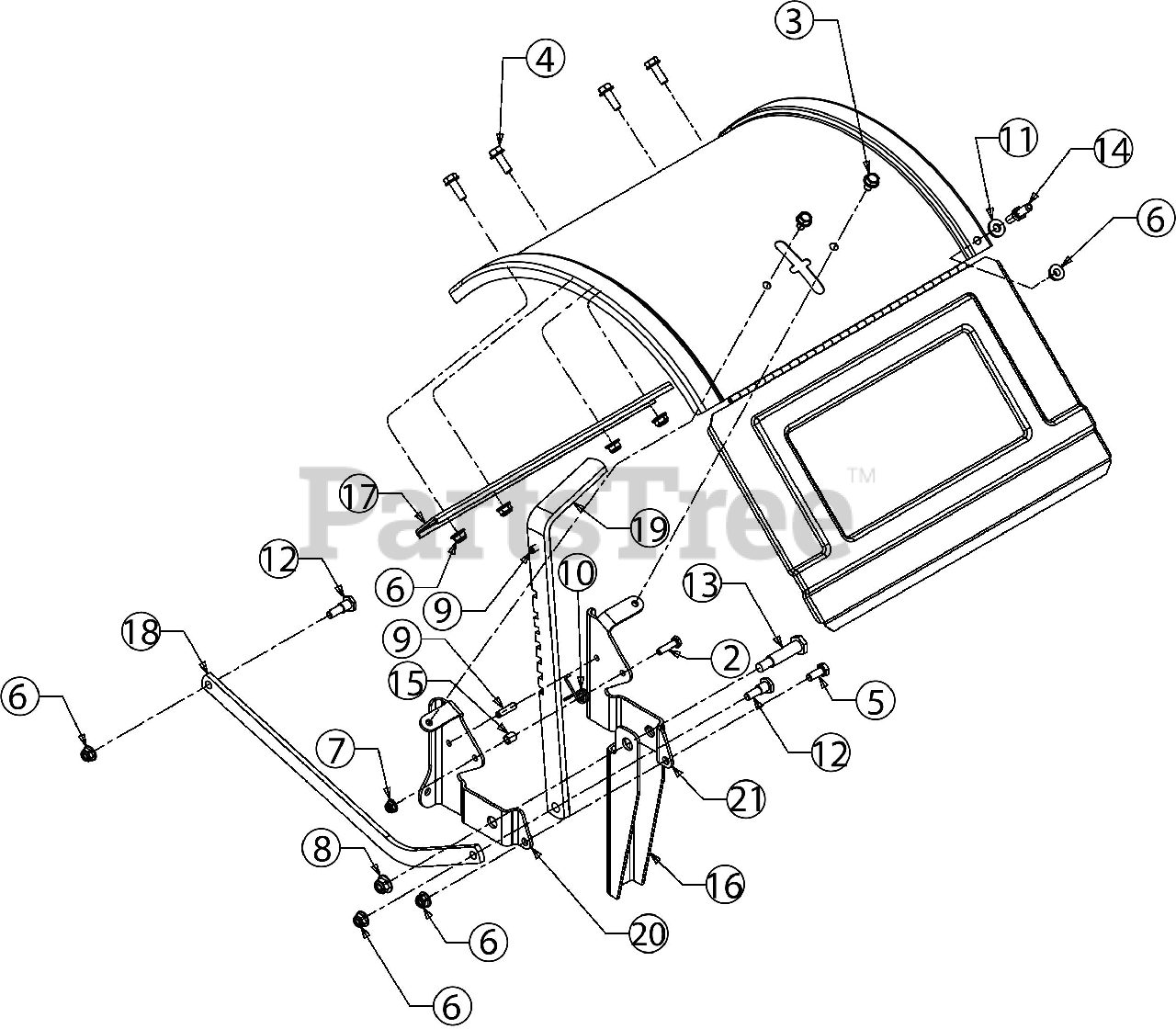

Tine Shield Parts Diagram

  • Title

1

Cub Cadet 686-05000

TINE SHIELD ASSEMBLY

Note: CHOOSE COLOR WHEN ORDERING

Variations

Cub Cadet 686-05000-4021

SHIELD ASM-TINE - CUB YELLOW 2 (4021)

$91.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 18

0

3

Cub Cadet 710-0604A

SCREW 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 6

0

5

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 715-0108

SPRING PIN 1/4 x 1.00

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 732-04320

TORSION SPRING

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 936-3008

FLAT WASHER

$6.49

$

In Stock, only 1 left!

0

12

Cub Cadet 738-04320

SHOULDER SCREW

$4.99

$

In Stock, only 4 left!

0

13

Cub Cadet 938-0533

SHOULDER BOLT .498 x 1.635:3/8-16
(Superseded to 738-0533)

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 938-0849

SHOULDER SCREW

$9.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 750-05349

ROUND SPACER

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 786-04092

REVERSE STOP ARM

Note: CHOOSE COLOR WHEN ORDERING

Variations

Cub Cadet 786-04092-0638

Stop Arm, Rev - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04092-0721

USE 786-04092-4044 ARM:REV:ST - SEARS RED (0721)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04092-4021

ARM:REV:STOP - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04092-4044

ARM:REV:STOP - CRAFTSMAN RED (4044)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

In Stock, only 1 left!

0

17

Cub Cadet 786-04098

SUPPORT BRACKET

Note: CHOOSE COLOR WHEN ORDERING

Variations

Cub Cadet 786-04098-0638

BRACKET:SUPT - MTD/TROY-BILT RED (0638)

$30.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04098-4021

BRACKET:SUPT - CUB YELLOW 2 (4021)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 786-04104

DEPTH DRAG BAR

Note: CHOOSE COLOR WHEN ORDERING

Variations

Cub Cadet 786-04104-0638

Depth Drag Bar, MTD Red - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04104-0721

USE 786-04104-4044 BAR:DEPTH - SEARS RED (0721)

$30.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04104-4021

BAR:DEPTH DRAG - CUB YELLOW 2 (4021)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04104-4044

BAR:DEPTH DRAG - CRAFTSMAN RED (4044)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 786-04356A

DEPTH ADJUSTMENT BRACKET

Note: CHOOSE COLOR WHEN ORDERING

Variations

Cub Cadet 786-04356A-0638

BRACKET-DEPTH ADJU - MTD/TROY-BILT RED (0638)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04356A-4021

BRACKET-DEPTH ADJUST - CUB YELLOW 2 (4021)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04356A-4044

BRACKET-DEPTH ADJU - CRAFTSMAN RED (4044)

$32.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 786-04363

TAIL BRACKET (LH)

Note: CHOOSE COLOR WHEN ORDERING

Variations

Cub Cadet 786-04363-0638

Tail Bracket, LH - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 786-04363-0721

USE 786-04363-4044 BRACKET-TA - SEARS RED (0721)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04363-4021

BRACKET-TAIL LH - CUB YELLOW 2 (4021)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04363-4044

BRACKET-TAIL LH - CRAFTSMAN RED (4044)

$21.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 786-04364

TAIL BRACKET (RH)

Note: CHOOSE COLOR WHEN ORDERING

Variations

Cub Cadet 786-04364-0638

BRACKET-TAIL RH - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 786-04364-0721

USE 786-04364-4044 BRACKET-TA - SEARS RED (0721)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04364-4021

BRACKET-TAIL RH - CUB YELLOW 2 (4021)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04364-4044

BRACKET-TAIL RH - CRAFTSMAN RED (4044)

$21.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0
