RT-414 (21AA414E290) - White Outdoor Roto Boss Rear-Tine Tiller (2008) Engine 157112-0590 1 Parts Diagram

Roto Boss Rear-Tine Tiller

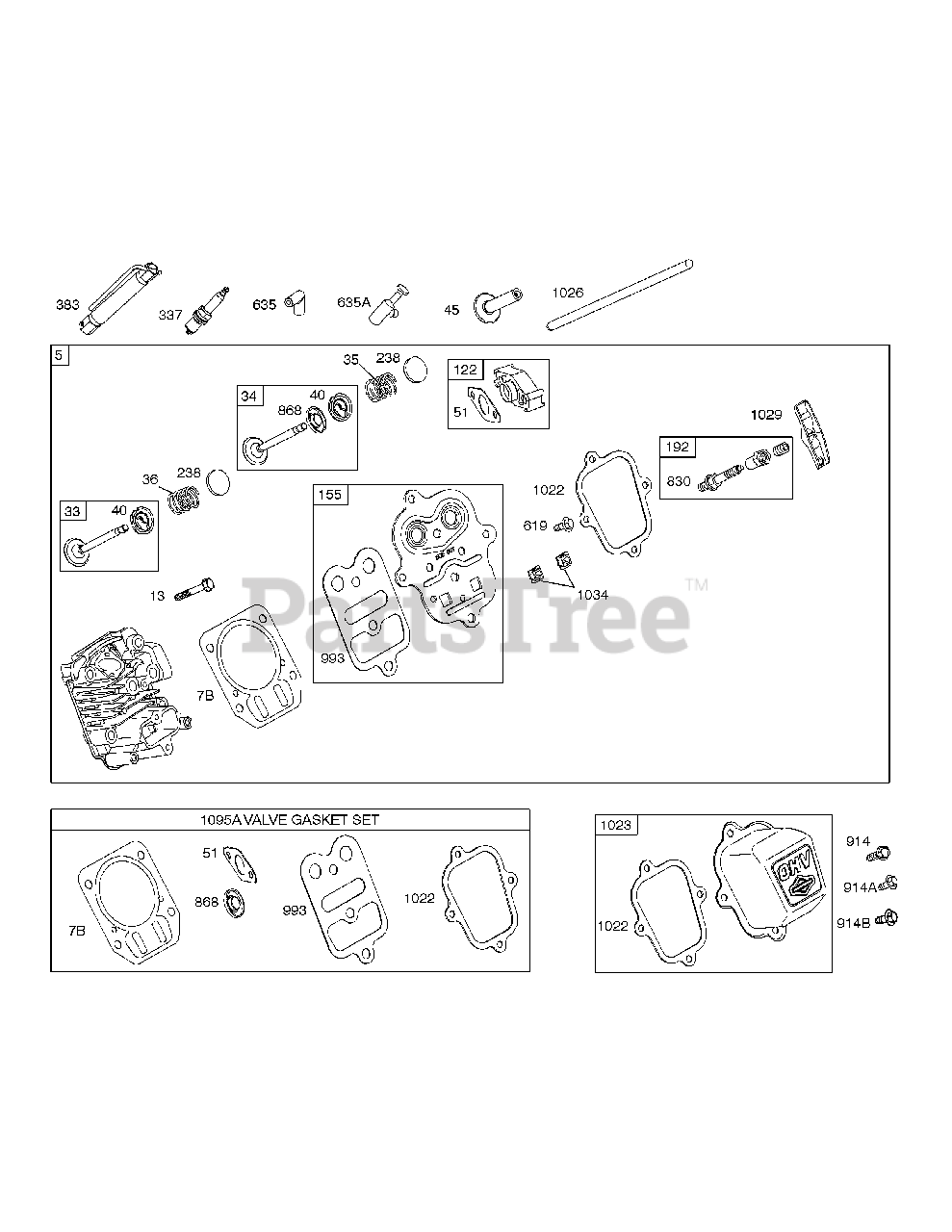

Engine 157112-0590 1 Parts Diagram

  • Title

1

MTD BS-794188

Cylinder Assembly

$232.99

$

Usually ships in 2-12 days

0

2

MTD BS-399269

Kit-Bushing/Seal (Magneto Side)

$21.99

$

In Stock, Qty 6

0

3

MTD BS-299819S

Seal-Oil (Magneto Side)

$5.49

$

In Stock, Qty 20+

0

5

MTD BS-791720

Head-Cylinder

$172.99

$

In Stock, only 1 left!

0

7B

MTD BS-791716

Gasket-Cylinder Head

$14.99

$

In Stock, Qty 8

0

11B

MTD BS-790632

Tube-Breather (Ultra Low Air Cleaner)

$10.99

$

In Stock, only 1 left!

0

12

MTD BS-699485

Gasket-Crankcase

$8.99

$

In Stock, Qty 20+

0

13

MTD BS-699482

Screw (Cylinder Head)

$4.99

$

Usually ships in 2-12 days

0

15

MTD BS-691686

Plug-Oil Drain (Square Head)

$5.49

$

In Stock, only 1 left!

0

15A

MTD BS-691682

Plug-Oil Drain (Flush)

Note: NLA

$5.49

$

Usually ships in 2-12 days

0

16

MTD BS-699449

Crankshaft
(Superseded to BS-797074)

Note: Used on Type No(s). 0590, 0591.

$179.99

$

Usually ships in 2-12 days

0

16

MTD BS-699445

Crankshaft
(Superseded to BS-797070)

Note: Used on Type No(s). 1013, 1015.

$192.99

$

Usually ships in 2-12 days

0

18

MTD BS-699804

Cover-Crankcase

Note: Used on Type No(s). 0590, 0591.

$209.99

$

Usually ships in 2-12 days

0

18

MTD BS-699696

Cover-Crankcase

Note: Used on Type No(s). 1013, 1015.

$199.99

$

Usually ships in 2-12 days

0

20

MTD BS-692550

Seal-Oil (PTO Side)

$8.99

$

In Stock, Qty 12

0

21

MTD BS-281658S

Cap-Oil Fill

$4.49

$

In Stock, only 2 left!

0

22

MTD BS-699478

Screw (Crankcase Cover/ Sump)
(Superseded to BS-799318)

$

$

Not available

23

MTD BS-699488

Flywheel

Note: Used on Type No(s). 0590, 1013, 1015.

$185.99

$

Usually ships in 2-12 days

0

23

MTD BS-699514

Flywheel

Note: Used on Type No(s). 0591.

$

$

Not available

24

MTD BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

MTD BS-791786

Piston Assembly (Standard)

$122.99

$

In Stock, only 1 left!

0

25

MTD BS-791791

Piston Assembly (.020" Oversize)

$130.99

$

Usually ships in 2-12 days

0

26

MTD BS-791787

Ring Set (Standard)

$38.99

$

In Stock, only 2 left!

0

26

MTD BS-791792

Ring Set (.020" Oversize)

$45.99

$

Usually ships in 2-12 days

0

27

MTD BS-690975

Lock-Piston Pin

$3.99

$

In Stock, only 1 left!

0

28

MTD BS-690229

Pin-Piston

$17.99

$

In Stock, only 1 left!

0

29B

MTD BS-791783

Rod-Connecting

$61.99

$

Usually ships in 2-12 days

0

32

MTD BS-791784

Screw (Connecting Rod)

$4.99

$

In Stock, only 1 left!

0

33

MTD BS-499642

Valve-Exhaust

$35.99

$

In Stock, Qty 6

0

34

MTD BS-795443

Valve-Intake

$27.99

$

In Stock, Qty 5

0

35

MTD BS-691304

Spring-Valve (Intake)

$5.99

$

In Stock, Qty 8

0

36

MTD BS-691304

Spring-Valve (Exhaust)

$5.99

$

In Stock, Qty 8

0

37

MTD BS-699661

Guard-Flywheel

$8.99

$

Usually ships in 2-12 days

0

40

MTD BS-692194

Retainer-Valve

$5.99

$

In Stock, Qty 18

0

45

MTD BS-690977

Tappet-Valve

$7.99

$

In Stock, only 2 left!

0

46

MTD BS-693404

Camshaft

$73.99

$

In Stock, only 1 left!

0

51

MTD BS-791718

Gasket-Intake

$4.49

$

In Stock, Qty 12

0

55

MTD BS-691422

Housing-Rewind Starter

Note: (Rewind Starter Parts Used With 3MM Diameter Starter Rope)

$45.99

$

In Stock, only 2 left!

0

55

MTD BS-791848

Housing-Rewind Starter

Note: (Rewind Starter Parts Used With 5MM Diameter Starter Rope)

$45.99

$

In Stock, only 1 left!

0

58

MTD BS-693389

Rope-Starter

Note: NLA (Rewind Starter Parts Used With 3MM Diameter Starter Rope)

$9.49

$

In Stock, Qty 8

0

58

MTD BS-66574

Rope-Starter

Note: (Rewind Starter Parts Used With 5MM Diameter Starter Rope)

$7.49

$

Usually ships in 2-12 days

0

60

MTD BS-490652

Grip-Starter Rope

$5.49

$

In Stock, Qty 8

0

78

MTD BS-699205

Screw (Flywheel Guard)

$3.99

$

Usually ships in 2-12 days

0

95

MTD BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

MTD BS-690024

Shaft-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

MTD BS-398185

Kit-Idle Speed (Carburetor)

$7.99

$

Usually ships in 2-12 days

0

104

MTD BS-797622

Pin-Float Hinge

$3.99

$

Usually ships in 2-12 days

0

108A

MTD BS-695807

Valve-Choke

$

$

Not available

109C

MTD BS-790624

Shaft-Choke

$16.99

$

Usually ships in 2-12 days

0

117

MTD BS-697355

Jet-Main(Standard)

$

$

Not available

118

MTD BS-494870

Jet-Main (High Altitude)

$14.99

$

Usually ships in 2-12 days

0

121

MTD BS-792006

Kit-Carburetor Overhaul

$28.99

$

In Stock, Qty 6

0

122

MTD BS-791717

Spacer-Carburetor

$13.99

$

In Stock, only 1 left!

0

125

MTD BS-697354

Carburetor
(Superseded to BS-798653)

$66.99

$

Usually ships in 2-12 days

0

127

MTD BS-691739

Plug-Welch

$4.49

$

In Stock, only 3 left!

0

130

MTD BS-691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

MTD BS-398187

Float-Carburetor

$9.99

$

In Stock, Qty 10

0

134

MTD BS-398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

MTD BS-693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

146

MTD BS-690979

Key-Timing

$3.49

$

In Stock, only 3 left!

0

155

MTD BS-698214

Plate-Cylinder Head

$10.99

$

Usually ships in 2-12 days

0

161A

MTD BS-790631

Base-Air Cleaner(Ultra Low Air Cleaner)

$34.99

$

In Stock, Qty 7

0

163

MTD BS-696024

Gasket-Air Cleaner (Flat Panel Air Cleaner)

$5.99

$

In Stock, Qty 6

0

186

MTD BS-692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

187

MTD 751-10349-16

Line-Fuel

Note: (Cut to Required Length)

$18.99

$

In Stock, Qty 13

0

187A

MTD BS-791867

Line-Fuel (Molded)

$15.99

$

In Stock, only 1 left!

0

187B

MTD BS-791874

Line-Fuel (Molded)

$16.99

$

In Stock, Qty 8

0

188

MTD BS-699479

Screw Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

190

MTD BS-699220

Screw (Fuel Tank)
(Superseded to BS-597133)

$4.99

$

In Stock, Qty 13

0

192

MTD BS-694543

Adjustor-Rocker Arm

$

$

Not available

209

MTD BS-692571

Spring-Governor

$7.49

$

In Stock, only 4 left!

0

209A

MTD BS-691278

Spring-Governor

$7.99

$

In Stock, Qty 6

0

219

MTD BS-693578

Gear-Governor

$26.99

$

In Stock, only 1 left!

0

220

MTD BS-691724

Washer (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

222D

MTD BS-793107

Bracket-Control

$45.99

$

Usually ships in 2-12 days

0

227

MTD BS-692573

Lever-Governor Control

$

$

Not available

238

MTD BS-691300

Valve-Cap

$9.49

$

In Stock, Qty 11

0

265

MTD BS-691024

Clamp-Casing

$3.99

$

Usually ships in 2-12 days

0

267

MTD BS-699492

Screw (Casing Clamp)

$3.99

$

In Stock, only 2 left!

0

268

MTD BS-691025

Casing-Control Wire

Note: (Cut to Required Length)

$

$

Not available

269

MTD BS-691026

Wire-Control

Note: (Cut to Required Length)

$16.99

$

Usually ships in 2-12 days

0

270

MTD BS-691027

Nut (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

MTD BS-691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

271A

MTD BS-694256

Lever-Control

$19.99

$

Usually ships in 2-12 days

0

276

MTD BS-271716

Washer-Sealing

$6.49

$

In Stock, Qty 20+

0

281

MTD BS-793122

Panel-Control

$35.99

$

Usually ships in 2-12 days

0

286

MTD BS-794185

Module-Oil Sensor

$61.99

$

Usually ships in 2-12 days

0

287

MTD BS-699234

Screw (Dipstick Tube)

$3.99

$

In Stock, only 4 left!

0

300

MTD BS-693593

Muffler

$37.99

$

Usually ships in 2-12 days

0

304

MTD BS-699598

Housing-Blower

$90.99

$

In Stock, only 4 left!

0

305

MTD BS-699481

Screw (Blower Housing)

$3.99

$

In Stock, only 4 left!

0

306

MTD BS-693610

Shield-Cylinder

$

$

Not available

307

MTD BS-699234

Screw (Cylinder Shield)

$3.99

$

In Stock, only 4 left!

0

309

MTD BS-694504

Motor-Starter

Note: NLA

$375.99

$

In Stock, only 1 left!

0

310

MTD BS-690323

Screw (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

MTD BS-497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

332A

MTD BS-792723

Nut (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

MTD BS-796964

Armature-Magneto

$55.99

$

In Stock, only 2 left!

0

334

MTD BS-699477

Screw (Magneto Armature)

$3.99

$

In Stock, only 1 left!

0

337

MTD 759-3336

Plug-Spark(Resistor)
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

337

MTD BS-691043

Plug-Spark(EMS)

$6.49

$

In Stock, Qty 20+

0

356A

MTD BS-692390

Wire-Stop

$10.99

$

Usually ships in 2-12 days

0

358B

MTD BS-791797

Gasket Set-Engine

$67.99

$

In Stock, only 3 left!

0

363

MTD BS-19203

Puller-Flywheel

Note: NLA

$23.99

$

In Stock, only 1 left!

0

364

MTD BS-695693

Terminal-Oil Plug

$13.99

$

Usually ships in 2-12 days

0

365

MTD BS-699484

Screw (Carburetor)

$3.99

$

In Stock, Qty 15

0

383

MTD BS-19576S

Wrench-Spark Plug

$5.99

$

In Stock, only 4 left!

0

415

MTD BS-693463

Plug

$3.99

$

In Stock, only 1 left!

0

425A

MTD BS-699492

Screw (Air Cleaner Cover)

$3.99

$

In Stock, only 2 left!

0

427

MTD BS-694255

Nut (Control Bracket)

Note: NLA

$3.49

$

Usually ships in 2-12 days

0

445

MTD BS-491588S

Filter-Air Cleaner Cartridge

$6.49

$

In Stock, Qty 20+

0

455

MTD BS-692591

Cup-Flywheel
(Superseded to BS-591302)

$11.99

$

Usually ships in 2-12 days

0

456

MTD BS-692299

Plate-Pawl Friction

$4.99

$

In Stock, Qty 20+

0

459

MTD BS-281505S

Pawl-Ratchet

$3.49

$

In Stock, Qty 20+

0

474

MTD BS-694457

Alternator

$

$

Not available

504

MTD BS-694254

Washer Set-Friction

Note: NLA

$10.99

$

Usually ships in 2-12 days

0

505

MTD BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 11

0

510

MTD BS-499308

Drive-Starter

$80.99

$

Usually ships in 2-12 days

0

513

MTD BS-692024

Drive-Clutch

$21.99

$

Usually ships in 2-12 days

0

523

MTD BS-790546

Dipstick
(Superseded to BS-798468)

$24.99

$

Usually ships in 2-12 days

0

524

MTD BS-281370S

Seal-Dipstick Tube

$8.49

$

In Stock, Qty 20+

0

544

MTD BS-692966

Armature-Starter

$70.99

$

Usually ships in 2-12 days

0

552

MTD BS-231078

Bushing-Governor Crank

$

$

Not available

562

MTD BS-691119

Bolt (Governor Control Lever)

$4.49

$

In Stock, Qty 19

0

564

MTD BS-699491

Screw (Control Cover)

$3.99

$

In Stock, only 3 left!

0

564A

MTD BS-699206

Screw (Control Cover)

$3.99

$

In Stock, only 4 left!

0

597

MTD BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, only 4 left!

0

601

MTD BS-791850

Clamp-Hose

$3.49

$

In Stock, Qty 20+

0

604

MTD BS-697326

Cover-Control

$30.99

$

In Stock, only 1 left!

0

608

MTD BS-693394

Starter-Rewind
(Superseded to BS-591301)

$56.99

$

In Stock, only 1 left!

0

608

MTD BS-791670

Starter-Rewind
(Superseded to BS-591301)

$56.99

$

In Stock, only 1 left!

0

613

MTD BS-791972

Screw (Muffler)

$4.49

$

In Stock, only 2 left!

0

615

MTD BS-692576

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

MTD BS-692547

Crank-Governor

$9.49

$

Usually ships in 2-12 days

0

619

MTD BS-699481

Screw (Cylinder Head Plate)

$3.99

$

In Stock, only 4 left!

0

621

MTD BS-692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

632

MTD BS-693408

Spring/Link- Mechanical Governor

$8.99

$

In Stock, Qty 11

0

633

MTD BS-693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 3 left!

0

633A

MTD BS-691321

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

635

MTD BS-692076

Boot-Spark Plug

$5.49

$

In Stock, only 2 left!

0

635A

MTD BS-692927

Boot-Spark Plug
(Superseded to BS-798619)

$6.49

$

In Stock, only 1 left!

0

663

MTD BS-699206

Screw (Control Panel)

$3.99

$

In Stock, only 4 left!

0

668

MTD BS-694257

Spacer

$4.99

$

Usually ships in 2-12 days

0

675

MTD BS-691261

Washer (Brush Retainer)

Note: NLA

$3.99

$

In Stock, only 4 left!

0

676

MTD BS-796956

Deflector-Muffler

$10.99

$

In Stock, only 1 left!

0

677

MTD BS-690661

Screw (Muffler Deflector)

$3.49

$

In Stock, Qty 20+

0

689

MTD BS-691855

Spring-Friction

$4.49

$

In Stock, Qty 7

0

692

MTD BS-690572

Spring-Detent
(Superseded to BS-590931)

$5.49

$

In Stock, only 1 left!

0

697

MTD BS-790537

Screw (Starter Motor)

$

$

Not available

718

MTD BS-690959

Pin-Locating

$6.99

$

Usually ships in 2-12 days

0

725

MTD BS-792874

Shield-Heat

$15.99

$

Usually ships in 2-12 days

0

728

MTD BS-699632

Screw (Heat Shield)

$3.99

$

Usually ships in 2-12 days

0

741

MTD BS-695087

Gear-Timing

$18.99

$

Usually ships in 2-12 days

0

742

MTD BS-692564

Retainer-E Ring

$4.49

$

In Stock, only 1 left!

0

746

MTD BS-790278

Gear-Idler

$17.99

$

Usually ships in 2-12 days

0

773

MTD BS-694258

Retainer

Note: NLA

$4.49

$

Usually ships in 2-12 days

0

783

MTD BS-692353

Gear-Pinion

Note: NLA

$23.99

$

Usually ships in 3-6 days

0

797

MTD BS-691029

Nut (Brush Retainer)

Note: NLA

$5.49

$

Usually ships in 2-12 days

0

799

MTD BS-699202

Screw (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

801

MTD BS-694482

Cap-Drive

$83.99

$

Usually ships in 2-12 days

0

802

MTD BS-691286

Cap-End

Note: NLA

$26.99

$

Usually ships in 2-12 days

0

803

MTD BS-693757

Housing-Starter

Note: NLA

$25.99

$

Usually ships in 2-12 days

0

830

MTD BS-694544

Stud-Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

832

MTD BS-693583

Guard-Muffler
(Superseded to BS-593953)

$45.99

$

In Stock, only 3 left!

0

836

MTD BS-699203

Screw (Muffler Guard)

$3.99

$

In Stock, Qty 6

0

836A

MTD BS-699632

Screw (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

842

MTD BS-691031

Seal-O Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 12

0

847

MTD BS-790545

Dipstick/Tube Assembly
(Superseded to BS-798468)

$24.99

$

Usually ships in 2-12 days

0

851

MTD BS-493880S

Terminal-Spark Plug

$3.49

$

In Stock, Qty 20+

0

868

MTD BS-692044

Seal-Valve

$

$

Not available

883

MTD BS-691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 11

0

914

MTD BS-699481

Screw (Rocker Cover)(Bottom)

$3.99

$

In Stock, only 4 left!

0

914A

MTD BS-692557

Screw (Rocker Cover) (Top)

$3.99

$

Usually ships in 2-12 days

0

914B

MTD BS-697551

Screw (Rocker Cover) (Center)

$3.49

$

In Stock, Qty 20+

0

951

MTD BS-790630

Lever-Choke

$6.99

$

In Stock, only 3 left!

0

957

MTD BS-795027

Cap-Fuel Tank

$10.99

$

In Stock, only 2 left!

0

958

MTD BS-698180

Valve-Fuel Shut Off

$11.99

$

In Stock, Qty 9

0

967

MTD BS-493537S

Filter-Pre Cleaner (Flat Panel)

$6.49

$

In Stock, Qty 20+

0

968B

MTD BS-791082

Cover-Air Cleaner (Ultra Low Air Cleaner)

$20.99

$

In Stock, Qty 5

0

971

MTD BS-690370

Screw (Air Cleaner Base)

$3.99

$

In Stock, only 4 left!

0

972

MTD BS-799863

Tank-Fuel

$89.99

$

In Stock, Qty 18

0

975

MTD BS-796611

Bowl-Float

$6.49

$

In Stock, Qty 18

0

977

MTD BS-792006

Gasket Set-Carburetor

$28.99

$

In Stock, Qty 6

0

993

MTD BS-694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 20+

0

1005A

MTD BS-794273

Fan-Flywheel

$16.99

$

In Stock, Qty 9

0

1022

MTD BS-691890

Gasket-Rocker Cover

$7.99

$

In Stock, Qty 10

0

1023

MTD BS-499924

Cover-Rocker Arm

$

$

Not available

1026

MTD BS-790287

Rod-Push

$11.99

$

In Stock, only 2 left!

0

1029

MTD BS-691230

Arm-Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

MTD BS-691343

Guide-Push Rod

$9.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From An Authorized Briggs & Stratton Sevice Dealer)

$

$

Not available

1051

MTD BS-691265

Ring-Retaining

$5.49

$

In Stock, Qty 7

0

1052

MTD BS-790141

Sensor-Oil

$61.99

$

Usually ships in 2-12 days

0

1090

MTD BS-691293

Retainer-Brush

$29.99

$

In Stock, Qty 6

0

1095A

MTD BS-791798

Gasket Set-Valve

$33.99

$

In Stock, only 3 left!

0

1119

MTD BS-699772

Screw (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1210

MTD BS-498144

Pulley/Spring Assembly (Pulley)

Note: (Rewind Starter Parts Used With 3MM Diameter Starter Rope)

$19.99

$

In Stock, only 4 left!

0

1210

MTD BS-791849

Pulley/Spring Assembly (Pulley)

Note: (Rewind Starter Parts Used With 5MM Diameter Starter Rope)

$27.99

$

In Stock, only 1 left!

0

1211

MTD BS-498144

Pulley/Spring Assembly(Spring)

Note: (Rewind Starter Parts Used With 3MM Diameter Starter Rope)

$19.99

$

In Stock, only 4 left!

0

1211

MTD BS-791849

Pulley/Spring Assembly(Spring)

Note: (Rewind Starter Parts Used With 5MM Diameter Starter Rope)

$27.99

$

In Stock, only 1 left!

0

1305

MTD BS-699691

Screw (Oil Sensor Module)

$3.99

$

Usually ships in 2-12 days

0

1319

MTD BS-794467

Label-Warning

$20.99

$

Usually ships in 2-12 days

0
