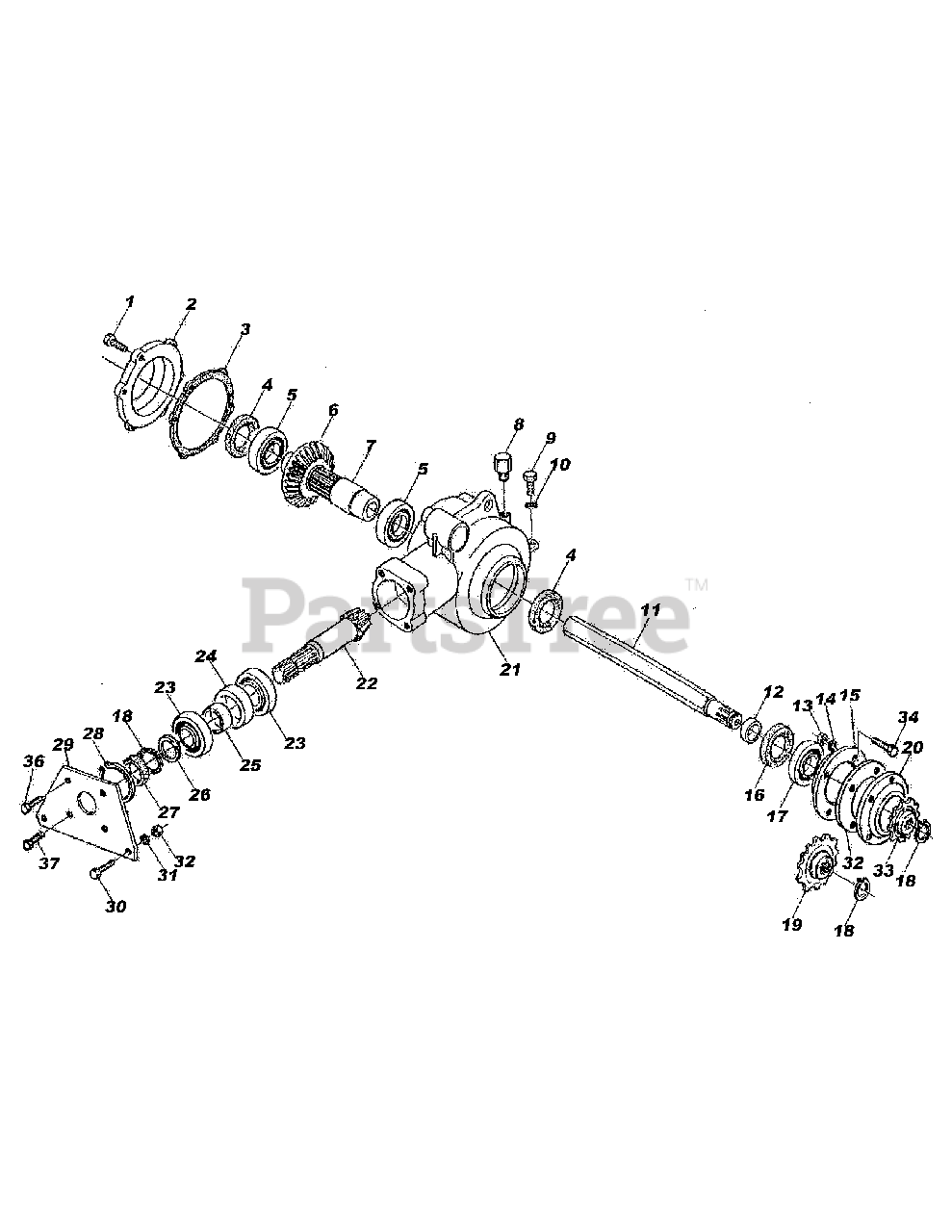

RT-42 (59A40030727) - Cub Cadet Yanmar Tractor 42" Rotary Tiller Gearbox Version 1 Parts Diagram

Tractor 42" Rotary Tiller

Gearbox Version 1 Parts Diagram

  • Title

1

Cub Cadet YS-000-1046

Bolt 10 x 20
(Superseded to BF-000-1046)

$

$

Not available

2

Cub Cadet YS-002-2178

Gear Cover
(Superseded to BF-002-2178)

$

$

Not available

3

Cub Cadet YS-002-2180

Gasket
(Superseded to BF-002-2180)

$

$

Not available

4

Cub Cadet YS-000-2133

Oil Seal 50.68.10
(Superseded to BF-000-2133)

$

$

Not available

5

Cub Cadet YS-003-4178

Bearing 6010
(Superseded to BF-003-4178)

$

$

Not available

6

Cub Cadet YS-002-1176

Bevel Gear
(Superseded to BF-002-1176)

$

$

Not available

7

Cub Cadet YS-003-4175

Shaft Coupling
(Superseded to BF-003-4175)

$

$

Not available

8

Cub Cadet YS-000-1107

Breather Cap
(Superseded to BF-000-1107)

$

$

Not available

9

Cub Cadet YS-002-3265

Bolt M12 x 40
(Superseded to BF-002-3265)

$

$

Not available

10

Cub Cadet YS-000-2038

Lock Washer M12

$

$

Not available

11

Cub Cadet YS-023-4166

Hexagonal Shaft

Note: (42'' Tiller)

$

$

Not available

11

Cub Cadet YS-053-4166

Hexagonal Shaft

Note: (66'' Tiller)

$

$

Not available

12

Cub Cadet YS-000-2049

Spacer
(Superseded to BF-000-2049)

$

$

Not available

13

Cub Cadet YS-000-1279

Nut M10
(Superseded to BF-000-1279)

$

$

Not available

14

Cub Cadet YS-000-1280

Lock Washer M10
(Superseded to BF-000-1280)

$

$

Not available

15

Cub Cadet YS-003-0092

Bearing Cover Inner
(Superseded to BF-003-0092)

$

$

Not available

16

Cub Cadet YS-003-4159

Oil Seal 45.60.10
(Superseded to BF-003-4159)

$

$

Not available

17

Cub Cadet YS-000-1061

Bearing 6307
(Superseded to BF-000-1061)

$

$

Not available

18

Cub Cadet YS-004-2122

Snap Ring M35 Ext.
(Superseded to BF-004-2122)

$

$

Not available

19

Cub Cadet YS-003-4131

Sprocket Z14 Standard
(Superseded to BF-003-4131)

$

$

Not available

20

Cub Cadet YS-003-4122

Bearing Cover Outer
(Superseded to BF-003-4122)

$

$

Not available

21

Cub Cadet YS-002-2170

Gear Box Housing Cast
(Superseded to BF-002-2170)

$

$

Not available

22

Cub Cadet YS-002-1177

Pinion Gear
(Superseded to BF-002-1177)

$

$

Not available

23

Cub Cadet YS-002-5332

Bearing 6207
(Superseded to BF-002-5332)

$

$

Not available

24

Cub Cadet YS-003-4197

Spacer - Rear Outer
(Superseded to BF-003-4197)

$

$

Not available

25

Cub Cadet YS-003-4198

Spacer - Rear Inner
(Superseded to BF-003-4198)

$

$

Not available

26

Cub Cadet YS-003-4196

Spacer - Ring
(Superseded to BF-003-4196)

$

$

Not available

27

Cub Cadet YS-503-199B

Oil Seal 35.72.10

$

$

Not available

28

Cub Cadet YS-002-5329

Snap Ring 72 Inner
(Superseded to BF-002-5329)

$

$

Not available

29

Cub Cadet YS-003-0218

Metal Cover
(Superseded to BF-003-0218)

$

$

Not available

30

Cub Cadet YS-000-7255

Bolt M12 x 35
(Superseded to BF-000-7255)

$

$

Not available

31

Cub Cadet YS-000-1077

Lock Washer 12mm
(Superseded to BF-000-1077)

$

$

Not available

32

Cub Cadet YS-000-3038

Nut 12mm
(Superseded to BF-000-1106)

$

$

Not available

33

Cub Cadet YS-003-4134

Sprocket Z11
(Superseded to BF-003-4134)

$

$

Not available

34

Cub Cadet YS-000-1278

Bolt M10 x 30
(Superseded to BF-000-1278)

$

$

Not available

35

Cub Cadet YS-003-4121

Disk with Holes
(Superseded to BF-003-4121)

$

$

Not available

36

Cub Cadet YS-000-1009

Bolt M10 x 35
(Superseded to BF-000-1009)

$

$

Not available

37

Cub Cadet YS-000-1008

Bolt M10 x 30
(Superseded to BF-000-1008)

$

$

Not available

Cub Cadet YS-050-0606

Gear Box Complete
(Superseded to BF-050-0606)

Note: NOT SHOWN

$

$

Not available
