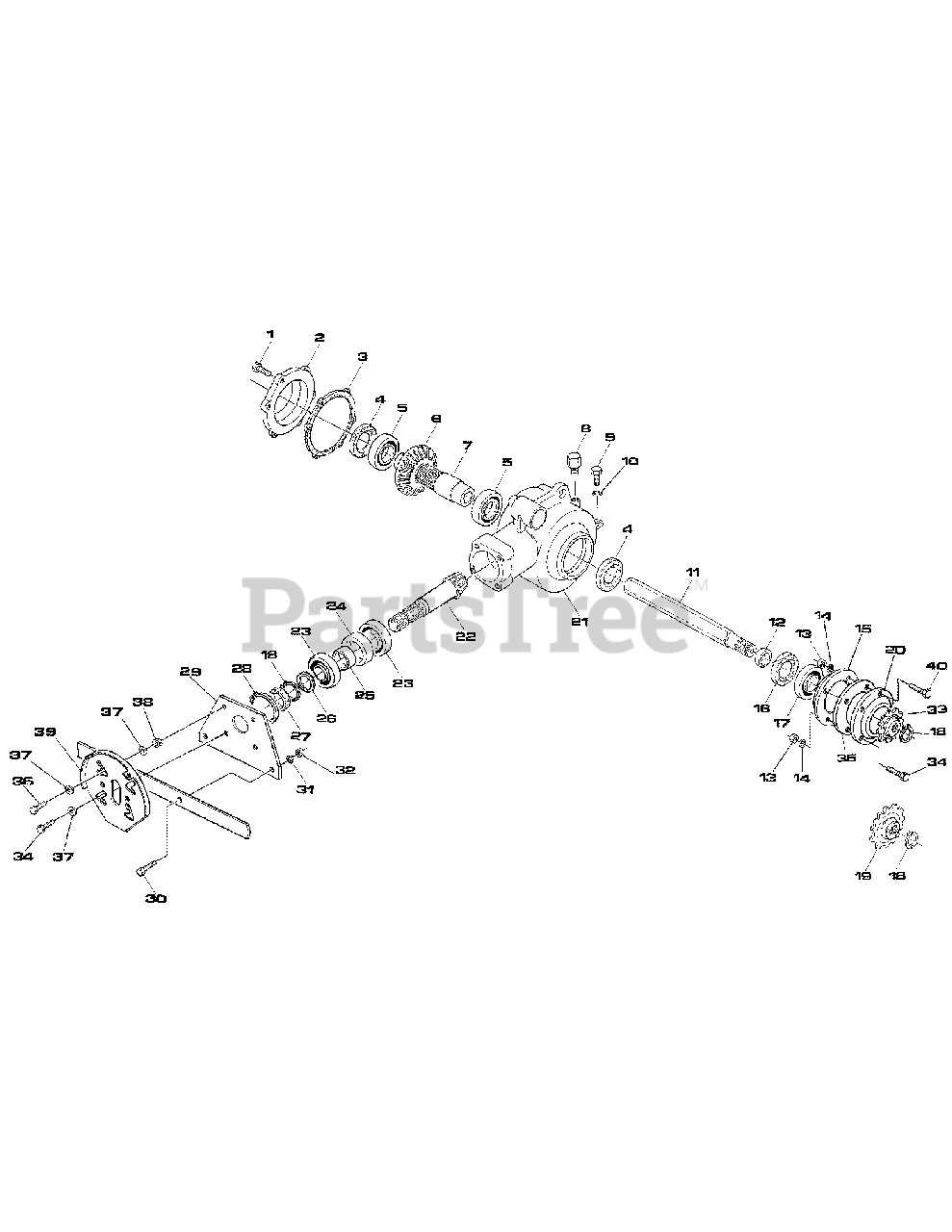

RT-42 (59A40030727) - Cub Cadet Yanmar Tractor 42" Rotary Tiller Gearbox Version 2 Parts Diagram

Tractor 42" Rotary Tiller

Gearbox Version 2 Parts Diagram

  • Title

1

Cub Cadet YS-000-6349

Bolt TE M10x20
(Superseded to BF-000-6349)

$

$

Not available

2

Cub Cadet YS-002-2178

Gear cover
(Superseded to BF-002-2178)

$

$

Not available

3

Cub Cadet YS-002-2180

Gasket
(Superseded to BF-002-2180)

$

$

Not available

4

Cub Cadet YS-000-2133

Oil seal 50.68.10
(Superseded to BF-000-2133)

$

$

Not available

5

Cub Cadet YS-003-4178

Bearing 6010
(Superseded to BF-003-4178)

$

$

Not available

6

Cub Cadet YS-002-1176

Ring gear
(Superseded to BF-002-1176)

$

$

Not available

7

Cub Cadet YS-003-4175

Shaft coupling
(Superseded to BF-003-4175)

$

$

Not available

8

Cub Cadet YS-000-1107A

Breather cap

$

$

Not available

9

Cub Cadet YS-002-3265

Bolt TE M12x40
(Superseded to BF-002-3265)

$

$

Not available

10

Cub Cadet YS-000-2265

Flat washer Ø12
(Superseded to BF-000-2265)

$

$

Not available

11

Cub Cadet YS-023-4166

Hexagonal shaft RT42

$

$

Not available

11

Cub Cadet YS-053-4166

Hexagonal shaft RT66

$

$

Not available

12

Cub Cadet YS-000-2049

Spacer
(Superseded to BF-000-2049)

$

$

Not available

13

Cub Cadet YS-000-1279

Nut M10
(Superseded to BF-000-1279)

$

$

Not available

14

Cub Cadet YS-000-1280

Spring washer Ø10
(Superseded to BF-000-1280)

$

$

Not available

15

Cub Cadet YS-003-0092

Cover
(Superseded to BF-003-0092)

$

$

Not available

16

Cub Cadet YS-003-4159

Oil seal 45.60.10
(Superseded to BF-003-4159)

$

$

Not available

17

Cub Cadet YS-000-1061

Bearing 6307
(Superseded to BF-000-1061)

$

$

Not available

18

Cub Cadet YS-004-2122

Outer snap ring Ø35
(Superseded to BF-004-2122)

$

$

Not available

19

Cub Cadet YS-003-4131

Sprocket Z14
(Superseded to BF-003-4131)

$

$

Not available

20

Cub Cadet YS-003-4122

Left outer cover
(Superseded to BF-003-4122)

$

$

Not available

21

Cub Cadet YS-002-2170

Gearbox
(Superseded to BF-002-2170)

$

$

Not available

22

Cub Cadet YS-002-1177

Pinion gear
(Superseded to BF-002-1177)

$

$

Not available

23

Cub Cadet YS-002-5332

Bearing 6207
(Superseded to BF-002-5332)

$

$

Not available

24

Cub Cadet YS-003-4197

Outer spacer
(Superseded to BF-003-4197)

$

$

Not available

25

Cub Cadet YS-003-4198

Inner spacer
(Superseded to BF-003-4198)

$

$

Not available

26

Cub Cadet YS-003-4196

Spacer washer
(Superseded to BF-003-4196)

$

$

Not available

27

Cub Cadet YS-003-0211

Oil seal 35.72.10
(Superseded to BF-003-0211)

$

$

Not available

28

Cub Cadet YS-002-5329

Inner snap ring Ø72
(Superseded to BF-002-5329)

$

$

Not available

29

Cub Cadet YS-003-0218

Gearbox front cover
(Superseded to BF-003-0218)

$

$

Not available

30

Cub Cadet YS-001-5255

Bolt TE M12x30
(Superseded to BF-001-5255)

$

$

Not available

31

Cub Cadet YS-000-1077

Spring washer Ø12
(Superseded to BF-000-1077)

$

$

Not available

32

Cub Cadet YS-000-3038

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

33

Cub Cadet YS-003-4134

Sprocket Z11
(Superseded to BF-003-4134)

$

$

Not available

34

Cub Cadet YS-000-1278

Bolt TE M10x30
(Superseded to BF-000-1278)

$

$

Not available

35

Cub Cadet YS-003-4121

Disk with holes
(Superseded to BF-003-4121)

$

$

Not available

36

Cub Cadet YS-009-1281

Bolt TE M10x35
(Superseded to BF-009-1281)

$

$

Not available

37

Cub Cadet YS-003-0157

Flat washer Ø10
(Superseded to BF-003-0157)

$

$

Not available

38

Cub Cadet YS-000-1106

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

39

Cub Cadet YS-002-2268

Protection support

$

$

Not available

40

Cub Cadet YS-002-6329

Bolt TE M10x45
(Superseded to BF-002-6329)

$

$

Not available

Cub Cadet YS-050-0606

Gearbox 540 rpm complete
(Superseded to BF-050-0606)

Note: Not shown

$

$

Not available
