RT-45 (21AA40M8710) - Cub Cadet Rear-Tine Tiller (2019) Tine Shield Parts Diagram

Rear-Tine Tiller

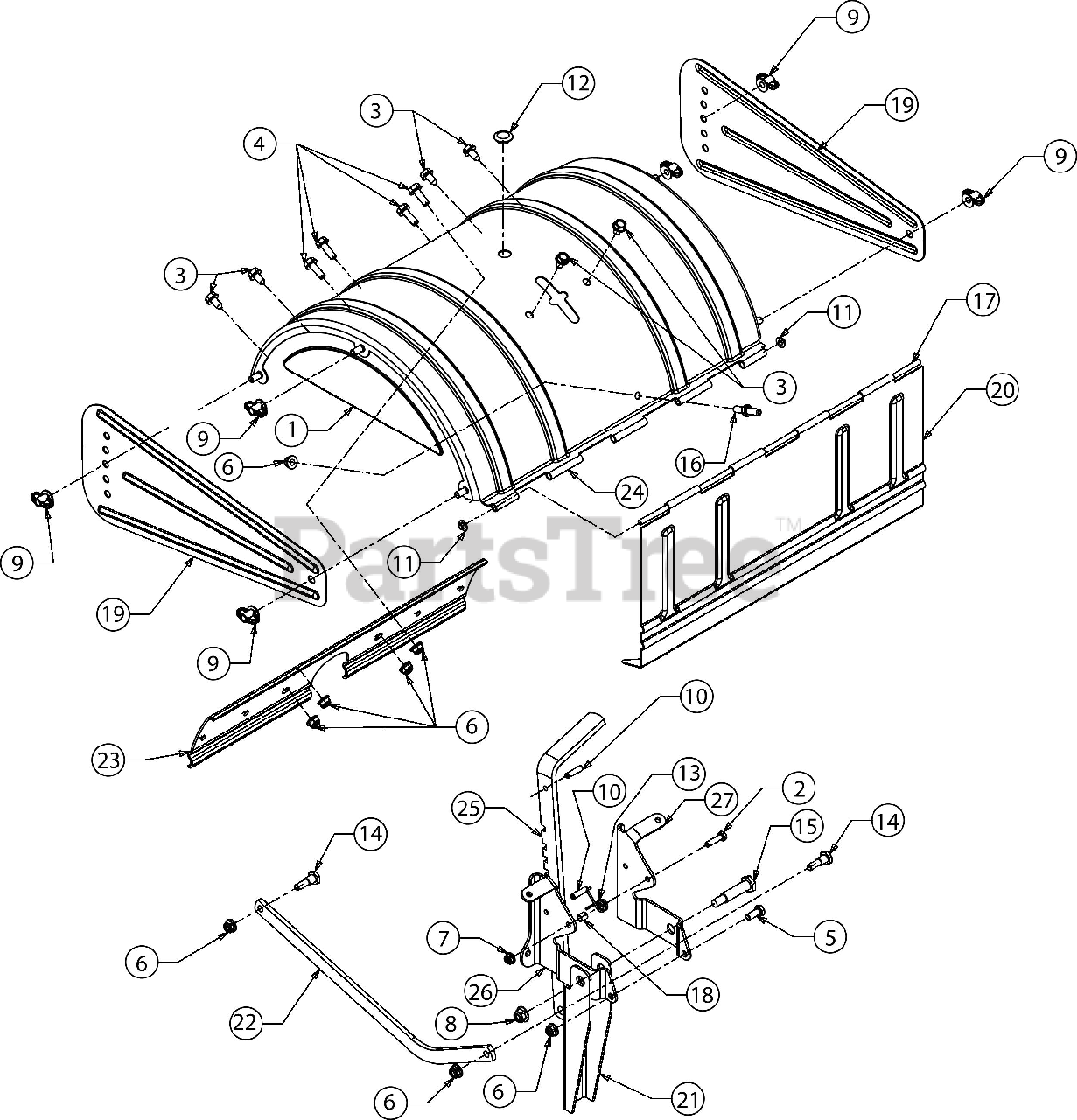

Tine Shield Parts Diagram

  • Title

1

Cub Cadet 686-0044B

END COVER ASSEMBLY

Note: (Choose Color When Ordering)

Variations

Cub Cadet 686-0044B-0638

COVER ASM-END - MTD/TROY-BILT RED (0638)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0709

COVER ASM-END - MASTERCRAFT GREEN (0709)

$72.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-4021

Cover Assembly, End Yellow - CUB YELLOW 2 (4021)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0480

COVER ASM-END - BRILLIANT GREEN (0480)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0606

COVER ASM-END - MAJESTIC ORANGE (0606)

$72.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0637

COVER ASM-END - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0640

COVER ASM-END - CO-OP GREEN (0640)

$72.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0648

COVER ASM-END - TECH GRAY (0648)

$72.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0650

COVER ASM-END - RED METALLIC (0650)

$72.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0662

COVER ASM-END - OYSTER GRAY (0662)

$63.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0691

COVER ASM-END - BLACK JACK (0691)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0721

USE 686-0044B-4044 COVER ASM- - SEARS RED (0721)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-4015

COVER ASM-END - FIRE RED (4015)

$63.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-4044

COVER ASM-END - CRAFTSMAN RED (4044)

$78.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-1307

CLINCH STUD 5/16-18 X .75

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 19

0

3

Cub Cadet 710-0604A

SCREW 5/16-18 X .625

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1238

SCREW 5/16-18 X .875 GR5
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 10

0

5

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0421

WING NUT 5/16-18

$6.49

$

In Stock, Qty 20+

0

10

Cub Cadet 715-0108

SPRING PIN 1/4 X 1.00

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 926-0106

PUSH NUT
(Superseded to 726-0106)

$

$

Not available

12

Cub Cadet 731-05512

DECK HOLE PLUG

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-04320

TORSION SPRING

$4.49

$

In Stock, Qty 14

0

14

Cub Cadet 738-04320

SHOULDER SCREW

$4.99

$

In Stock, only 4 left!

0

15

Cub Cadet 938-0533

SHOULDER BOLT .498 X 1.635:3/8-16
(Superseded to 738-0533)

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 938-0849

SHOULDER SCREW

$9.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 747-0432

TILLER FLAP ROD

$12.99

$

In Stock, only 1 left!

0

18

Cub Cadet 750-05349

ROUND SPACER

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 786-0090A

SIDE SHIELD

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-0090A-4021

Side Shield - CUB YELLOW 2 (4021)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0606

SHIELD-SIDE - MAJESTIC ORANGE (0606)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0637

SHIELD-SIDE - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0638

SHIELD-SIDE - MTD/TROY-BILT RED (0638)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0640

SHIELD-SIDE - CO-OP GREEN (0640)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0648

SHIELD-SIDE - TECH GRAY (0648)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0650

SHIELD-SIDE - RED METALLIC (0650)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0662

SHIELD-SIDE - OYSTER GRAY (0662)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0665

SHIELD-SIDE - YARDMAN GREEN (0665)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0691

SHIELD-SIDE - BLACK JACK (0691)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0721

USE 786-0090A-4044 SHIELD-SID - SEARS RED (0721)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-4015

SHIELD-SIDE - FIRE RED (4015)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-4044

SHIELD-SIDE - CRAFTSMAN RED (4044)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0629

SHIELD-SIDE - SILVER FLAKE (0629)

$

$

Not available

$27.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 786-0113A

REAR TINE SHIELD

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-0113A-0606

SHIELD-REAR TINE - MAJESTIC ORANGE (0606)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0691

SHIELD-REAR TINE - BLACK JACK (0691)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-4021

Rear Tine Shield - CUB YELLOW 2 (4021)

$83.99

$

In Stock, Qty 5

0

Cub Cadet 786-0113A-0640

SHIELD-REAR TINE - CO-OP GREEN (0640)

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0650

SHIELD-REAR TINE - RED METALLIC (0650)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0662

SHIELD-REAR TINE - OYSTER GRAY (0662)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0709

SHIELD-REAR TINE - MASTERCRAFT GREEN (0709)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0721

USE 786-0113A-4044 SHIELD-REA - SEARS RED (0721)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-4015

SHIELD-REAR TINE - FIRE RED (4015)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-4044

SHIELD-REAR TINE - CRAFTSMAN RED (4044)

$78.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 786-04092

REVERSE STOP ARM

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04092-0638

Stop Arm, Rev - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04092-0721

USE 786-04092-4044 ARM:REV:ST - SEARS RED (0721)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04092-4021

ARM:REV:STOP - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04092-4044

ARM:REV:STOP - CRAFTSMAN RED (4044)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

In Stock, only 1 left!

0

22

Cub Cadet 786-04104

DEPTH DRAG BAR

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04104-0638

Depth Drag Bar, MTD Red - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04104-0721

USE 786-04104-4044 BAR:DEPTH - SEARS RED (0721)

$30.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04104-4021

BAR:DEPTH DRAG - CUB YELLOW 2 (4021)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04104-4044

BAR:DEPTH DRAG - CRAFTSMAN RED (4044)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 786-04352A

TINE BRACKET

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04352A-4021

BRACKET-TINE SHIELD - CUB YELLOW 2 (4021)

$29.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04352A-0638

BRACKET-MOUNT TINE - MTD/TROY-BILT RED (0638)

$29.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04352A-0721

USE 786-04352A-4044 BRACKET-M - SEARS RED (0721)

$29.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04352A-4044

BRACKET-MOUNT TINE - CRAFTSMAN RED (4044)

$29.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 786-04355A

TINE SHIELD

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04355A-0638

SHIELD-TINE - MTD/TROY-BILT RED (0638)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04355A-4021

Tine Shield - CUB YELLOW 2 (4021)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04355A-0721

USE 786-04355A-4044 SHIELD-TI - SEARS RED (0721)

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04355A-4044

SHIELD-TINE - CRAFTSMAN RED (4044)

$70.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 786-04356A

DEPTH ADJUSTMENT BRACKET

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04356A-0638

BRACKET-DEPTH ADJU - MTD/TROY-BILT RED (0638)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04356A-4021

BRACKET-DEPTH ADJUST - CUB YELLOW 2 (4021)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04356A-4044

BRACKET-DEPTH ADJU - CRAFTSMAN RED (4044)

$32.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 786-04363

TAIL BRACKET (LH)

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04363-0638

Tail Bracket, LH - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 786-04363-0721

USE 786-04363-4044 BRACKET-TA - SEARS RED (0721)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04363-4021

BRACKET-TAIL LH - CUB YELLOW 2 (4021)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04363-4044

BRACKET-TAIL LH - CRAFTSMAN RED (4044)

$21.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 786-04364

TAIL BRACKET (RH)

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04364-0638

BRACKET-TAIL RH - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 786-04364-0721

USE 786-04364-4044 BRACKET-TA - SEARS RED (0721)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04364-4021

BRACKET-TAIL RH - CUB YELLOW 2 (4021)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04364-4044

BRACKET-TAIL RH - CRAFTSMAN RED (4044)

$21.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0
