RT-45 (21AA40M8710) - Cub Cadet Rear-Tine Tiller (2020) Handle Parts Diagram

Rear-Tine Tiller

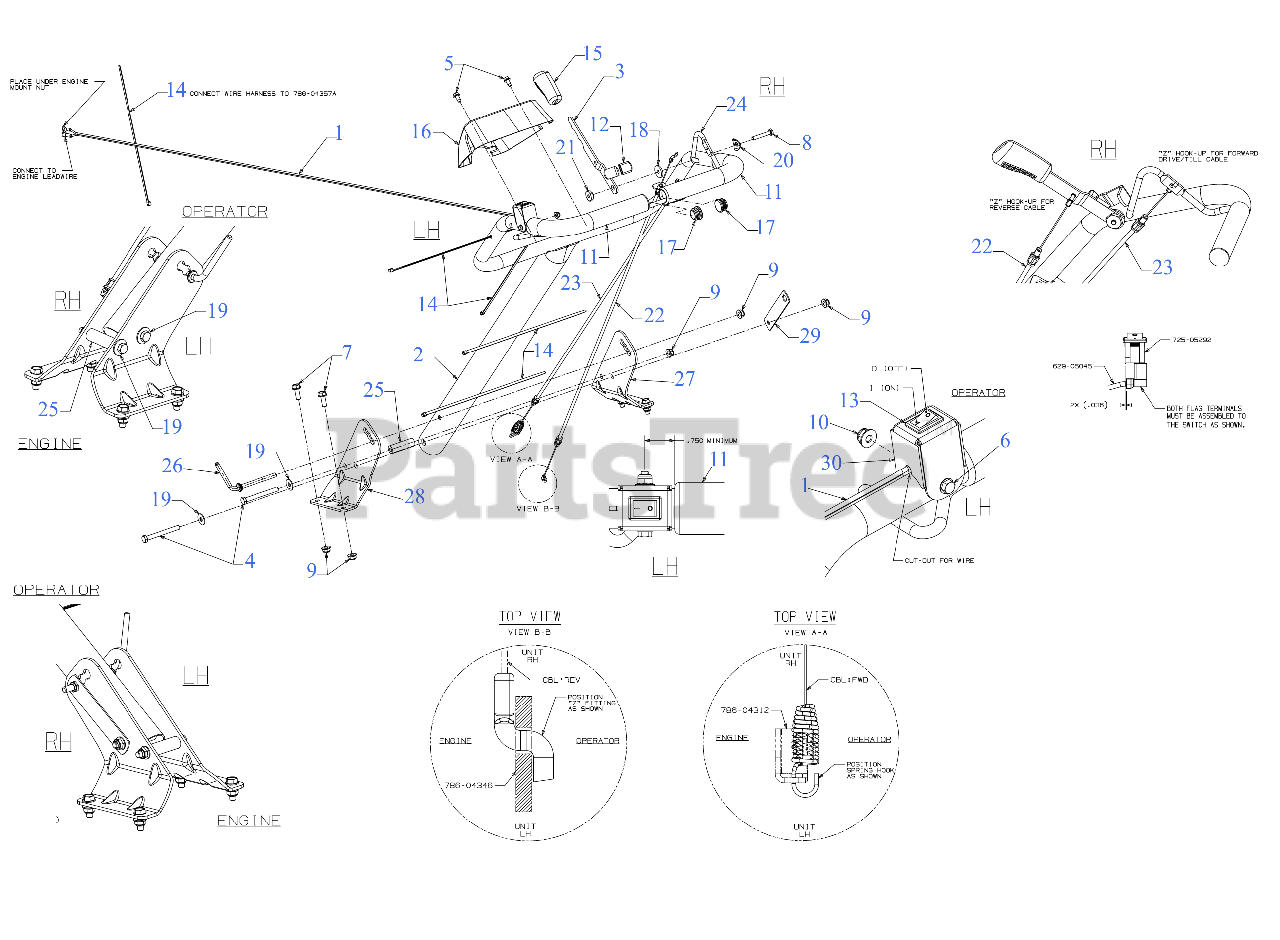

Handle Parts Diagram

  • Title

1

Cub Cadet 629-05045

HARNESS ASSEMBLY

$18.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 649-04098B

UPPER HANDLE ASSEMBLY

Note: (Choose color when ordering)

Variations

Cub Cadet 649-04098B-0638

RED UPPER HANDLE ASSE - MTD/TROY-BILT RED (0638)

$93.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-04098B-4021

YELLOW UPPER HANDLE A - CUB YELLOW 2 (4021)

$100.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-04098B-4044

RED UPPER HANDLE ASSE - CRAFTSMAN RED (4044)

$93.99

$

Usually ships in 3-6 days

0

$81.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 686-04135

REVERSE HANDLE ASSEMBLY

Note: (Choose color when ordering)

Variations

Cub Cadet 686-04135-0638

PTO Handle Assembly, Reverse - MTD/TROY-BILT RED (0638)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-04135-4021

HANDLE ASSY-REV - CUB YELLOW 2 (4021)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-04135-4044

HANDLE ASM-REV - CRAFTSMAN RED (4044)

$23.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0189

HEX SCREW 5/16-18 x 3.00

$5.99

$

In Stock, Qty 5

0

5

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-06774

SCREW HEX HD WASHER (#10-32 x 1.50)

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 10

0

8

Cub Cadet 710-3288

BOLT 1/4-20X1.62 GR5

$6.49

$

In Stock, Qty 15

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04113

HEX NUT

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 720-0278A

FOAM GRIP .970 x 11.0

$21.99

$

In Stock, Qty 5

0

12

Cub Cadet 920-04173

REVERSE HANDLE GRIP

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 725-05292

POSITIVE SWITCH- ON/OFF

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 726-04047

CABLE TIE

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-04735

BRAKE HANDLE GRIP

$19.99

$

In Stock, only 3 left!

0

16

Cub Cadet 731-06253B

HANDLE COVER W/O SWITCH HOLE

$21.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 735-04105A

END PLUG

$5.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 936-0176

FLAT WASHER
(Superseded to 736-0176)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 738-0440

SHOULDER SPACER

$5.49

$

In Stock, Qty 6

0

22

Cub Cadet 946-04504

REVERSE CABLE

$31.99

$

In Stock, Qty 15

0

23

Cub Cadet 946-04506

FORWARD CABLE

$33.99

$

In Stock, Qty 20+

0

24

Cub Cadet 747-04789A

CLUTCH BAIL

Note: (Choose color when ordering)

Variations

Cub Cadet 747-04789A-0637

Clutch Bail - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 750-0885A

SPACER

$10.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 786-0340B

CRANK ADJUST HANDLE

$17.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 786-04344

HANDLE BRACKET (RH)

Note: (Choose color when ordering)

Variations

Cub Cadet 786-04344-4021

BRACKET-HANDLE RH - CUB YELLOW 2 (4021)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04344-0638

BRACKET-HANDLE RH - MTD/TROY-BILT RED (0638)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04344-0721

USE 786-04344-4044 BRACKET-HA - SEARS RED (0721)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04344-4044

BRACKET-HANDLE RH - CRAFTSMAN RED (4044)

$31.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 786-04345

HANDLE BRACKET (LH)

Note: (Choose color when ordering)

Variations

Cub Cadet 786-04345-4021

BRACKET-HANDLE LH - CUB YELLOW 2 (4021)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04345-0638

BRACKET-HANDLE LH - MTD/TROY-BILT RED (0638)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04345-0721

USE 786-04345-4044 BRACKET-HA - SEARS RED (0721)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04345-4044

BRACKET-HANDLE LH - CRAFTSMAN RED (4044)

$31.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 786-04358

RETURN BRACKET

$9.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 786-05252

SWITCH MOUNT BRACKET

Note: (Choose color when ordering)

$10.99

$

Usually ships in 3-6 days

0
