RT-45 (21AA40M8756) - Cub Cadet Rear-Tine Tiller (2016) Tine Shield Assembly Parts Diagram

Rear-Tine Tiller

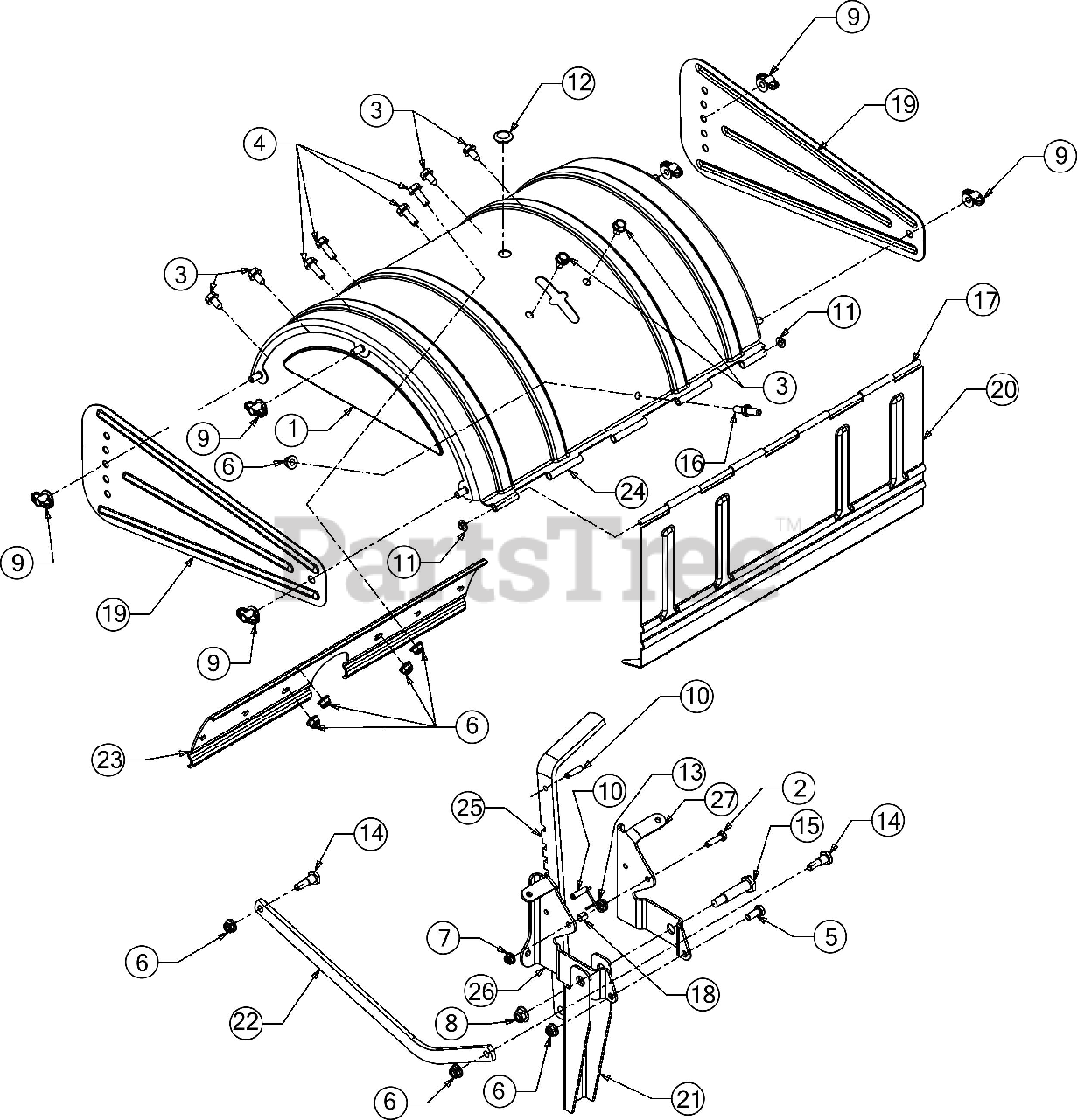

Tine Shield Assembly Parts Diagram

  • Title

1

Cub Cadet 686-0044B-4021

END COVER ASSEMBLY

$78.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-1307

CLINCH STUD 5/16-18 X .75

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 19

0

3

Cub Cadet 710-0604A

SCREW 5/16-18 X .625

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1238

SCREW 5/16-18 X .875 GR5
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 10

0

5

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0421

WING NUT 5/16-18

$6.49

$

In Stock, Qty 20+

0

10

Cub Cadet 715-0108

SPRING PIN 1/4 X 1.00

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 926-0106

PUSH NUT
(Superseded to 726-0106)

$

$

Not available

12

Cub Cadet 731-05512

DECK HOLE PLUG

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-04320

TORSION SPRING

$4.49

$

In Stock, Qty 14

0

14

Cub Cadet 738-04320

SHOULDER SCREW

$4.99

$

In Stock, only 4 left!

0

15

Cub Cadet 938-0533

SHOULDER BOLT .498 X 1.635:3/8-16
(Superseded to 738-0533)

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 938-0849

SHOULDER SCREW

$9.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 747-0432

TILLER FLAP ROD

$12.99

$

In Stock, only 1 left!

0

18

Cub Cadet 750-05349

ROUND SPACER

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 786-0090A-4021

SIDE SHIELD

$33.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 786-0113A-4021

REAR TINE SHIELD

$83.99

$

In Stock, Qty 5

0

21

Cub Cadet 786-04092-4021

REVERSE STOP ARM

$20.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 786-04104-4021

DEPTH DRAG BAR

$34.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 786-04352A-4021

TINE BRACKET

$29.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 786-04355A-4021

TINE SHIELD

$76.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 786-04356A-4021

DEPTH ADJUSTMENT BRACKET

$32.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 786-04363-4021

TAIL BRACKET (LH)

$21.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 786-04364-4021

TAIL BRACKET (RH)

$21.99

$

Usually ships in 3-6 days

0
