RT 5 - Poulan Pro Rear-Tine Tiller MAINFRAME, RIGHT SIDE Parts Diagram

Rear-Tine Tiller

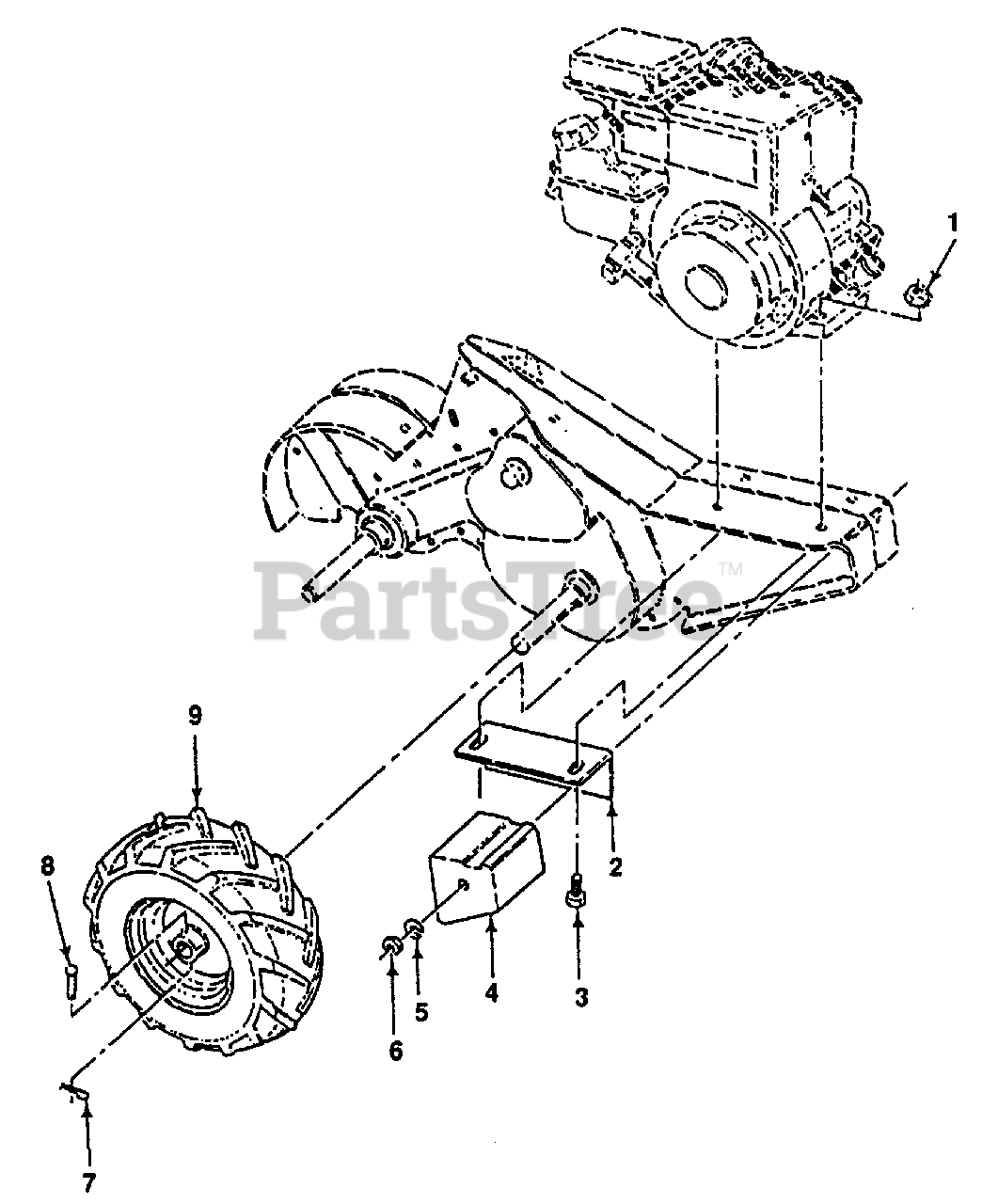

MAINFRAME, RIGHT SIDE Parts Diagram

  • Title

1

Poulan 873510500

Nut, Keps 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

2

Poulan 532102332

Bracket, Reinforcment (AYP part number)
(Superseded to 581864701)

$

$

Not available

3

Poulan 874760524

Bolt, Hex 5/16-18 x 1-1/2 (AYP part number)
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 532102173

Counter Weight, R.H. (AYP part number)

$42.99

$

Usually ships in 3-10 days

0

5

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

6

Poulan 873220600

Nut, Hex 3/8-16 (AYP part number)

$6.49

$

In Stock, only 3 left!

0

7

Poulan 532124788

Clip, Hairpin (AYP part number)
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

8

Poulan 532126875

Rivet, Drilled (AYP part number)

$6.49

$

In Stock, Qty 20+

0

9

Poulan 532102190

Tire (AYP part number)

$93.99

$

Usually ships in 3-10 days

0

Poulan 532124258

Rim (AYP part number)

$122.99

$

Usually ships in 3-10 days

0

Poulan 532124718

Valve, Tire (AYP part number)
(Superseded to 532065139)

$10.99

$

In Stock, Qty 20+

0

Poulan 532121543

Decal, Engine (AYP part number)
(Superseded to 532271948)

Note: Not Shown.

$

$

Not available

Poulan 532110593

Decal, Caution (Engine) (AYP part number)

Note: Not Shown.

$

$

Not available
