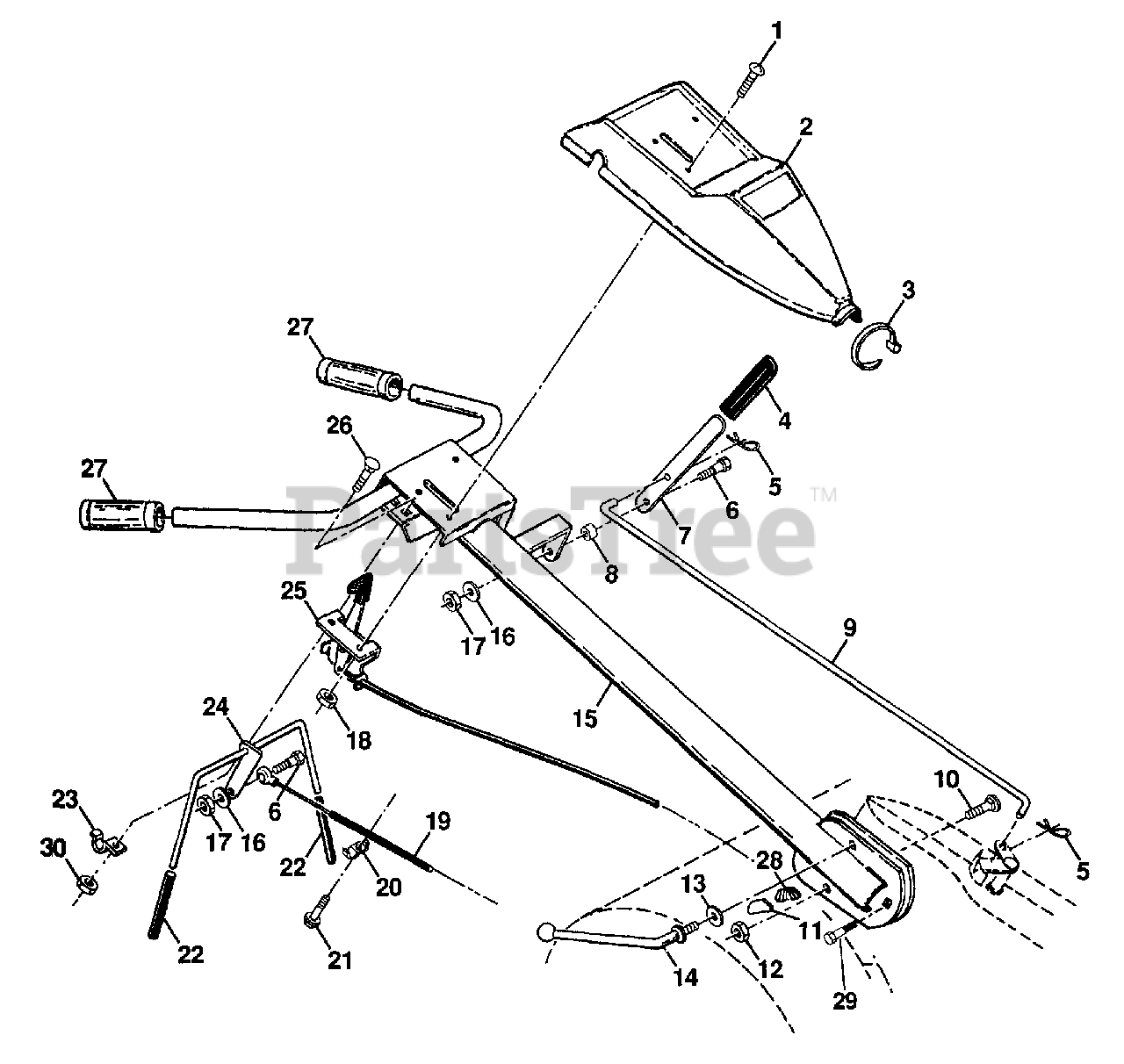

RT 55 A - Poulan Pro Rear-Tine Tiller Handle Assembly Parts Diagram

Rear-Tine Tiller

Handle Assembly Parts Diagram

  • Title

1

Poulan 71191008

Screw, Phd. #10-24
(Superseded to 871191008)

$

$

Not available

2

Poulan 126951X

Panel, Control

$

$

Not available

3

Poulan 532104164

Tie, Cable (AYP part number)

$5.99

$

In Stock, only 1 left!

0

4

Poulan 532124767

Grip, Handle (AYP part number)

$

$

Not available

5

Poulan 124788X

Clip, Hairpin (AYP part number)

$

$

Not available

6

Poulan 81328

Bolt, Shoulder
(Superseded to 532081328)

$5.99

$

In Stock, only 2 left!

0

7

Poulan 109335

Handle, Shift (AYP part number)

$

$

Not available

8

Poulan 532109313

Grommet, Rubber (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

9

Poulan 532109337

Rod, Shift (AYP part number)

$51.99

$

Usually ships in 3-10 days

0

10

Poulan 72110608

Bolt, Carriage 3/8-16 x 1 Gr. 5
(Superseded to 872110608)

$

$

Not available

11

Poulan 532109229

Lock, Handle (AYP part number)

$6.99

$

In Stock, only 2 left!

0

12

Poulan 73930600

Nut, Centerlock 3/8-16
(Superseded to 873680600)

$

$

Not available

13

Poulan 19131611

Washer 13/32 x 1 x 11 Ga.
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

14

Poulan 532109228

Lever, Lock, Handle (AYP part number)

$31.99

$

In Stock, Qty 6

0

15

Poulan 150256

Handle
(Superseded to 180517X428)

$

$

Not available

16

Poulan 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.49

$

In Stock, only 1 left!

0

17

Poulan 73220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

18

Poulan 73731000

Nut, Keps #10-24 UNC

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 147668

Cable, Clutch
(Superseded to 532147668)

$

$

Not available

20

Poulan 9484R

Clip
(Superseded to 532009484)

$5.99

$

In Stock, only 3 left!

0

21

Poulan 86777

Screw, Hex Washer Hd. Slotted #10-24 x 1/2 (AYP part number)

$

$

Not available

22

Poulan 532102604

Grip, Bar, Control (AYP part number)

$

$

Not available

23

Poulan 532102744

Clamp, Bar, Control (AYP part number)

$

$

Not available

24

Poulan 532105216

Bar Assembly, Control (AYP part number)

$

$

Not available

25

Poulan 532127012

Control, Throttle (AYP part number)
(Superseded to 532175769)

$37.99

$

In Stock, only 2 left!

0

26

Poulan 72140404

Bolt, Carriage 1/4-20 UNC x 1/2
(Superseded to 872140404)

$

$

Not available

27

Poulan 9266R

Grip, Handle (AYP part number)

$

$

Not available

28

Poulan 73510400

Nut, Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

29

UNKNOWN

$

$

Not available

30

UNKNOWN

$

$

Not available

31

Poulan 150696

Bolt, Pivot
(Superseded to 532150696)

$5.99

$

In Stock, Qty 9

0
