RT 55 A - Poulan Pro Rear-Tine Tiller Transmission Parts Diagram

Rear-Tine Tiller

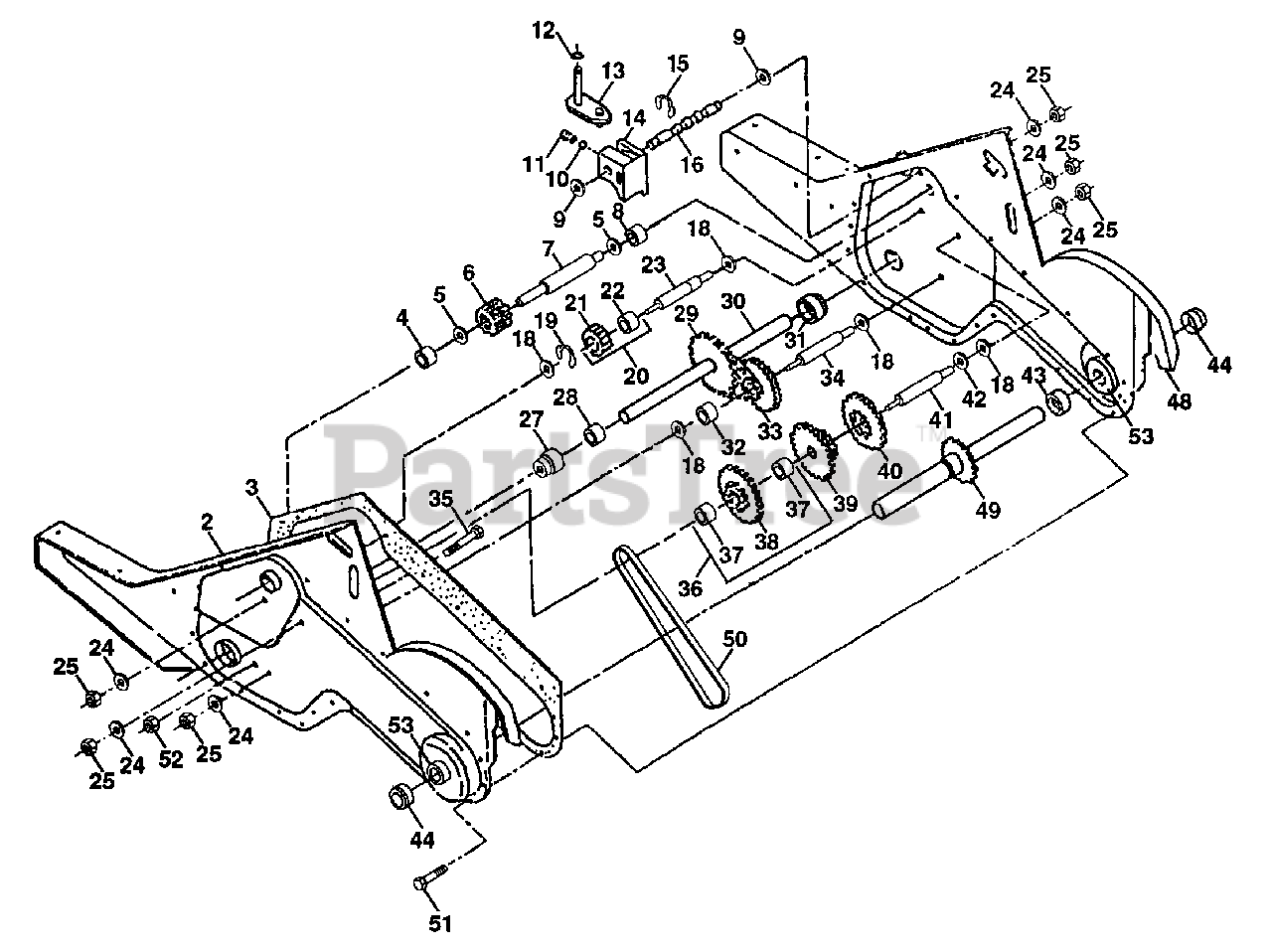

Transmission Parts Diagram

  • Title

1

Poulan 154354

Transmission Assembly
(Superseded to 532181098)

Note: (Includes Key Nos. 2-52)

$849.99

$

Usually ships in 3-10 days

0

2

Poulan 150698

Gearcase, L.H. w/Bearing
(Superseded to 532407383)

Note: (Includes Key No. 4)

$849.99

$

Usually ships in 3-10 days

0

3

Poulan 532106211

Gasket, Gearcase (AYP part number)
(Superseded to 532161963)

$25.99

$

In Stock, Qty 15

0

4

Poulan 5020J

Bearing, Needle
(Superseded to 532005020)

$17.99

$

In Stock, Qty 18

0

5

Poulan 1370H

Washer, Thrust 5/8 x 1.10 x 1/32
(Superseded to 532001370)

$6.49

$

In Stock, Qty 17

0

6

Poulan 137335

Pinion, Input
(Superseded to 586196301)

$

$

Not available

7

Poulan 145101

Shaft, Input
(Superseded to 532145101)

$78.99

$

In Stock, only 3 left!

0

8

Poulan 532124792

Bearing, Needle (AYP part number)
(Superseded to 532004895)

$17.99

$

In Stock, Qty 20+

0

9

Poulan 154467

Washer, Seal
(Superseded to 532154467)

$7.49

$

In Stock, Qty 9

0

10

Poulan 532124697

Ball, Steel (AYP part number)
(Superseded to 532100482)

$7.49

$

In Stock, only 1 left!

0

11

Poulan 100371

Spring, Shift, Fork (AYP part number)

$

$

Not available

12

Poulan 532106160

O-Ring (AYP part number)

$6.49

$

In Stock, only 2 left!

0

13

Poulan 142145

Arm, Shift
(Superseded to 532142145)

$

$

Not available

14

Poulan 8353J

Fork, Shift
(Superseded to 532008353)

$34.99

$

In Stock, Qty 10

0

15

Poulan 12000039

Ring, Klip
(Superseded to 812000039)

$6.49

$

In Stock, Qty 12

0

16

Poulan 154466

Shaft, Shift
(Superseded to 532154466)

$5.99

$

In Stock, Qty 6

0

18

Poulan 4358J

Washer
(Superseded to 532004358)

$7.49

$

Usually ships in 3-10 days

0

19

Poulan 12000040

Ring, Klip
(Superseded to 812000040)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 532102114

Gear, Assembly, Reverse Idler

Note: (Includes Key Nos. 21 and 22)

$

$

Not available

21

Poulan 102115

Gear, Reverse Idler (AYP part number)

$

$

Not available

22

Poulan 6803J

Bearing, Needle
(Superseded to 532006803)

$10.99

$

In Stock, only 4 left!

0

23

Poulan 532102111

Shaft, Reverse Idler (AYP part number)

$18.99

$

In Stock, only 1 left!

0

24

Poulan 10040700

Washer, Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

25

Poulan 73610700

Nut, Hex 7/16-20
(Superseded to 873610700)

$7.49

$

Usually ships in 3-10 days

0

27

Poulan 143009

Bearing, Shaft, Ground Drive L.H.
(Superseded to 532431219)

$

$

Not available

28

Poulan 532106390

Spacer 0.765 x 1.125 x 1.23 (AYP part number)

$4.99

$

In Stock, only 1 left!

0

29

Poulan 532102134

Chain #35-50 Pitch (AYP part number)

$31.99

$

In Stock, Qty 20+

0

30

Poulan 150737

Ground Shaft Assembly
(Superseded to 532150737)

$

$

Not available

31

Poulan 143008

Bearing, Shaft, Ground Drive R.H.
(Superseded to 532143008)

$

$

Not available

32

Poulan 532106388

Spacer 0.70 x 1.00 x 1.150 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

33

Poulan 532102121

Sprocket and Gear Assembly (AYP part number)

$

$

Not available

34

Poulan 532102112

Shaft, Reduction (2nd) (AYP part number)

$27.99

$

Usually ships in 3-10 days

0

35

Poulan 102101

Screw, Whiz, Lock 5/16-18 x 3-1/2 (AYP part number)

$

$

Not available

36

Poulan 154355

Sprocket Assembly w/Bearing
(Superseded to 532154355)

Note: (Includes Key Nos. 37 and 38)

$

$

Not available

37

Poulan 532124791

Bearing, Needle (AYP part number)
(Superseded to 532004422)

$6.49

$

In Stock, Qty 11

0

38

Poulan 154356

Sprocket, Tine
(Superseded to 532154355)

$

$

Not available

39

Poulan 532105345

Gear, Cluster, Red 1st & 2nd (AYP part number)
(Superseded to 532131527)

$46.99

$

Usually ships in 3-10 days

0

40

Poulan 532105346

Gear, Reverse (AYP part number)

$27.99

$

Usually ships in 3-10 days

0

41

Poulan 8358J

Shaft, Reduction (1st)
(Superseded to 532008358)

$14.99

$

Usually ships in 3-10 days

0

42

Poulan 4220R

Washer, Thrust
(Superseded to 532004220)

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 532106146

Spacer 1.01 x 1.75 x 0.760

$34.99

$

In Stock, only 1 left!

0

44

Poulan 155236

Seal Asm. Oil
(Superseded to 532155236)

$7.49

$

In Stock, Qty 10

0

48

Poulan 150700

Gearcase, R.H. w/Bearing

Note: (Includes Key No. 8)

$

$

Not available

49

Poulan 132688

Shaft, Tine
(Superseded to 532432058)

$

$

Not available

50

Poulan 532106147

Chain, Roller #50-50 Pitch (AYP part number)

$66.99

$

In Stock, Qty 5

0

51

Poulan 17720408

Screw 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

52

Poulan 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 122204

Kit, Bearing (AYP part number)

$

$

Not available

Poulan 6066J

Grease, Plastilube #1
(Superseded to 585517301)

$

$

Not available
