RT 600 - Toro Riding Trencher Traction Unit (2012) BACKFILL BLADE ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

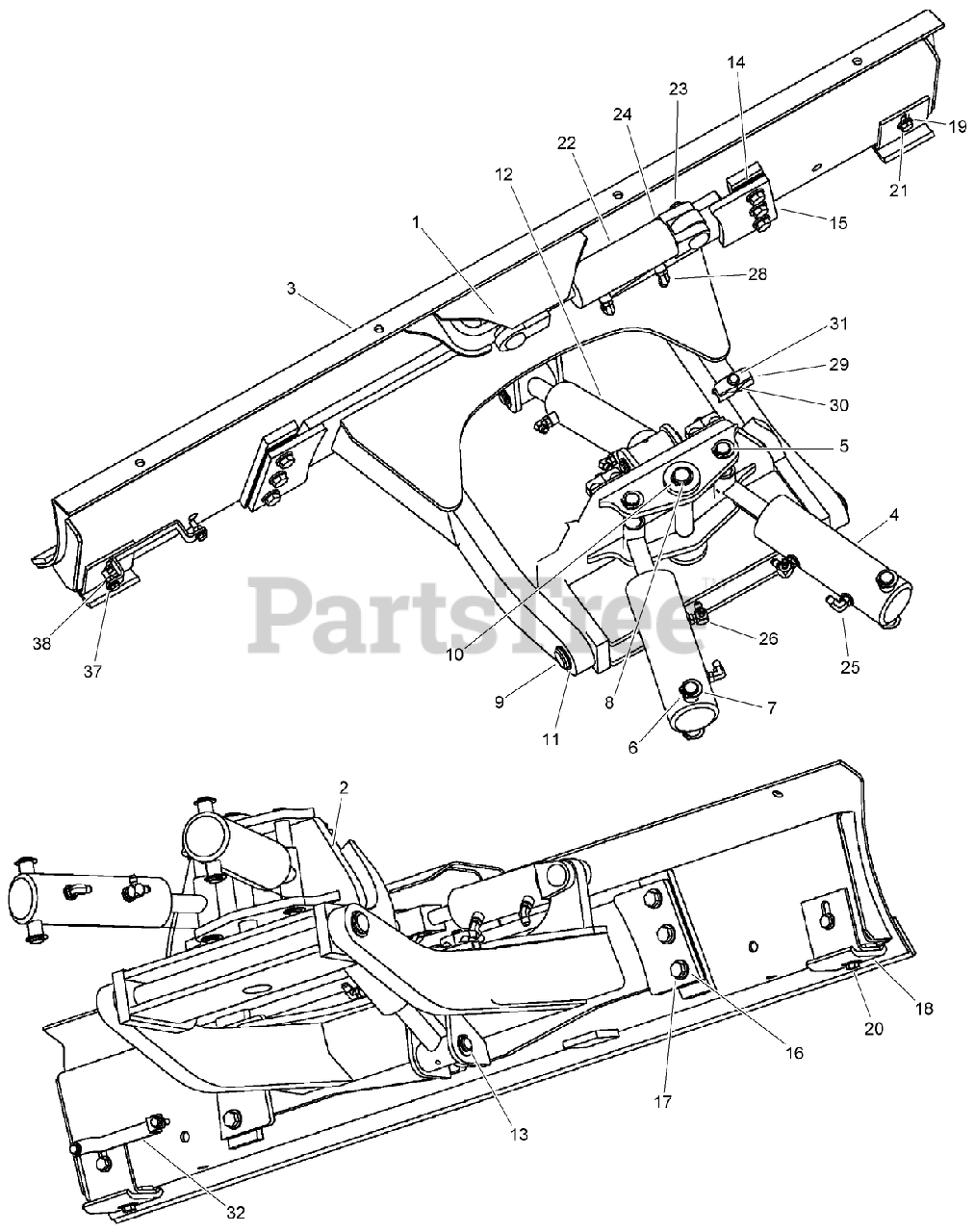

BACKFILL BLADE ASSEMBLY Parts Diagram

  • Title

Toro AU125294

ASM-Backfill Blade

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU103984A1

WELDMENT-Backfill Blade Frame

$

$

Currently unavailable

2

Toro AU125298

WELDMENT-Backfill Blade Pivot

$

$

Currently unavailable

3

Toro AUH673758

WELDMENT-Backfill Blade
(Superseded to AUH673758-03)

$

$

Not available

4

Toro AU103989A1

HYD CYLINDER ASM

$

$

Not available

5

Toro AU125503

PIN-LINK

$

$

Currently unavailable

6

Toro AU125502

PIN-LINK

$

$

Currently unavailable

7

Toro AUH753244

RING-Retainer
(Superseded to 32151-36)

$4.99

$

In Stock, Qty 20+

0

8

Toro AU125547

PIN-Pivot

$

$

Currently unavailable

9

Toro AU103993A1

PIN-Frame

$428.99

$

Usually ships in 3-6 days

0

10

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$5.49

$

Usually ships in 3-6 days

0

11

Toro AUD25279

RING

$22.99

$

Usually ships in 3-6 days

0

12

Toro AUH674312

HYD CYLINDER ASM

$

$

Not available

13

Toro AUH437684

PIN-CYLINDER

$79.99

$

Usually ships in 3-6 days

0

14

Toro AUH438278

SHIM-Retainer

$

$

Currently unavailable

15

Toro AUH438273

RETAINER-Blade
(Superseded to AUH438273-03)

$

$

Not available

16

Toro AUH426809

WASHER-FLAT

$25.99

$

Usually ships in 3-6 days

0

17

Toro AU426-1024

BOLT-Hex Hd 5/8 x 1-1/2 GR5 ZND

$2.49

$

Usually ships in 3-6 days

0

18

Toro AU128471A1

WELDMENT-Skid Shoe

$

$

Currently unavailable

19

Toro AU496-21053

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

20

Toro AU426-828

BOLT-Hex Hd 1/2 x 1-3/4 GR5 ZND
(Superseded to 121-1524)

$3.99

$

Usually ships in 3-6 days

0

21

Toro AU426-820

BOLT-Hex Hd 1/2 x 1-1/4 GR5 ZND

$1.49

$

Usually ships in 3-6 days

0

22

Toro AUH673747

CYLINDER ASM-63.5 (2-1/2) id X 89 MM (3-1/2 INCH) stroke, backfill blade tilt
(Superseded to AU125681)

$2257.99

$

Usually ships in 3-6 days

0

23

Toro AU439-11648

PIN-HEADED

$27.99

$

Usually ships in 3-6 days

0

24

Toro AU432-1632

PIN-Cotter 0.25 x 2.00 in ZN
(Superseded to 3272-33)

$0.99

$

Usually ships in 3-6 days

0

25

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$4.49

$

Usually ships in 3-6 days

0

26

Toro AUL104616

FITTING

$51.99

$

Usually ships in 3-6 days

0

27

Toro AU107623A1

ASM-Hose, Angle

Note: Not illustrated

$154.99

$

Usually ships in 3-6 days

0

28

Toro AU218-5135

ELBOW-45 Adj 37FL 3/8 Tube

$19.99

$

Usually ships in 3-6 days

0

29

Toro AUH438314

CLAMP

$15.99

$

Usually ships in 3-6 days

0

30

Toro AU224-2206

NUT-SQUARE

$1.49

$

Usually ships in 3-6 days

0

31

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

32

Toro AUH438472

BRACKET-Hose

$

$

Currently unavailable

33

Toro AUH438495

ASM-Hose, Tilt

Note: Not illustrated

$

$

Not available

34

Toro AUH438496

ASM-Hose, Tilt

Note: Not illustrated

$98.99

$

Usually ships in 3-6 days

0

35

Toro AUH438497

ASM-Hose, Lift

Note: Not illustrated

$124.99

$

Usually ships in 3-6 days

0

36

Toro AUH436615

SLEEVE-Hose Protector

Note: Not illustrated

$

$

Not available

37

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

38

Toro AU231-5146

NUT-Serr Flg 3/8-16 UNC GR5 ZND
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

39

Toro AU7-47610

INSTRUCTIONS-Installation

Note: Not illustrated

$

$

Currently unavailable
