RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT Parts Diagram

Riding Trencher Traction Unit

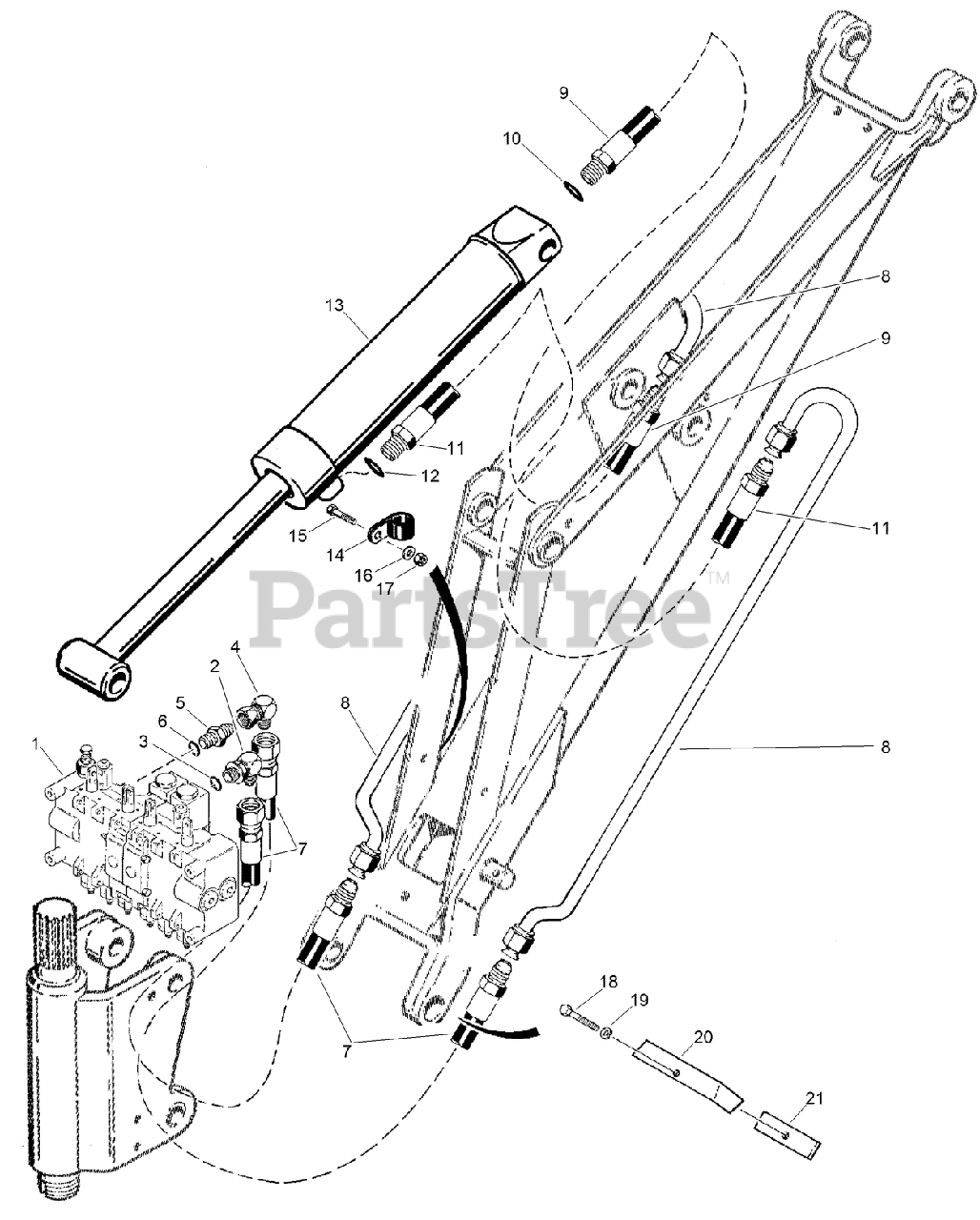

BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT Parts Diagram

  • Title

1

Toro AU125583

VALVE-Backhoe, w/Special Low Leak Spools

$

$

Currently unavailable

2

Toro AU218-5106

ELBOW-90 Adj 37FL, 1/2 Tube

$13.99

$

Usually ships in 3-6 days

0

3

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU218-5230

ELBOW-90 Swivel 37FL 1/2 Tube

$

$

Not available

5

Toro AU218-5059

CONNECTOR-Str Thd 1/2, 37FL-ORB 1/2

$4.99

$

Usually ships in 3-6 days

0

6

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

7

Toro AUH434463

HOSE-1225 mm (48-1/4 inch) long, control valve to tube

$

$

Currently unavailable

8

Toro AUH593392

TUBE-intermediate, to boom cylinder

$159.99

$

Usually ships in 3-6 days

0

9

Toro AUH244921

HOSE-381 mm (15 inch) long, to closed end of boom cylinder

$

$

Not available

10

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

11

Toro AUH268540

HOSE-889 mm (35 inch) long, to rod end of boom cylinder

$91.99

$

Usually ships in 3-6 days

0

12

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

13

Toro AUG100936

CYLINDER-Backhoe

$

$

Not available

14

Toro AUH51763

CLAMP-Tube

$6.49

$

Usually ships in 3-6 days

0

15

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU495-11028

WASHER-FLAT

$

$

Not available

17

Toro AU230-4214

NUT-Prev Trq 1/4 GRA CAD NONDIR

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU426-532

BOLT-Hex Hd 0.312 x 2.00 GR8 ZND

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU492-11031

WASHER-Lock, 5/16 inch

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU105441

BRACKET-Hose Retainer

$28.99

$

Usually ships in 3-6 days

0

21

Toro AUH51748

SPACER-tube

$26.99

$

Usually ships in 3-6 days

0
