RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE BUCKET CYLINDER HYRAULIC CIRCUIT D100 BACKHOE Parts Diagram

Riding Trencher Traction Unit

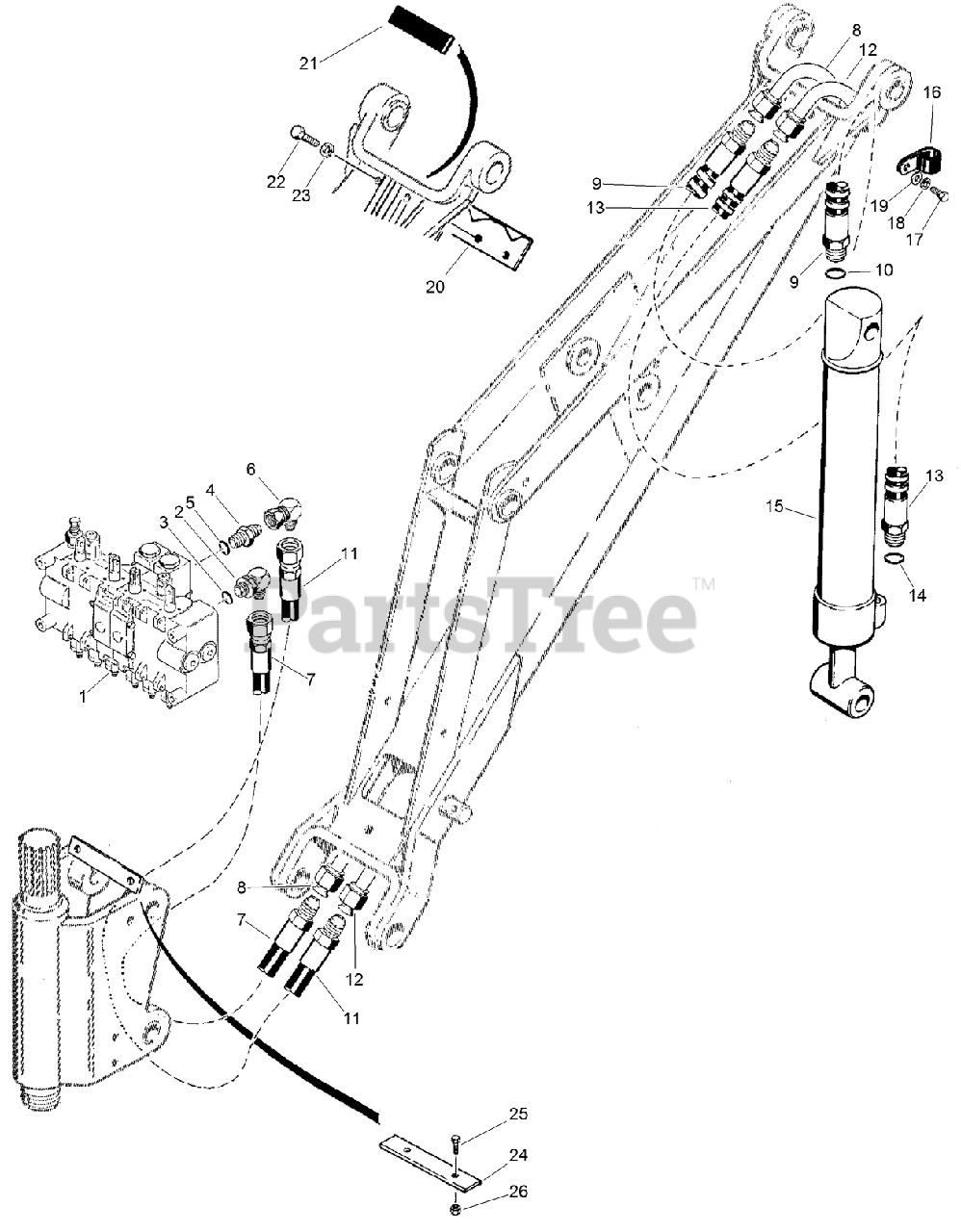

BACKHOE BUCKET CYLINDER HYRAULIC CIRCUIT D100 BACKHOE Parts Diagram

  • Title

1

Toro AU125583

VALVE-Backhoe, w/Special Low Leak Spools

$

$

Currently unavailable

2

Toro AU218-5106

ELBOW-90 Adj 37FL, 1/2 Tube

$13.99

$

Usually ships in 3-6 days

0

3

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU218-5059

CONNECTOR-Str Thd 1/2, 37FL-ORB 1/2

$4.99

$

Usually ships in 3-6 days

0

5

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU218-5230

ELBOW-90 Swivel 37FL 1/2 Tube

$

$

Not available

7

Toro AUH434463

HOSE-1225 mm (48-1/4 inch) long, control valve to tube

$

$

Currently unavailable

8

Toro AUH593376

TUBE-intermediate, to closed end of bucket cylinder

$165.99

$

Usually ships in 3-6 days

0

9

Toro AUH268565

HOSE-1067 mm (42 inch) long, at closed end of bucket cylinder

$168.99

$

Usually ships in 3-6 days

0

10

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

11

Toro AUH434463

HOSE-1225 mm (48-1/4 inch) long, control valve to tube

$

$

Currently unavailable

12

Toro AUH593384

TUBE-intermediate, to rod end of bucket cylinder

$164.99

$

Usually ships in 3-6 days

0

13

Toro AUH357863

HOSE-1549 mm (61 inch) long, at rod end of bucket cylinder

$211.99

$

Usually ships in 3-6 days

0

14

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

15

Toro AUG100936

CYLINDER-Backhoe

$

$

Not available

16

Toro AUH51763

CLAMP-Tube

$6.49

$

Usually ships in 3-6 days

0

17

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU492-11025

WASHER-Spring Lock Reg 0.250 in ZND
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

19

Toro AU495-11028

WASHER-FLAT

$

$

Not available

20

Toro AUH51755

CLAMP-tube, at boom

$

$

Currently unavailable

21

Toro AUH61069

CUSHION-Anti-Wear

$14.99

$

Usually ships in 3-6 days

0

22

Toro AU426-532

BOLT-Hex Hd 0.312 x 2.00 GR8 ZND

$0.99

$

Usually ships in 3-6 days

0

23

Toro AU492-11031

WASHER-Lock, 5/16 inch

$0.99

$

Usually ships in 3-6 days

0

24

Toro AUH434415

BRACKET-Hose Mtg

$

$

Currently unavailable

25

Toro AU426-424

BOLT-Hex Hd 0.250 x 1.50 GR8 ZND

$

$

Not available

26

Toro AU230-4214

NUT-Prev Trq 1/4 GRA CAD NONDIR

$1.49

$

Usually ships in 3-6 days

0
