RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE - HD125 ASSEMBLY NO. 2 Parts Diagram

Riding Trencher Traction Unit

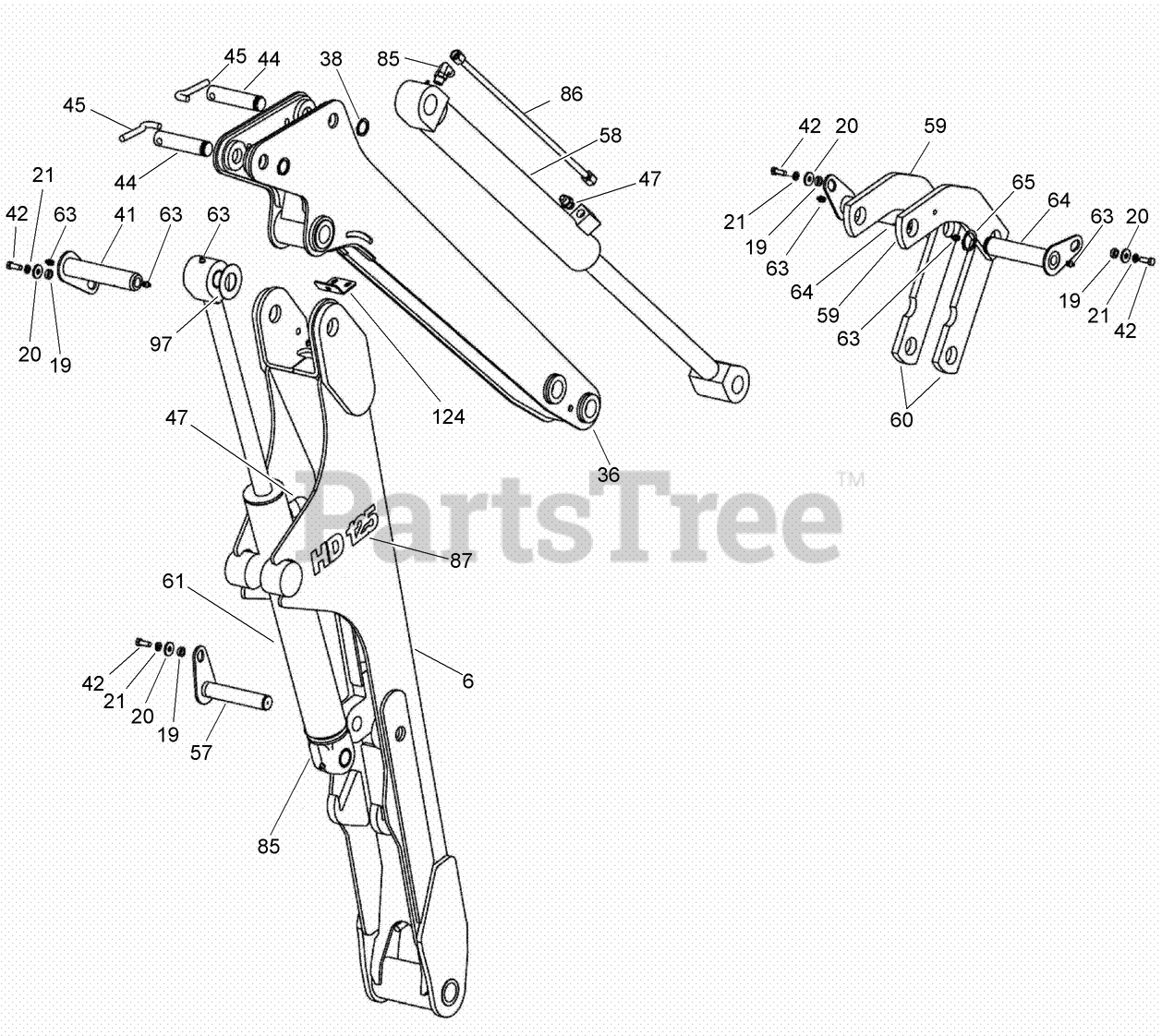

BACKHOE - HD125 ASSEMBLY NO. 2 Parts Diagram

  • Title

Toro AU102128

ASM-Basic Backhoe

Note: Not illustrated

$

$

Currently unavailable

6

Toro AU101354

ASM-Boom

$

$

Currently unavailable

19

Toro AU349192A1

SPACER

$14.99

$

Usually ships in 3-6 days

0

20

Toro AU496-41041

WASHER

$9.99

$

Usually ships in 3-6 days

0

21

Toro AU492-11038

WASHER-Spring Lock, Reg 3/8 ZND
(Superseded to 3253-21)

$0.99

$

In Stock, only 3 left!

0

36

Toro AUH674676

DIPPER ASM-Backhoe

$

$

Not available

38

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$5.49

$

Usually ships in 3-6 days

0

41

Toro AU111270

PIN-RETAINING

$

$

Not available

42

Toro AU326-616

BOLT-Hex, 3/8 NC x 1-1/4 inch

$

$

Not available

44

Toro AUH437349

PIN

$

$

Currently unavailable

45

Toro AUH433937

PIN-RETAINER

$

$

Currently unavailable

47

Toro AU218-5059

CONNECTOR-Str Thd 1/2, 37FL-ORB 1/2

$5.49

$

Usually ships in 3-6 days

0

57

Toro AU111271

PIN-DIPPER CYLINDER TO BOOM

$

$

Not available

58

Toro AU402216A1

HYD CYLINDER ASM (BUCKET)

$

$

Not available

59

Toro AUH437315

LINK-Curved, Dipper to Bucket

$

$

Not available

60

Toro AUH437313

LINK-Straight, Dipper to Bucket

$

$

Currently unavailable

61

Toro AU1346411C3

CYLINDER-76 (3) ID x 498 mm (19-5/8 inch) Stroke, Dipper
(Superseded to AU123706)

$

$

Not available

63

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, Qty 19

0

64

Toro AU349180A1

PIN

$192.99

$

Usually ships in 3-6 days

0

65

Toro AUD25279

RING

$22.99

$

Usually ships in 3-6 days

0

85

Toro AUH439269

ELBOW-90 DEG

$

$

Currently unavailable

86

Toro AUH674567

TUBE-Hydraulic, Bucket

$

$

Currently unavailable

87

Toro AU103191

DECAL-HD125

$

$

Not available

97

Toro AUH426437

WASHER

$

$

Currently unavailable

124

Toro AU253977A1

BRACKET-Boom End, Hose

$

$

Currently unavailable
