RT 600 - Toro Riding Trencher Traction Unit (2012) D100 BACKHOE ASSEMBLY NO. 4 Parts Diagram

Riding Trencher Traction Unit

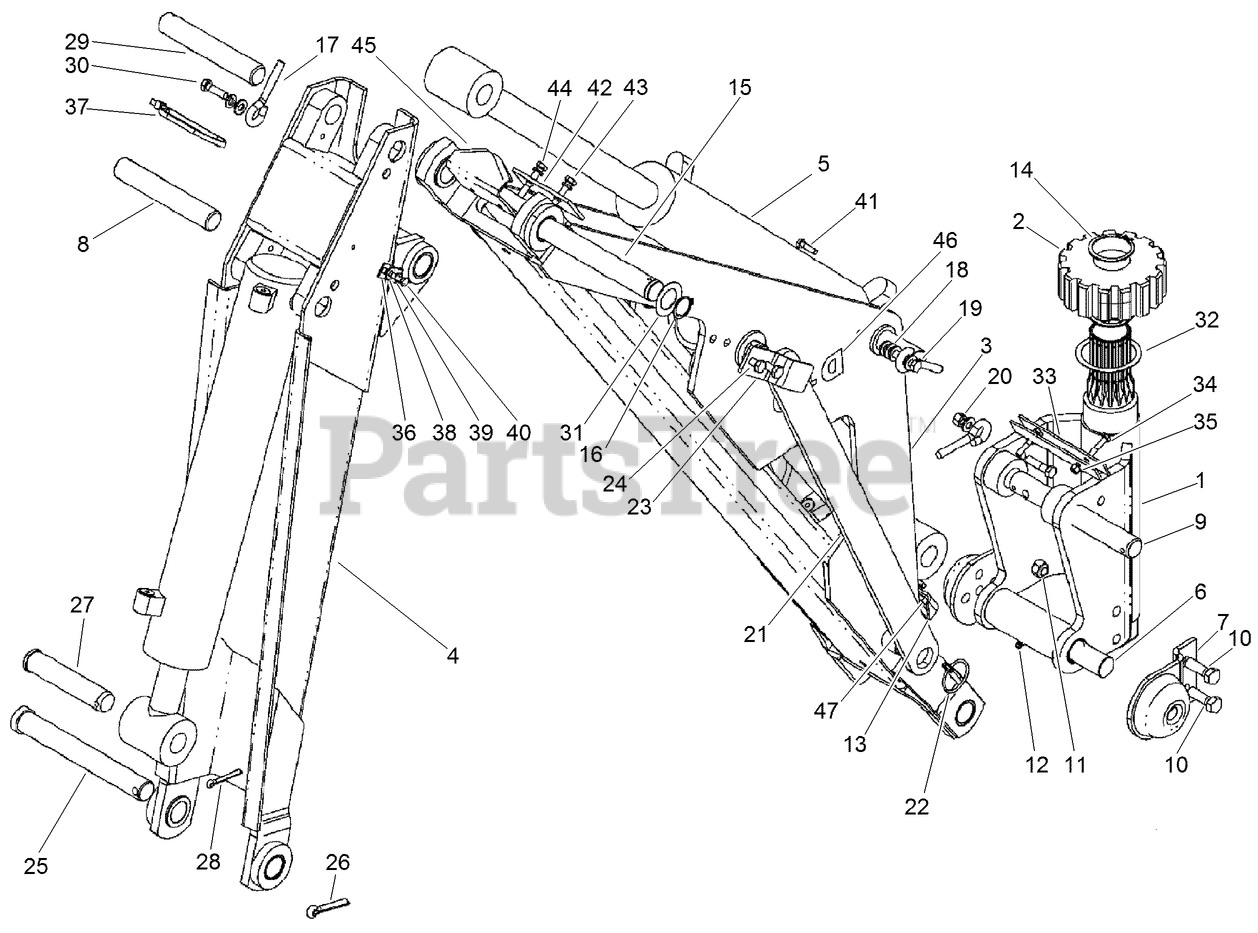

D100 BACKHOE ASSEMBLY NO. 4 Parts Diagram

  • Title

Toro AU125584

ASM-Basic Backhoe, D100

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH672641

WELDMENT-Backhoe King Post

$

$

Currently unavailable

2

Toro AUH434489

GEAR-Driven

$

$

Currently unavailable

3

Toro AU102024

WELDMENT-Backhoe Boom
(Superseded to AU102024-03)

$

$

Not available

4

Toro AUH514687

WELDMENT-Dipper Stick

$

$

Not available

5

Toro AUG100936

CYLINDER-Backhoe

$

$

Not available

6

Toro AUH50526

PIN-Boom Pivot

$98.99

$

Usually ships in 3-6 days

0

7

Toro AUH625756

BUMPER-Rubber, Swing

$

$

Not available

8

Toro AUH50690

PIN-Backhoe

$73.99

$

Usually ships in 3-6 days

0

9

Toro AUH56945

PIN-King Post Pivot

$136.99

$

Usually ships in 3-6 days

0

10

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

11

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0

12

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

13

Toro AU105441

BRACKET-Hose Retainer

$28.99

$

Usually ships in 3-6 days

0

14

Toro AU100-11212

RING-Retainer

$

$

Not available

15

Toro AUH50658

PIN-Dipper Pivot

$

$

Currently unavailable

16

Toro AU103-11112

RING-Retaining Ext Basic #112 Pltd

$3.49

$

Usually ships in 3-6 days

0

17

Toro AUH313981

PIN-RETAINER

$62.99

$

Usually ships in 3-6 days

0

18

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU426-624

BOLT-hex, 3/8 NC x 1-1/2 inch
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

21

Toro AUH56952

LINK-Transport

$282.99

$

Usually ships in 3-6 days

0

22

Toro AUA30338

PIN-KLIK
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

23

Toro AU102103

BRACKET-Pin Retainer

$

$

Not available

24

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

25

Toro AUH50682

PIN-Bucket Hinge

$204.99

$

Usually ships in 3-6 days

0

26

Toro AU432-2432

PIN-Cotter 0.375 x 2.00 in ZN

$1.49

$

Usually ships in 3-6 days

0

27

Toro AUH257048

PIN

$148.99

$

Usually ships in 3-6 days

0

28

Toro AU432-1628

PIN-COTTER

$2.99

$

Usually ships in 3-6 days

0

29

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

30

Toro AU492-11038

WASHER-Spring Lock, Reg 3/8 ZND
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

31

Toro AU195-81016

WASHER-Flat 1-9/16 CAD

$20.99

$

Usually ships in 3-6 days

0

32

Toro AUH434429

SHIM-Kingpost

$

$

Currently unavailable

33

Toro AUH434415

BRACKET-Hose Mtg

$

$

Currently unavailable

34

Toro AU426-424

BOLT-Hex Hd 0.250 x 1.50 GR8 ZND

$

$

Not available

35

Toro AU230-4214

NUT-Prev Trq 1/4 GRA CAD NONDIR

$1.49

$

Usually ships in 3-6 days

0

36

Toro AUH51763

CLAMP-Tube

$6.49

$

Usually ships in 3-6 days

0

37

Toro AUL18331

STRAP-TIE

$2.49

$

Usually ships in 3-6 days

0

38

Toro AU495-11028

WASHER-FLAT

$

$

Not available

39

Toro AU492-11025

WASHER-Spring Lock Reg 0.250 in ZND
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

40

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

41

Toro AU426-416

BOLT-Hex Hd 0.250 x 1.00 GR8 ZND

$0.99

$

Usually ships in 3-6 days

0

42

Toro AUH61069

CUSHION-Anti-Wear

$14.99

$

Usually ships in 3-6 days

0

43

Toro AU492-11031

WASHER-Lock, 5/16 inch

$0.99

$

Usually ships in 3-6 days

0

44

Toro AU426-532

BOLT-Hex Hd 0.312 x 2.00 GR8 ZND

$0.99

$

Usually ships in 3-6 days

0

45

Toro AUH051755

CLAMP-Tube

$

$

Currently unavailable

46

Toro AU103190

DECAL-D100 BACKHOE-Model Number

$

$

Not available

47

Toro AUH051748

CLAMP-Tube

$

$

Currently unavailable
