RT 600 - Toro Riding Trencher Traction Unit (2012) GROUND DRIVE CONTROL ASSEMBLY NO. 2 Parts Diagram

Riding Trencher Traction Unit

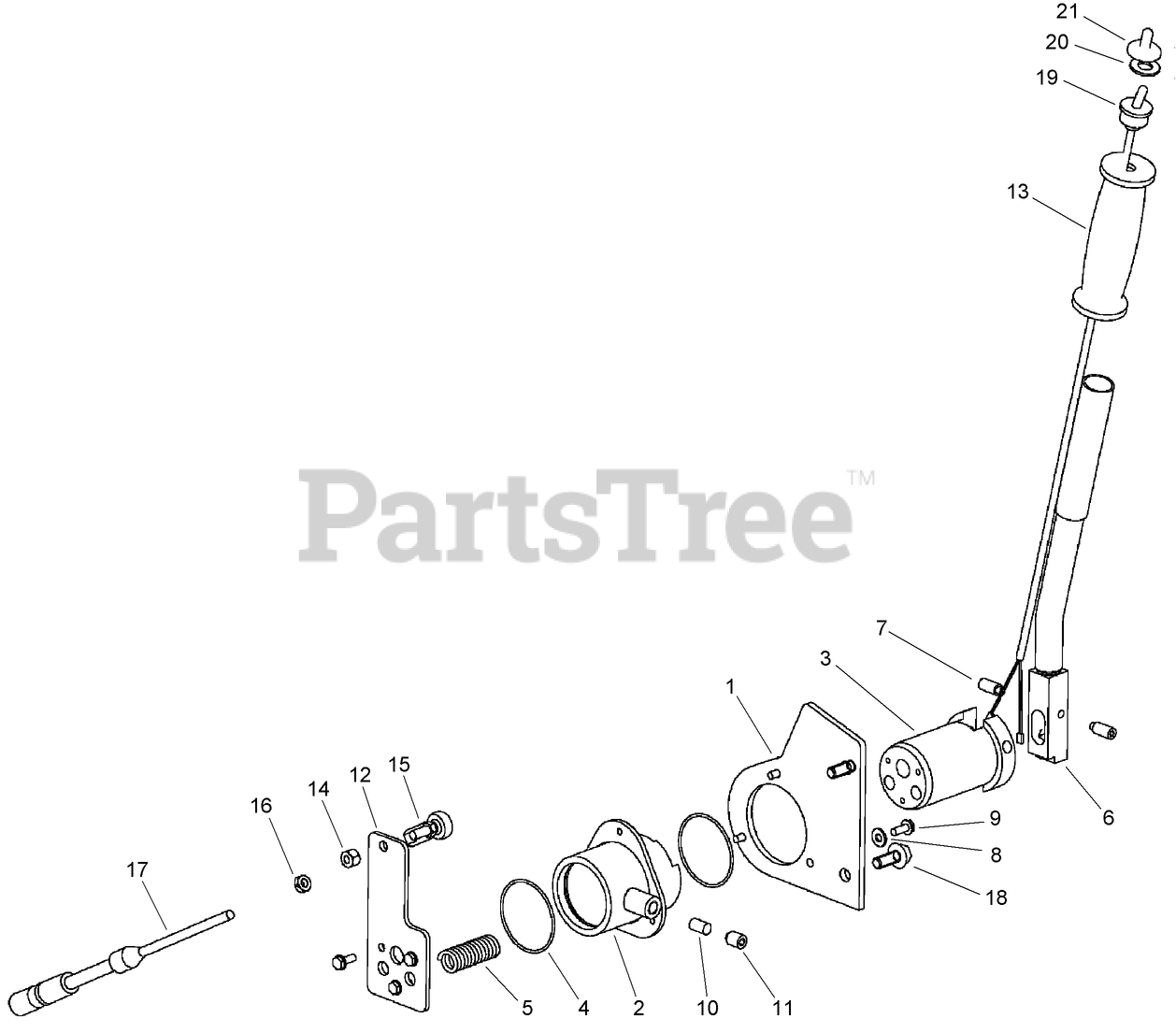

GROUND DRIVE CONTROL ASSEMBLY NO. 2 Parts Diagram

  • Title

Toro AU125308

ASM-Ground Drive Control

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125349

PLATE-Gusset

$

$

Currently unavailable

2

Toro AUH674569

MOUNT

$

$

Currently unavailable

3

Toro AU136779A1

SHAFT

$470.99

$

Usually ships in 3-6 days

0

4

Toro AUS5625

O-RING

$0.99

$

Usually ships in 3-6 days

0

5

Toro AUH438122

SPRING-Locking

$48.99

$

Usually ships in 3-6 days

0

6

Toro AU125311

HANDLE

$

$

Currently unavailable

7

Toro AUH438152

SCREW-Set

$2.49

$

Usually ships in 3-6 days

0

8

Toro AU495-31022

WASHER-0.219 x 0.500 x 0.049 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

9

Toro AUH438153

SCREW-Hex Flange Hd
(Superseded to 32105-8)

$2.49

$

Usually ships in 3-6 days

0

10

Toro AUH438119

PLUG-FRICTION

$31.99

$

Usually ships in 3-6 days

0

11

Toro AUH438151

SCREW-HSH

$4.99

$

Usually ships in 3-6 days

0

12

Toro AU125310

PLATE-Control

$

$

Currently unavailable

13

Toro AUD128268

GRIP-Handle

$9.49

$

Usually ships in 3-6 days

0

14

Toro AU230-4114

NUT-Prev Trq 1/4 GRA CAD DIRECT

$

$

Not available

15

Toro AUH358374

ROD END-FEMALE

$24.99

$

Usually ships in 3-6 days

0

16

Toro AU425-154

NUT-Hex Jam 0.250-28 UNF GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU102691A1

GROUND DRIVE CONTROL CABLE ASM

$146.99

$

Usually ships in 3-6 days

0

18

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

19

Toro AUH675066

ON/OFF TOGGLE SWITCH ASM

$

$

Currently unavailable

20

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU116400A1

BOOT-SWITCH, TOGGLE

$17.99

$

Usually ships in 3-6 days

0
