RT 600 - Toro Riding Trencher Traction Unit (2012) GROUND DRIVE CONTROL ASSEMBLY NO. 4 Parts Diagram

Riding Trencher Traction Unit

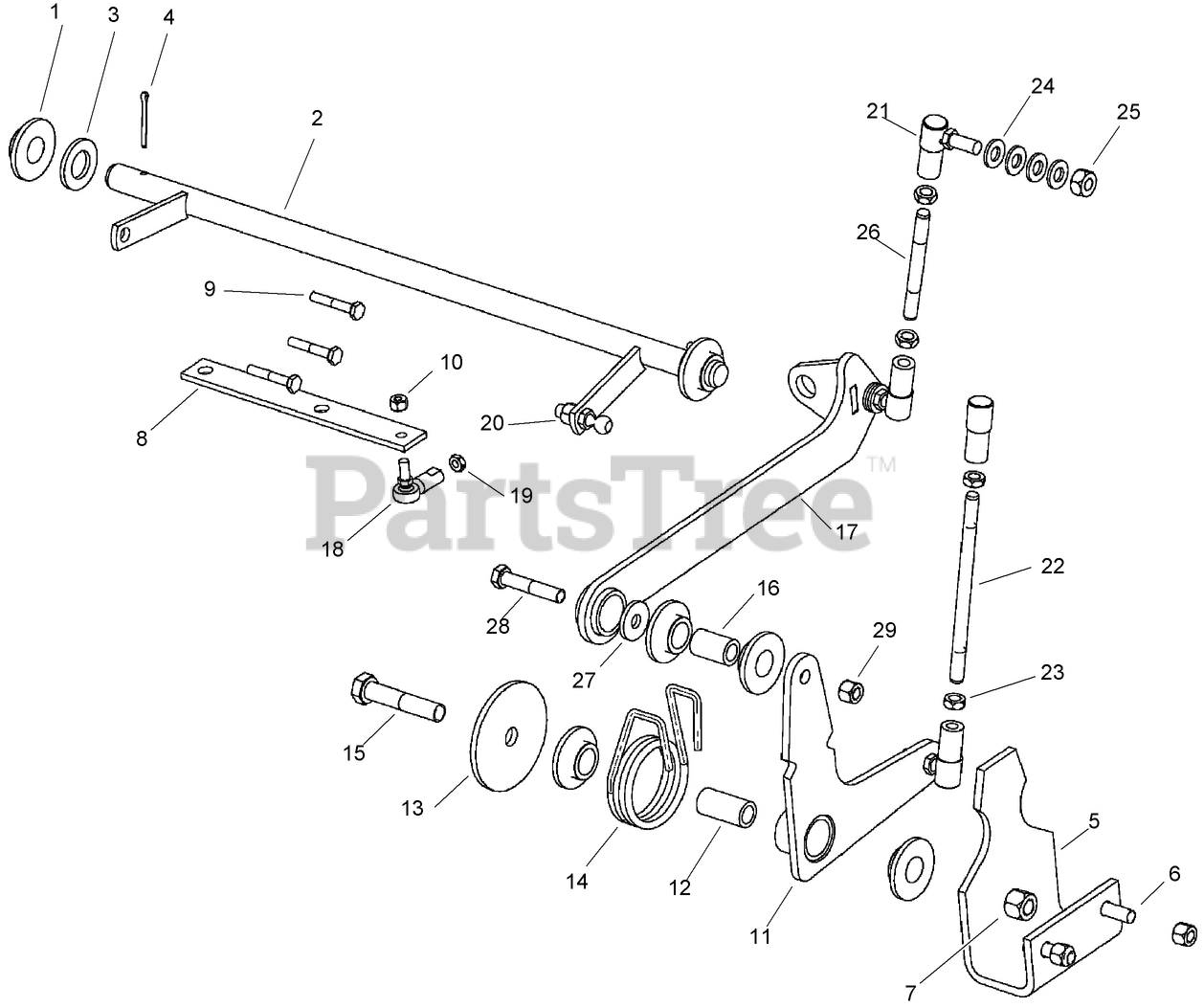

GROUND DRIVE CONTROL ASSEMBLY NO. 4 Parts Diagram

  • Title

Toro AU125308

ASM-Ground Drive Control

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUD128616

BUSHING-INSERT, PLASTIC

$27.99

$

Usually ships in 3-6 days

0

2

Toro AU125307

WELDMENT-Control Shaft

$

$

Currently unavailable

3

Toro AU495-11081

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU432-820

PIN-Cotter, 1/8 x 1-1/4 in ZN
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 20+

0

5

Toro AU106411A1

CHANNEL-Bellcrank Mounting

$

$

Currently unavailable

6

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

7

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

8

Toro AUH437601

LEVER-Pump Control

$

$

Currently unavailable

9

Toro AU326-424

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU230-4114

NUT-Prev Trq 1/4 GRA CAD DIRECT

$

$

Not available

11

Toro AU125320

PIVOT-BELLCRANK

$

$

Currently unavailable

12

Toro AUH435694

SPACER

$43.99

$

Usually ships in 3-6 days

0

13

Toro AUH436215

WASHER-Special

$13.99

$

Usually ships in 3-6 days

0

14

Toro AUH436303

SPRING

$78.99

$

Usually ships in 3-6 days

0

15

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

16

Toro AUH439075

SPACER-PIVOT, BELLCRANK

$29.99

$

Usually ships in 3-6 days

0

17

Toro AU125318

LINK-MOUNTING, CABLE

$

$

Currently unavailable

18

Toro AUH358374

ROD END-FEMALE

$22.99

$

Usually ships in 3-6 days

0

19

Toro AU425-154

NUT-Hex Jam 0.250-28 UNF GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU232-4616

NUT-HEX

$0.99

$

In Stock, Qty 8

0

21

Toro AUD38296

JOINT-BALL
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

22

Toro AU125576

ROD-Linkage

$

$

Currently unavailable

23

Toro AU425-156

NUT-JAM, HEX

$1.49

$

Usually ships in 3-6 days

0

24

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

25

Toro AU25-176

NUT-Hex Hvy 3/8-24 UNF GR5 Pln

$

$

Not available

26

Toro AUH436588

ROD-Linkage

$20.99

$

Usually ships in 3-6 days

0

27

Toro AU496-41041

WASHER

$8.99

$

Usually ships in 3-6 days

0

28

Toro AU426-632

BOLT-Hex Hd 3/8 x 2 GR5 ZND

$1.99

$

Usually ships in 3-6 days

0

29

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0
