RT 600 - Toro Riding Trencher Traction Unit (2012) HYDRA-BORER ASSEMBLY HEAVY DUTY/DIRECT DRIVE CENTERLINE TRENCHER Parts Diagram

Riding Trencher Traction Unit

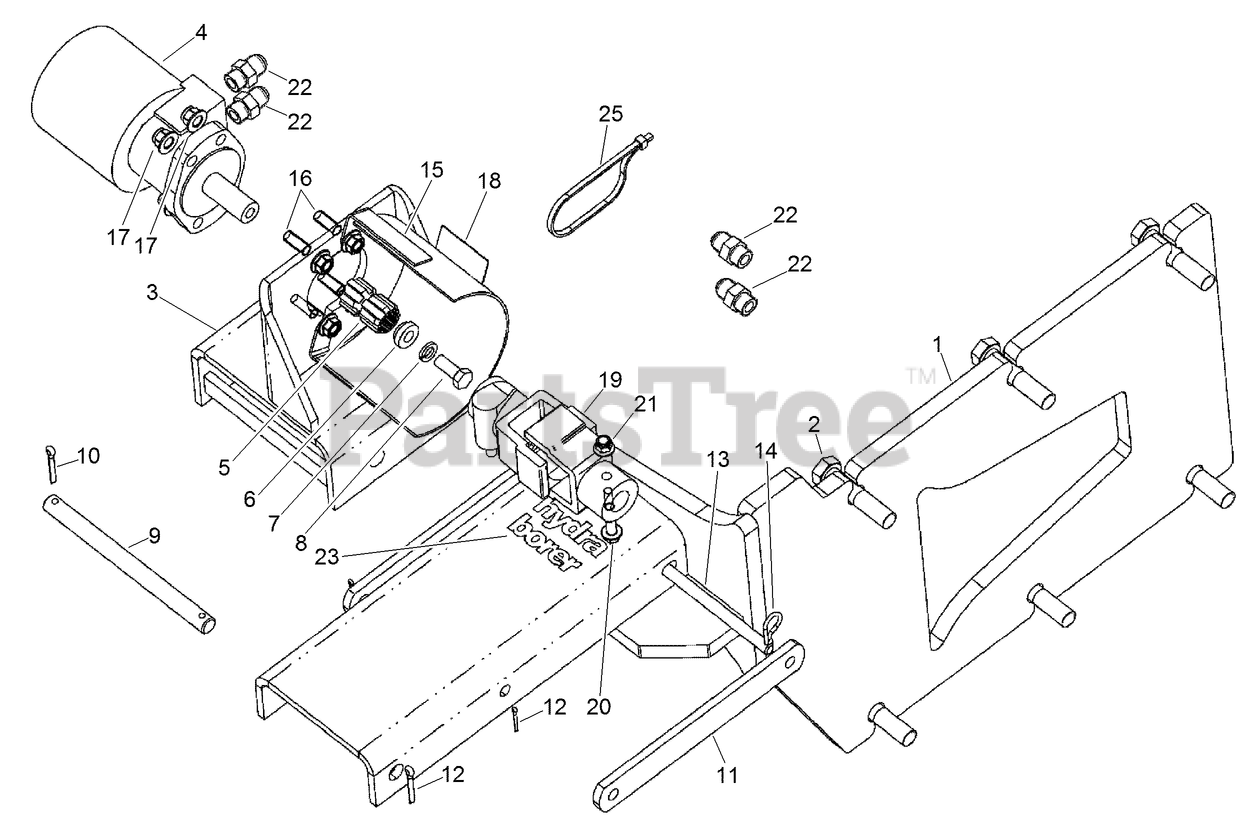

HYDRA-BORER ASSEMBLY HEAVY DUTY/DIRECT DRIVE CENTERLINE TRENCHER Parts Diagram

  • Title

Toro AU122135

ASM-Hydra-Borer

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU229183A1

WELDMENT-Frame, Mounting

$

$

Not available

2

Toro AU426-1256

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

3

Toro AU122136

WELDMENT-Hydra-Borer Mount

$

$

Currently unavailable

4

Toro AUH673156

HYD MOTOR ASM

$1957.99

$

Usually ships in 3-6 days

0

5

Toro AUH312314

ADAPTER

$279.99

$

Usually ships in 3-6 days

0

6

Toro AUH435886

RETAINER-ADAPTER

$69.99

$

Usually ships in 3-6 days

0

7

Toro AU492-11050

WASHER-Spring Lock Reg 1/2 ZND
(Superseded to 325-37)

$6.99

$

In Stock, only 2 left!

0

8

Toro AU414-820

BOLT-Hex Hd, 0.500 UNF x 1.25 GR5 ZND
(Superseded to 106-0378)

$4.99

$

In Stock, Qty 5

0

9

Toro AUH434278

PIN-Pivot

$

$

Currently unavailable

10

Toro AU432-1624

PIN-Cotter, 0.25 x 1.50 in ZN
(Superseded to 3272-30)

$0.99

$

Usually ships in 3-6 days

0

11

Toro AUH434194

LINK-Hydra-Borer Support

$

$

Currently unavailable

12

Toro AU432-816

PIN-COTTER
(Superseded to 3272-11)

$1.49

$

In Stock, Qty 10

0

13

Toro AUH175414

PIN-Pivot

$

$

Currently unavailable

14

Toro AUH32292

PIN-Hair

$1.49

$

Usually ships in 3-6 days

0

15

Toro AUH645838

WELDMENT-Shield, Hydra-Borer Shaft

$449.99

$

Usually ships in 3-6 days

0

16

Toro AU100348

SCREW-HHF

$4.99

$

In Stock, Qty 7

0

17

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

18

Toro AU283607A2

DECAL-Entanglement

$109.99

$

Usually ships in 3-6 days

0

19

Toro AUH511113

U-JOINT ASM
(Superseded to AUH511113-03)

$357.99

$

Usually ships in 3-6 days

0

20

Toro AU100336

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

21

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

22

Toro AU218-5062

CONNECTOR-Str Thd 5/8, 37FL-ORB 5/8

$7.99

$

Usually ships in 3-6 days

0

23

Toro AU103192

DECAL-Model Name

$

$

Not available

24

Toro AUD20358

HOSE-Hydraulic

Note: Not illustrated

$159.99

$

Usually ships in 3-6 days

0

25

Toro AUL18331

STRAP-TIE

$2.49

$

Usually ships in 3-6 days

0
