RT 600 - Toro Riding Trencher Traction Unit (2012) KIT, QUAD ATTACHMENT Parts Diagram

Riding Trencher Traction Unit

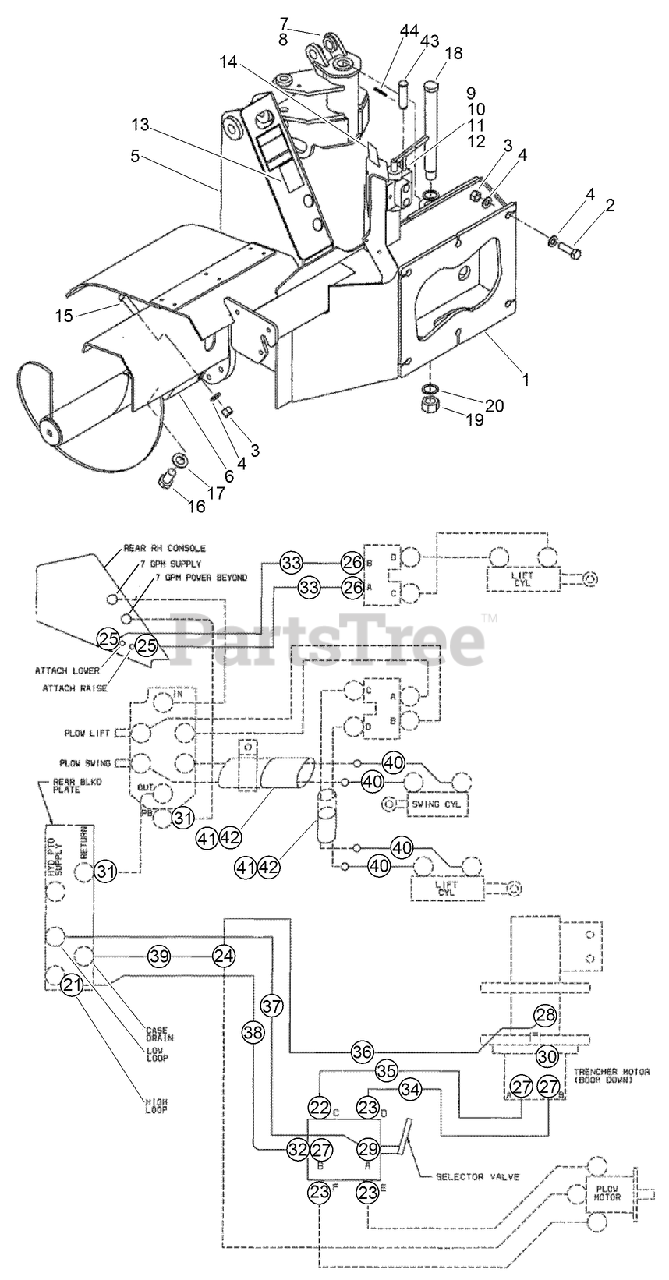

KIT, QUAD ATTACHMENT Parts Diagram

  • Title

Toro AU125855A1

Kit-Quad Attachment

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125857A1

FRAME-Quad

$

$

Currently unavailable

2

Toro AU426-1240

BOLT

$4.49

$

Usually ships in 3-6 days

0

3

Toro AU232-4112

NUT-3/4 TL Grd C

$

$

Currently unavailable

4

Toro AUH426817

WASHER-Flat

$14.99

$

Usually ships in 3-6 days

0

5

Toro AU125856A1

ASM-Trencher

$

$

Currently unavailable

6

Toro AU121418A1

DRIVE-Trencher

$

$

Currently unavailable

7

Toro AU120818A1

PLOW-Basic P75

$

$

Currently unavailable

8

Toro AU127219A2

PLUMBING-P75 Plow

$

$

Currently unavailable

9

Toro AUH672979

VALVE-Selector, 6 Port

$1000.99

$

Usually ships in 3-6 days

0

10

Toro AU426-648

BOLT-hex, 3/8 NC x 3 inch

$1.49

$

Usually ships in 3-6 days

0

11

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU180467A1

DECAL-Quad Selector

$

$

Currently unavailable

14

Toro AU127447A1

DECAL-plow control pattern, lift/swing

$10.99

$

Usually ships in 3-6 days

0

15

Toro AU426-1296

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

16

Toro AU426-1632

BOLT

$16.99

$

Usually ships in 3-6 days

0

17

Toro AUH426833

WASHER

$10.99

$

Usually ships in 3-6 days

0

18

Toro AU120727A1

PIN-pivot, plow

$

$

Currently unavailable

19

Toro AU232-41120

NUT-HEX

$15.99

$

Usually ships in 3-6 days

0

20

Toro AU495-81293

WASHER-flat, 1-17/32 x 2-1/16 x 1/8 inch

$

$

Currently unavailable

21

Toro AU201-147

REDUCER-16FF-12MF

$

$

Not available

22

Toro AU201-307

ELBOW-90 Deg 12MO x 12MF

$

$

Currently unavailable

23

Toro AU201-317

ELBOW-45 Deg 12MO x 12MF

$

$

Not available

24

Toro AU218-595

TEE-10MJ x 10MJ x 10MJ

$25.99

$

Usually ships in 3-6 days

0

25

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

26

Toro AU218-5058

CONNECTOR

$6.99

$

Usually ships in 3-6 days

0

27

Toro AU218-5064

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

28

Toro AU218-5107

ELBOW-90 Adj 37FL 5/8 Tube

$9.49

$

Usually ships in 3-6 days

0

29

Toro AU218-5108

ELBOW-90 Adj 37FL 3/4 Tube

$37.99

$

Usually ships in 3-6 days

0

30

Toro AU218-5155

PLUG-Hex Hd, ORB 3/8

$3.99

$

Usually ships in 3-6 days

0

31

Toro AU218-5175

ELBOW-45 Deg 12MJ x 12FJ

$

$

Not available

32

Toro AU218-5231

FITTING-ELBOW, 90

$21.99

$

Usually ships in 3-6 days

0

33

Toro AU109605A1

HOSE-Boom Lift

$100.99

$

Usually ships in 3-6 days

0

34

Toro AU127252A2

HOSE-Low Pressure Loop

$

$

Not available

35

Toro AU127253A2

HOSE-High Pressure Loop

$

$

Not available

36

Toro AU128847A1

HOSE-Case Drain

$

$

Currently unavailable

37

Toro AU129589A1

HOSE-Selector Valve Lo Loop

$

$

Currently unavailable

38

Toro AU129590A1

HOSE-Selector Valve Hi Loop

$

$

Currently unavailable

39

Toro AU129591A1

HOSE-Case Drain

$

$

Currently unavailable

40

Toro AU129592A1

HOSE-Extension

$

$

Currently unavailable

41

Toro AU128775A1

SLEEVE-Nylon

$

$

Currently unavailable

42

Toro AUL11541

STRAP-TIE

$17.99

$

Usually ships in 3-6 days

0

43

Toro AU427-16350

PIN-clevis, 1 x 3-1/2 inch, hardened

$

$

Not available

44

Toro AU432-1028

PIN-cotter, 5/32 x 1-3/4 inch
(Superseded to 3272-17)

$2.99

$

In Stock, Qty 5

0

45

Toro AU7-47660

INSTRUCTIONS-Installation

Note: Not illustrated

$

$

Currently unavailable
