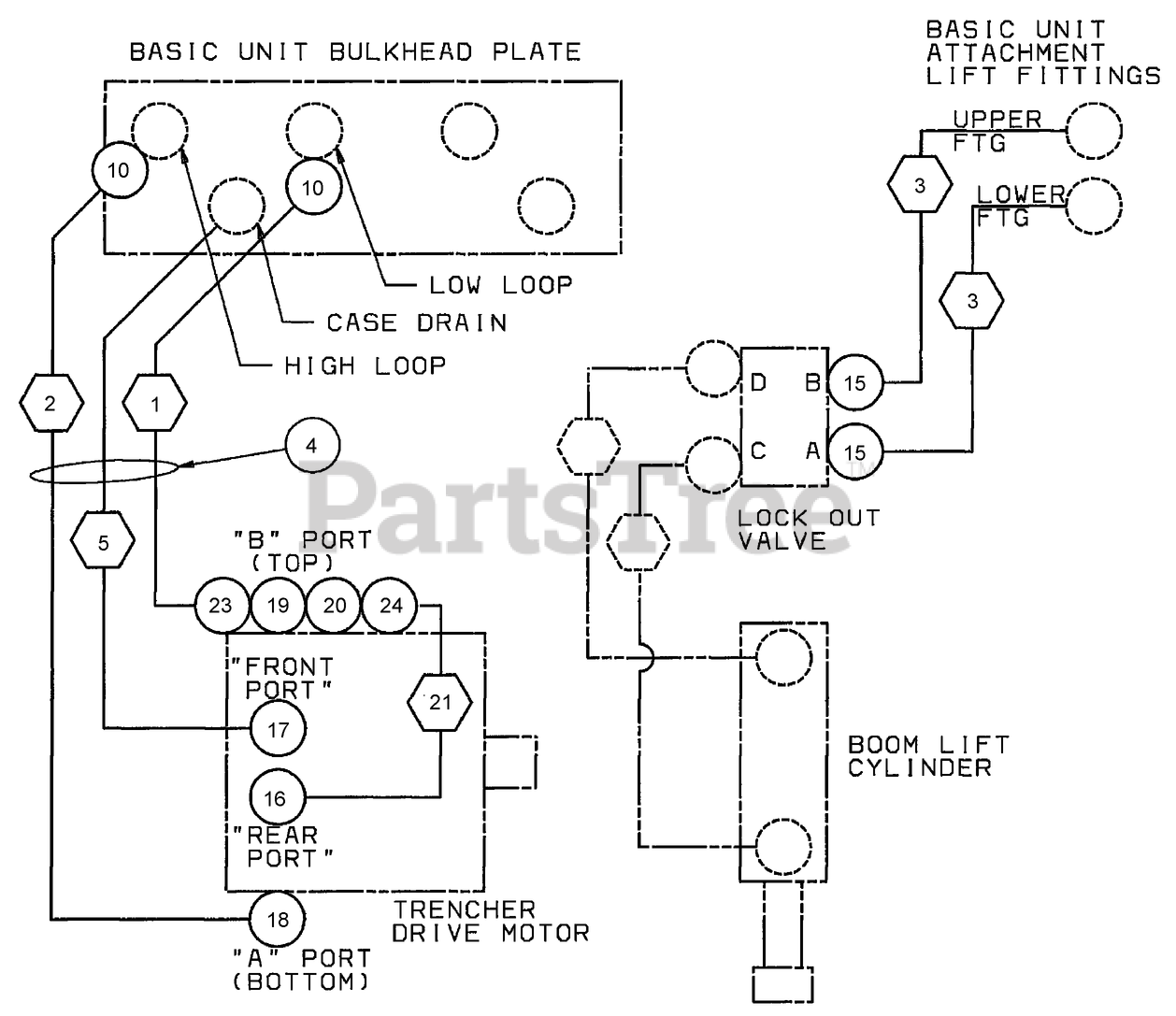

RT 600 - Toro Riding Trencher Traction Unit (2012) KIT, TRENCHER ATTACHMENT - REAR CENTERLINE HEAVY DUTY TRENCHER Parts Diagram

Riding Trencher Traction Unit

KIT, TRENCHER ATTACHMENT - REAR CENTERLINE HEAVY DUTY TRENCHER Parts Diagram

  • Title

Toro AU109609A1

KIT-Heavy Duty Trencher Attachment, Rear Centerline

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU109608A1

HOSE-Low Pressure Loop

$222.99

$

Usually ships in 3-6 days

0

2

Toro AU109607A1

HOSE-High Pressure Loop

$433.99

$

Usually ships in 3-6 days

0

3

Toro AU109605A1

HOSE-Boom Lift

$100.99

$

Usually ships in 3-6 days

0

4

Toro AUL18331

STRAP-TIE

$2.49

$

Usually ships in 3-6 days

0

5

Toro AU109606A1

HOSE-Case Drain

$89.99

$

Usually ships in 3-6 days

0

6

Toro AU426-1240

BOLT

Note: Not illustrated

$4.49

$

Usually ships in 3-6 days

0

7

Toro AU426-1236

SCREW-HH

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0

8

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

9

Toro AUH426817

WASHER-Flat

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0

10

Toro AU201-147

REDUCER-16FF-12MF

$

$

Not available

12

Toro AU426-12104

SCREW-HH

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0

13

Toro AU426-1632

BOLT

Note: Not illustrated

$16.99

$

Usually ships in 3-6 days

0

14

Toro AUH426833

WASHER

Note: Not illustrated

$10.99

$

Usually ships in 3-6 days

0

15

Toro AU218-5058

CONNECTOR

$6.99

$

Usually ships in 3-6 days

0

16

Toro AU218-5121

ELBOW-90 Deg, 1/2 to 5/8

$23.99

$

Usually ships in 3-6 days

0

17

Toro AU218-5062

CONNECTOR-Str Thd 5/8, 37FL-ORB 5/8

$8.49

$

Usually ships in 3-6 days

0

18

Toro AU218-5064

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

19

Toro AU91-203003-12-16S

ADAPTER-Tee, ORB / JIC

$

$

Not available

20

Toro AUH439323

FITTING-Restrictor

$

$

Currently unavailable

21

Toro AUH437953

HOSE-Trencher Motor Flush

$131.99

$

Usually ships in 3-6 days

0

22

Toro AU7-47343

INSTRUCTIONS-Installation

Note: Not illustrated

$

$

Currently unavailable

23

Toro AU218-5382

ELBOW-SWIVEL, 90 DEG

$64.99

$

Usually ships in 3-6 days

0

24

Toro AU218-5230

ELBOW-90 Swivel 37FL 1/2 Tube

$

$

Not available
