RT 600 - Toro Riding Trencher Traction Unit (2012) OPERATOR'S SEAT AND CONTROL ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

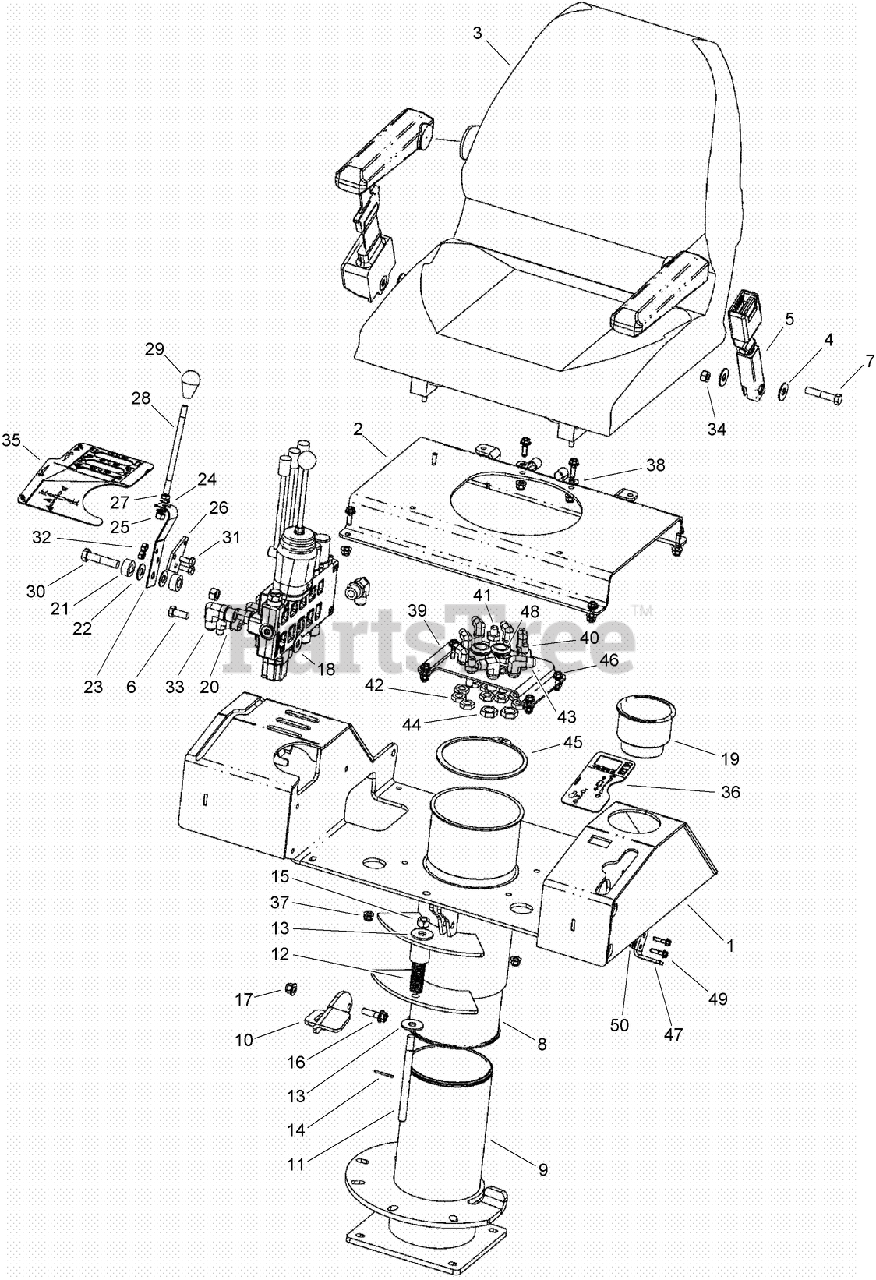

OPERATOR'S SEAT AND CONTROL ASSEMBLY Parts Diagram

  • Title

Toro AU125344

ASM-Seat

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125347

WELDMENT-Seat Mount

$

$

Currently unavailable

2

Toro AU126446

WELDMENT-Seat Mount

$

$

Currently unavailable

3

Toro AU126597

SEAT ASM

$

$

Currently unavailable

4

Toro AU495-21050

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU249116A1

SEAT BELT ASM

$232.99

$

Usually ships in 3-6 days

0

6

Toro AU428-716

SCREW-HH

$

$

Not available

7

Toro AU428-736

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

8

Toro AU125246

BEARING-SEAT PIVOT BUSHING

$

$

Currently unavailable

9

Toro AU125352

MOUNT-SEAT

$

$

Currently unavailable

10

Toro AU124119

PLATE-Seat Latch
(Superseded to AU124119-03)

$

$

Not available

11

Toro AU108909

ROD-SWING, SEAT

$

$

Currently unavailable

12

Toro AU109011

SPRING-PIVOT LOCK, SEAT

$

$

Currently unavailable

13

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU432-816

PIN-COTTER
(Superseded to 3272-11)

$1.49

$

In Stock, Qty 10

0

15

Toro AU425-108

NUT-Hex 0.500-13 GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU100878

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

17

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU125537

HYD CONTROL VALVE ASM

$4662.99

$

Usually ships in 3-6 days

0

19

Toro AU8EO24121

CUP-HOLDER

$3.49

$

Usually ships in 3-6 days

0

20

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

21

Toro AUH428284

SPACER-GEARBOX

$38.99

$

Usually ships in 3-6 days

0

22

Toro AUH256305

WASHER-Friction

$20.99

$

Usually ships in 3-6 days

0

23

Toro AUH434691

LEVER-Speed Control
(Superseded to 127-1285)

$62.99

$

Usually ships in 3-6 days

0

24

Toro AU196-1

WASHER-3/8 HT

$

$

Currently unavailable

25

Toro AU425-106

NUT-Hex 0.375-16 GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU125544

PLATE-Cable Mtg

$

$

Currently unavailable

27

Toro AU425-146

NUT-Hex Jam 0.375-16 GR5 ZNd

$1.49

$

Usually ships in 3-6 days

0

28

Toro AU114524A1

ROD-Linkage

$58.99

$

Usually ships in 3-6 days

0

29

Toro AUA14051

KNOB-Control

$34.99

$

Usually ships in 3-6 days

0

30

Toro AU426-836

BOLT-Hex Hd 0.500 x 2.25 GR8 ZND
(Superseded to 60-9870)

$17.99

$

Usually ships in 3-6 days

0

31

Toro AU413-512

BOLT-Hex Hd 0.312 x 0.75 GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

32

Toro AU425-105

NUT-Hex 0.312-18 GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

33

Toro AU218-5107

ELBOW-90 Adj 37FL 5/8 Tube

$8.99

$

Usually ships in 3-6 days

0

34

Toro AU425-117

NUT-Hex 0.438-20 UNF GR5 ZND

$

$

Not available

35

Toro AU125589

DECAL-Controls, RH

$

$

Currently unavailable

36

Toro AU125590

DECAL-Controls, LH

$

$

Currently unavailable

37

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

38

Toro AU515-23159

CLAMP

$1.49

$

Usually ships in 3-6 days

0

39

Toro AU126022

PLATE-Seat Bulkhead

$

$

Currently unavailable

40

Toro AU218-693

ELBOW

$27.99

$

Usually ships in 3-6 days

0

41

Toro AU218-673

UNION-BULKHEAD

$6.99

$

Usually ships in 3-6 days

0

42

Toro AU218-1254

NUT-LOCK, BULKHEAD

$3.99

$

Usually ships in 3-6 days

0

43

Toro AU218-694

ELBOW

$29.99

$

Usually ships in 3-6 days

0

44

Toro AU218-1255

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

45

Toro AU126291

RING-RETAINING

$

$

Currently unavailable

46

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

47

Toro AU126427

PLATE-Mount

$

$

Currently unavailable

48

Toro AU126438

GROMMET-Rubber

$

$

Currently unavailable

49

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

50

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0
