RT 600 - Toro Riding Trencher Traction Unit (2012) OPERATOR'S STATION ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

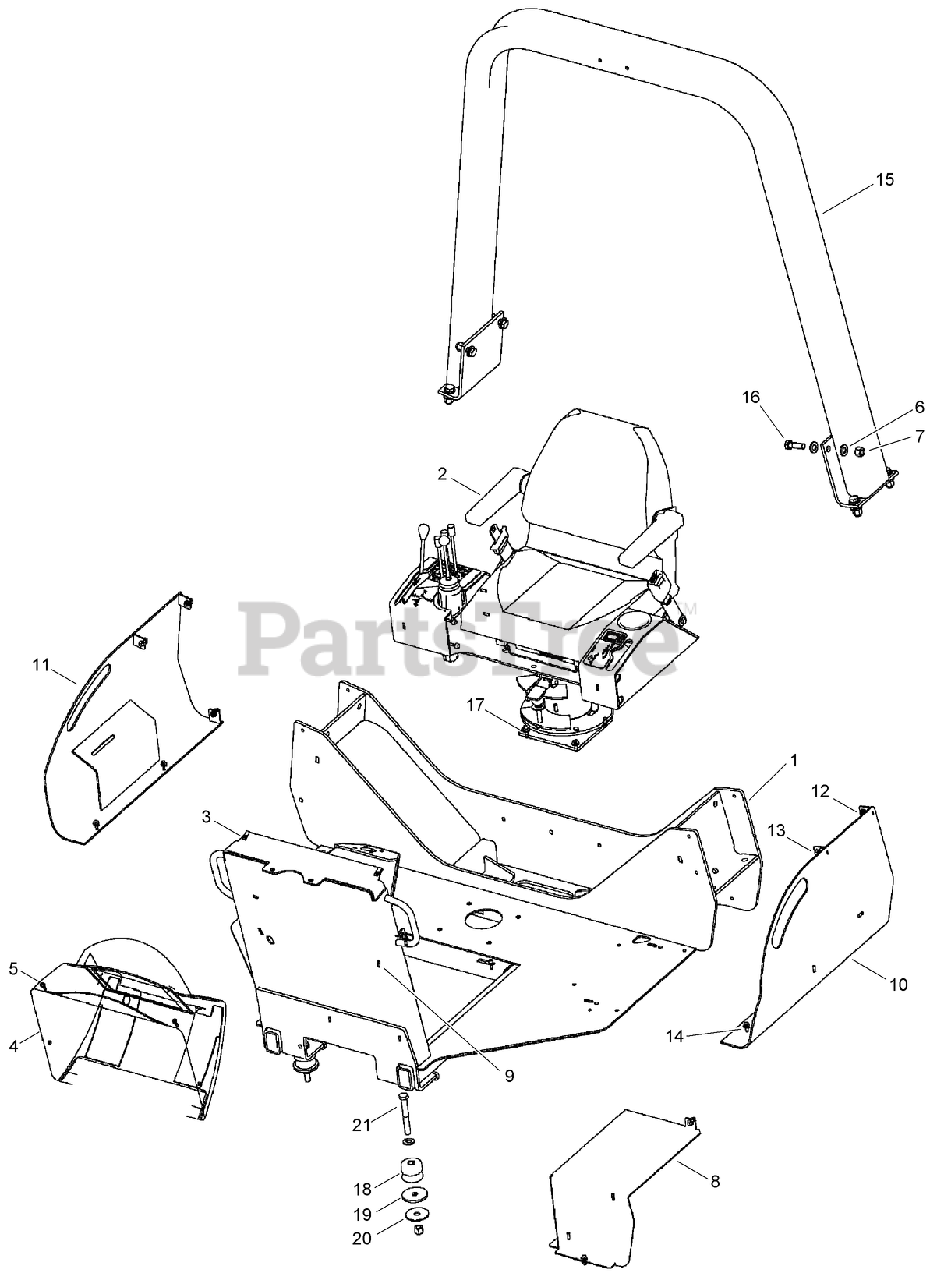

OPERATOR'S STATION ASSEMBLY Parts Diagram

  • Title

Toro AU125144

ASM-Operators Station

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125145

WELDMENT-Operators Platform

$

$

Currently unavailable

2

Toro AU125344

ASM-Seat

$

$

Currently unavailable

3

Toro AU100861

NUT-U

$5.99

$

Usually ships in 3-6 days

0

4

Toro AU121459

PANEL-Dash

$584.99

$

Usually ships in 3-6 days

0

5

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

6

Toro AUH426809

WASHER-FLAT

$22.99

$

Usually ships in 3-6 days

0

7

Toro AU232-41110

NUT-LOCK, HEX

$1.99

$

Usually ships in 3-6 days

0

8

Toro AU125234

COVER-Battery

$

$

Currently unavailable

9

Toro AU125397

PLATE-Kick

$

$

Currently unavailable

10

Toro AU125419

WELDMENT-Fender, LH

$

$

Currently unavailable

11

Toro AU125424

WELDMENT-Fender, RH

$

$

Currently unavailable

12

Toro AU100873

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

13

Toro AU100443

NUT, METRIC HEX FLANGE - M8, Zinc

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

15

Toro AU399010A4

ROPS

$

$

Currently unavailable

16

Toro AU426-1032

BOLT-Hex Hd 0.625 x 2.00 GR8 ZND

$3.49

$

Usually ships in 3-6 days

0

17

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

18

Toro AUA141451

MOUNT-REAR

$111.99

$

Usually ships in 3-6 days

0

19

Toro AUA141470

WASHER-SNUBBING

$

$

Currently unavailable

20

Toro AUD89007

WASHER

$29.99

$

Usually ships in 3-6 days

0

21

Toro AU113-2649

SCREW-HH

$

$

Currently unavailable
