RT 600 - Toro Riding Trencher Traction Unit (2012) PLOW MOTOR, GEARBOX, AND BLADE MOUNTING Parts Diagram

Riding Trencher Traction Unit

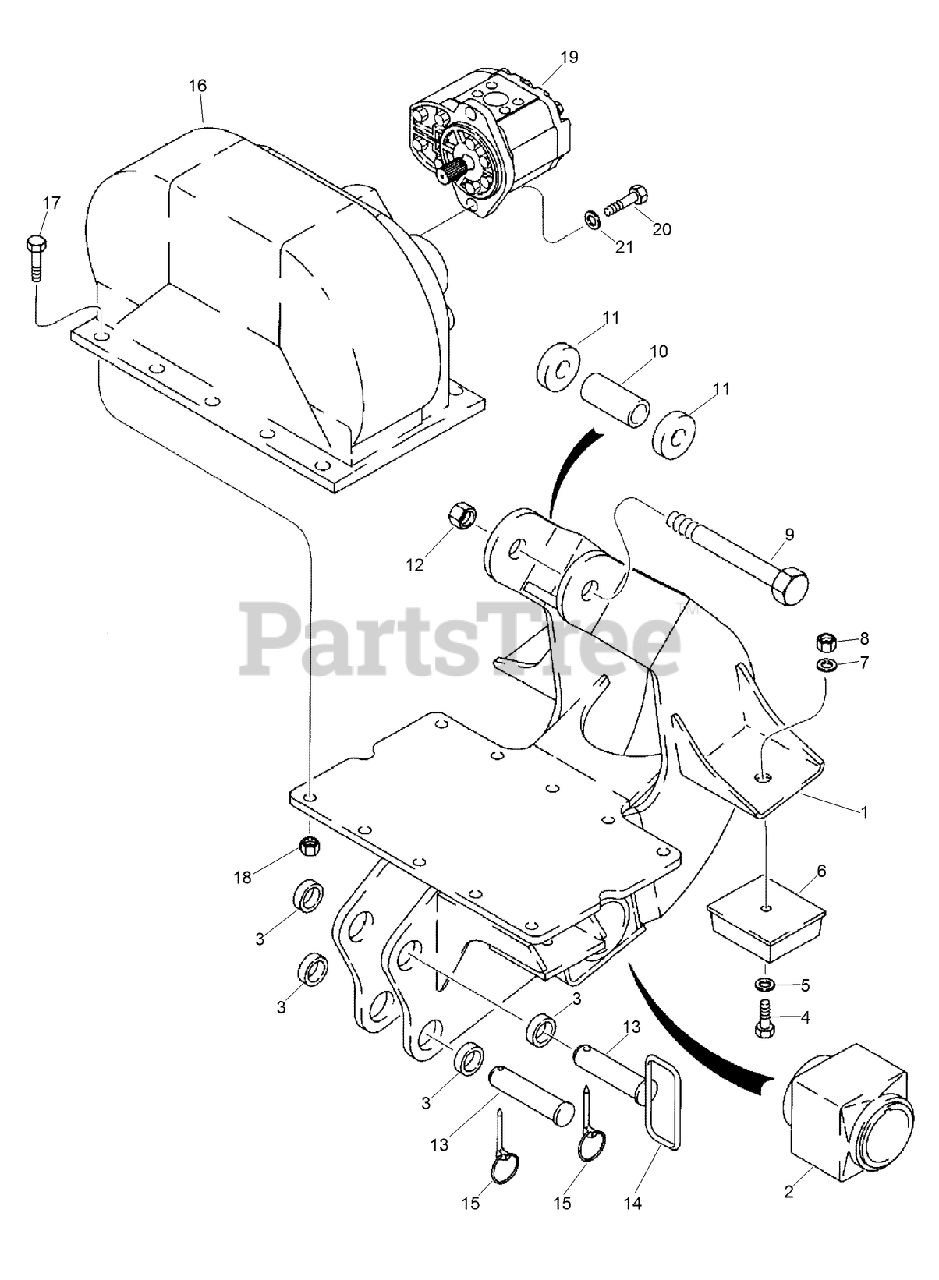

PLOW MOTOR, GEARBOX, AND BLADE MOUNTING Parts Diagram

  • Title

1

Toro AU133628A1

FRAME-plow gearbox mounting

$

$

Not available

2

Toro AUH230862

JOINT-CENTER, BONDED RUBBER

$1101.99

$

Usually ships in 3-6 days

0

3

Toro AUH131102

BUSHING-plow frame

$56.99

$

Usually ships in 3-6 days

0

4

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

5

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUD90990

BUMPER
(Superseded to 136-3998)

$144.99

$

Usually ships in 3-6 days

0

7

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU426-16112

BOLT-hex, 1 NC x 7 inch

$28.99

$

Usually ships in 3-6 days

0

10

Toro AUD90422

SPACER-bushing, 38 mm OD x 87 mm long

$

$

Not available

11

Toro AU139015A1

BUSHING-cylinder mounting

$138.99

$

Usually ships in 3-6 days

0

12

Toro AU232-41116

NUT-HEX

$6.49

$

Usually ships in 3-6 days

0

13

Toro AUH79293

PIN-clevis, 1-1/8 x 4-7/8 inch long

$

$

Not available

14

Toro AUH531830

PIN-with handle, 28 x 114 mm, plow blade

$597.99

$

Usually ships in 3-6 days

0

15

Toro AUA30338

PIN-KLIK
(Superseded to 107-3039)

$11.99

$

In Stock, only 2 left!

0

16

Toro AUH563619

BOX-SHAKER

$

$

Not available

17

Toro AU426-832

BOLT

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU133530A1

MOTOR ASM-plow

$

$

Currently unavailable

20

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0
