RT 600 - Toro Riding Trencher Traction Unit (2012) STEERING CONTROL UNIT HYDRAULIC COMPONENT ASSEMBLY NO. 14 Parts Diagram

Riding Trencher Traction Unit

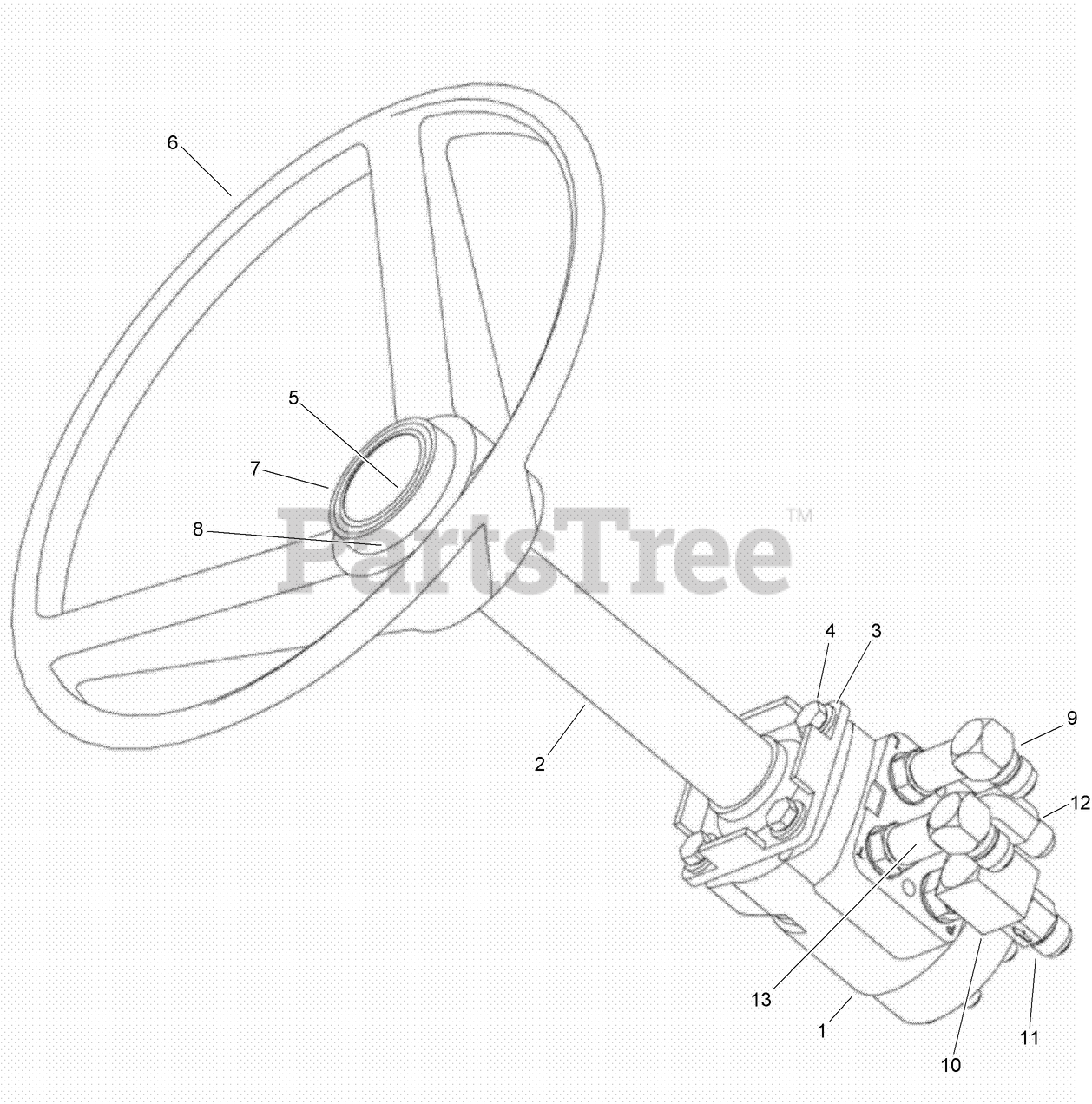

STEERING CONTROL UNIT HYDRAULIC COMPONENT ASSEMBLY NO. 14 Parts Diagram

  • Title

Toro AU125330

HYDRAULICS GROUP

Note: Not illustrated

$

$

Currently unavailable

Toro AU127045

SCHEMATIC-Hydraulics

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU141535A1

HYD STEERING CONTROL VALVE ASM

$

$

Not available

2

Toro AUH672220

STEERING COLUMN ASM

$235.99

$

Usually ships in 3-6 days

0

3

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU426-624

BOLT-hex, 3/8 NC x 1-1/2 inch
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

5

Toro AUF19646

NUT

$27.99

$

Usually ships in 3-6 days

0

6

Toro AUA65544

WHEEL-STEERING

$530.99

$

Usually ships in 3-6 days

0

7

Toro AU114882A2

CAP-STEERING WHEEL

$95.99

$

Usually ships in 3-6 days

0

8

Toro AU238-5227

O-RING

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU700701358

ELBOW

$15.99

$

Usually ships in 3-6 days

0

10

Toro AU111865A1

ELBOW

$58.99

$

Usually ships in 3-6 days

0

11

Toro AUL104449

VALVE-CHECK

$

$

Currently unavailable

12

Toro AU218-5106

ELBOW-90 Adj 37FL, 1/2 Tube

$14.99

$

Usually ships in 3-6 days

0

13

Toro AU218-5103

ELBOW-90 Adj 37FL 1/4 Tube

$7.99

$

Usually ships in 3-6 days

0
