RT 600 - Toro Riding Trencher Traction Unit (2012) TRENCHER BOOM AND MOUNTING ASSEMBLY HEAVY DUTY PLANETARY TRENCHER ROCK BOOM - 5 FOOT 50,000 POUND AND 75,000 POUND CHAINLINE Parts Diagram

Riding Trencher Traction Unit

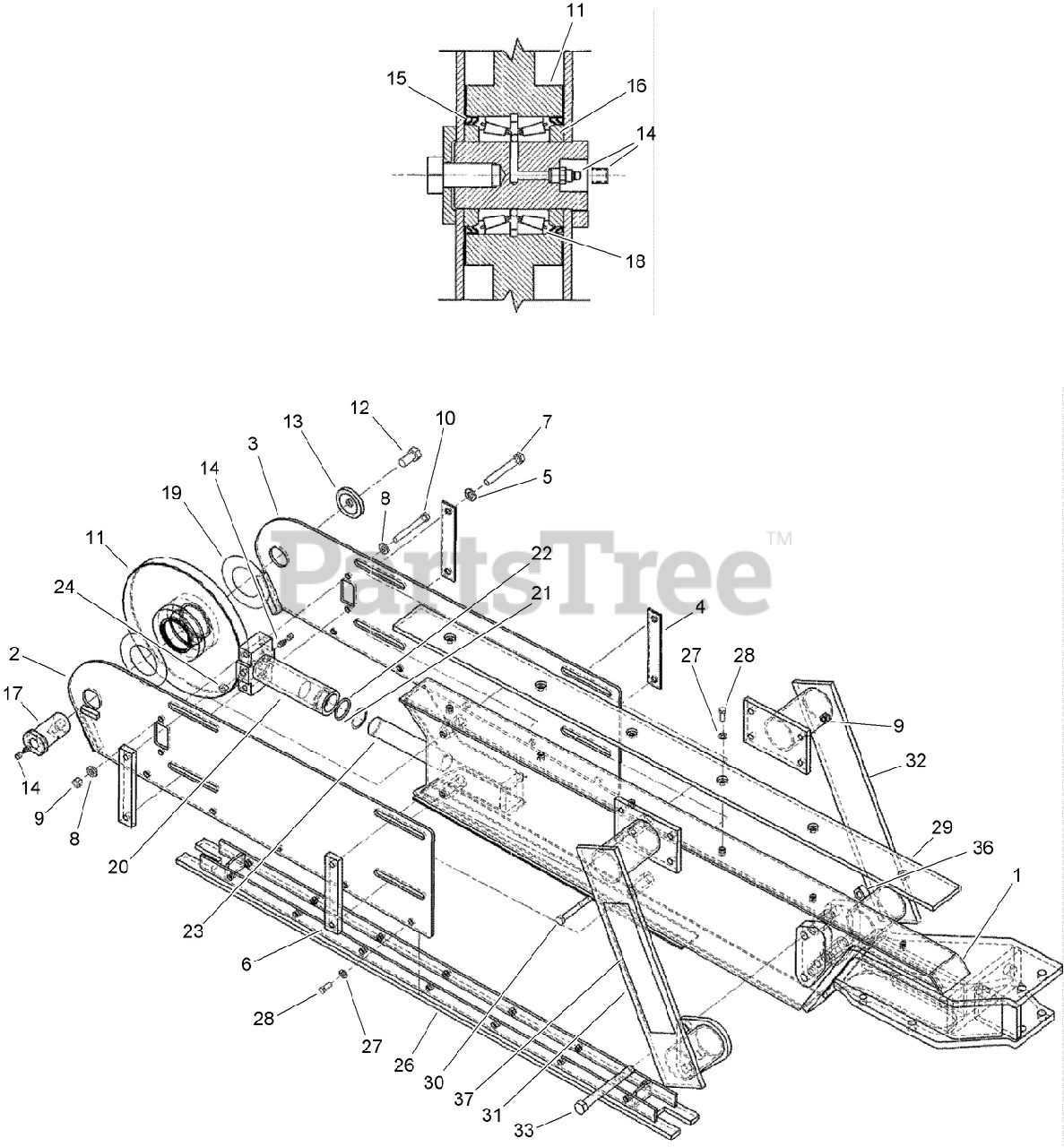

TRENCHER BOOM AND MOUNTING ASSEMBLY HEAVY DUTY PLANETARY TRENCHER ROCK BOOM - 5 FOOT 50,000 POUND AND 75,000 POUND CHAINLINE Parts Diagram

  • Title

Toro AU112360A1

ASM-5 foot Rock Boom

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU112356A1

BOOM-trencher, 5 foot, rock

$

$

Currently unavailable

2

Toro AU112665A1

PLATE-Boom End (RH)

$

$

Not available

3

Toro AU121502A1

PLATE-Boom End (LH)

$

$

Not available

4

Toro AU101563A1

BAR-Clamp
(Superseded to AU101563A1-03)

$

$

Not available

5

Toro AUH434670

WASHER-LOCK

$

$

Not available

6

Toro AU101562A1

BAR-Tapped
(Superseded to AU101562A1-03)

$

$

Not available

7

Toro AU426-1072

BOLT

$5.49

$

Usually ships in 3-6 days

0

8

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

9

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU426-868

BOLT-hex, 1/2 NC x 4-1/4 inch

$

$

Not available

11

Toro AUH675070

BOLLER-Boom End
(Superseded to AUH675070-03)

$

$

Not available

12

Toro AU426-1224

BOLT

$

$

Not available

13

Toro AU139027A1

WASHER

$

$

Not available

14

Toro AU219-66

FITTING-LUBE, STRAIGHT

$16.99

$

Usually ships in 3-6 days

0

CAP-grease fitting, order 219-66 grease fitting

Note: Not illustrated

$

$

Not available

CAP-grease fitting, order 219-66 grease fitting

Note: Not serviced separately

$

$

Not available

15

Toro AUH435218

SEAL-ROLLER

$

$

Currently unavailable

16

Toro AUH438569

SPACER-bearing

$

$

Currently unavailable

17

Toro AUH438570

PIN-BOOM

$

$

Currently unavailable

18

Toro AUH759118

BEARING KIT

$

$

Currently unavailable

19

Toro AUH435229

WASHER-BOOM, END (ROLLER)

$

$

Currently unavailable

20

Toro AUH674743

CYLINDER-Boom End
(Superseded to AUH674743-03)

$

$

Not available

21

Toro AUH755009

WASHER-BACKUP

$7.49

$

Usually ships in 3-6 days

0

22

Toro AUH748871

O-RING
(Superseded to AU238-6327)

$11.99

$

Usually ships in 3-6 days

0

23

Toro AUH434551

ROD-BOOM, END (CYLINDER)

$

$

Currently unavailable

24

Toro AUH114728

PLUG-BLEED

$21.99

$

Usually ships in 3-6 days

0

26

Toro AU101570A1

CHANNEL-wear pad, lower

$

$

Currently unavailable

27

Toro AU196-1

WASHER-3/8 HT

$

$

Currently unavailable

28

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

29

Toro AU112357A1

BAR-Wear Pad, Upper, 5\ Boom
(Superseded to AU112357A1-03)

$

$

Not available

30

Toro AU426-864

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

31

Toro AU117778A1

MOUNT-Crumber RH
(Superseded to AU117778A1-03)

$

$

Not available

32

Toro AU117777A1

MOUNT-Crumber LH
(Superseded to AU117777A1-03)

$

$

Not available

33

Toro AU426-12112

BOLT

$

$

Not available

36

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

37

Toro AU419474A1

DECAL-Danger, Trencher Entanglement Hazard

$

$

Not available
