RT 600 - Toro Riding Trencher Traction Unit (2012) TRENCHER BOOM END AND SPROCKET ASSEMBLY SPROCKET BOOM Parts Diagram

Riding Trencher Traction Unit

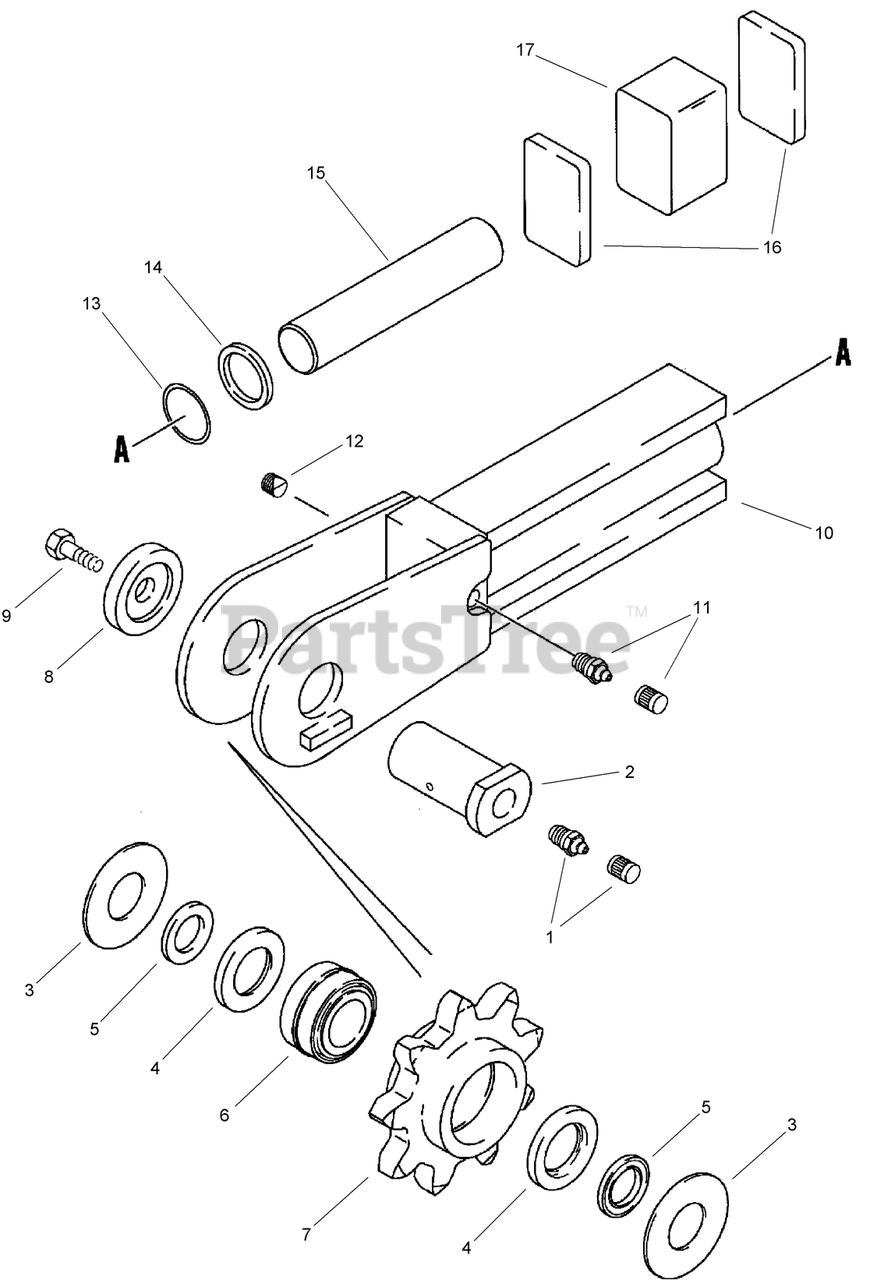

TRENCHER BOOM END AND SPROCKET ASSEMBLY SPROCKET BOOM Parts Diagram

  • Title

1

Toro AU219-66

FITTING-LUBE, STRAIGHT

$14.99

$

Usually ships in 3-6 days

0

2

Toro AU140371A1

PIN-sprocket

$

$

Currently unavailable

3

Toro AUH435229

WASHER-BOOM, END (ROLLER)

$

$

Currently unavailable

4

Toro AUH435218

SEAL-ROLLER

$

$

Currently unavailable

5

Toro AUH438569

SPACER-bearing

$

$

Currently unavailable

6

Toro AUH759118

BEARING KIT

$

$

Currently unavailable

7

Toro AU135202A2

SPROCKET-boom end (used with 4 foot boom)

$

$

Currently unavailable

7

Toro AUH830637

SPROCKET-boom end (used with 5 and 6 foot booms)

$

$

Currently unavailable

8

Toro AU139027A1

WASHER

$

$

Not available

9

Toro AU426-1224

BOLT

$

$

Not available

10

Toro AU139792A2

END-boom

$

$

Currently unavailable

11

Toro AU219-66

FITTING-LUBE, STRAIGHT

$14.99

$

Usually ships in 3-6 days

0

12

Toro AUH114728

PLUG-BLEED

$19.99

$

Usually ships in 3-6 days

0

13

Toro AU238-6327

O-RING

$10.99

$

Usually ships in 3-6 days

0

14

Toro AUH755009

WASHER-BACKUP

$6.99

$

Usually ships in 3-6 days

0

15

Toro AUH434551

ROD-BOOM, END (CYLINDER)

$

$

Currently unavailable

16

Toro AU135193A1

PLATE-cushion

$

$

Currently unavailable

17

Toro AU135194A1

BLOCK-cushion, boom end

$

$

Currently unavailable
