RT 600 - Toro Riding Trencher Traction Unit (2012) TRENCHER DRIVE MOTOR ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

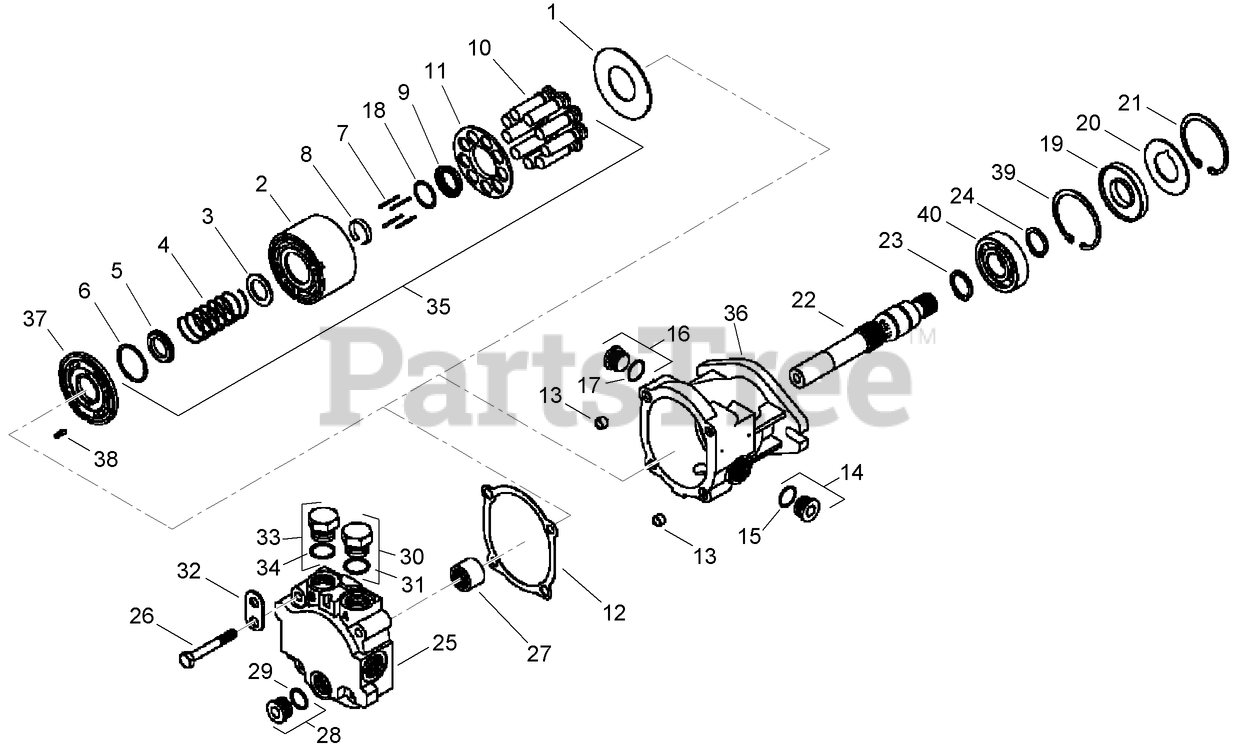

TRENCHER DRIVE MOTOR ASSEMBLY Parts Diagram

  • Title

Toro AU87430035

HYD MOTOR ASM

Note: Not illustrated

$2023.99

$

Usually ships in 3-6 days

0

1

Toro AU100700A1

PLATE-Thrust

$

$

Currently unavailable

2

Toro AU234383A1

CYLINDER BLOCK KIT

$

$

Currently unavailable

3

Toro AU176372A1

WASHER

$

$

Not available

4

Toro AU176373A1

SPRING-Cylinder Block

$

$

Currently unavailable

5

Toro AU115950A1

RETAINER-Cylinder Block Spring

$

$

Not available

6

RING-RETAINING

Note: Not serviced separately

$

$

Not available

7

Toro AU117381A1

PIN-Slipper Hold Down

$

$

Currently unavailable

8

Toro AU117382A1

RETAINER-Hold Down Pin

$

$

Currently unavailable

9

Toro AU176375A1

GUIDE-Slipper Retainer

$

$

Currently unavailable

10

Asm-Piston

Note: Not serviced separately

$

$

Not available

11

Toro AU176376A1

RETAINER-Slipper

$

$

Currently unavailable

12

Toro AU100705A1

WASHER-Thrust

$

$

Currently unavailable

13

Block-Cylinder

Note: Not serviced separately

$

$

Not available

14

PLUG-Socket Head

Note: Not serviced separately

$

$

Not available

15

O-RING

Note: Not serviced separately

$

$

Not available

16

PLUG-Socket Head

Note: Not serviced separately

$

$

Not available

17

O-RING

Note: Not serviced separately

$

$

Not available

18

Toro AUN13994

PIN-Spring

$

$

Currently unavailable

19

Toro AUN14103

SEAL-BEARING, CARRIER

$89.99

$

Usually ships in 3-6 days

0

20

Toro AU241589A1

WASHER-SUPPORT, SEAL

$

$

Currently unavailable

21

RING-RETAINING

Note: Not serviced separately

$

$

Not available

22

Toro AU87431908

SHAFT

$

$

Currently unavailable

23

RING-RETAINING

Note: Not serviced separately

$

$

Not available

24

RING-RETAINING

Note: Not serviced separately

$

$

Not available

25

Toro AU87431909

CAP-End

$

$

Currently unavailable

26

Screw

Note: Not serviced separately

$

$

Not available

27

Toro AU132391A1

BEARING-Needle

$82.99

$

Usually ships in 3-6 days

0

28

Plug

Note: Not serviced separately

$

$

Not available

29

O-RING

Note: Not serviced separately

$

$

Not available

30

Plug

Note: Not serviced separately

$

$

Not available

31

O-RING

Note: Not serviced separately

$

$

Not available

32

Toro AU100703A1

BRACKET-Lifting

$

$

Currently unavailable

33

Plug

Note: Not serviced separately

$

$

Not available

34

O-RING

Note: Not serviced separately

$

$

Not available

35

Toro AU100701A1

GASKET-End Cap

$16.99

$

Usually ships in 3-6 days

0

36

Toro AU87431907

HOUSING-Fixed
(Superseded to AU251668A1)

$926.99

$

Usually ships in 3-6 days

0

37

Toro AU100702A1

PLATE-Valve

$

$

Currently unavailable

38

PIN-Slotted

Note: Not serviced separately

$

$

Not available

39

RING-RETAINING

Note: Not serviced separately

$

$

Not available

40

Bearing-Ball

Note: Not serviced separately

$

$

Not available
