RT-65 (21AB455C010) - Cub Cadet Rear-Tine Tiller (2011) Honda GC190LA Fuel Tank Parts Diagram

Rear-Tine Tiller

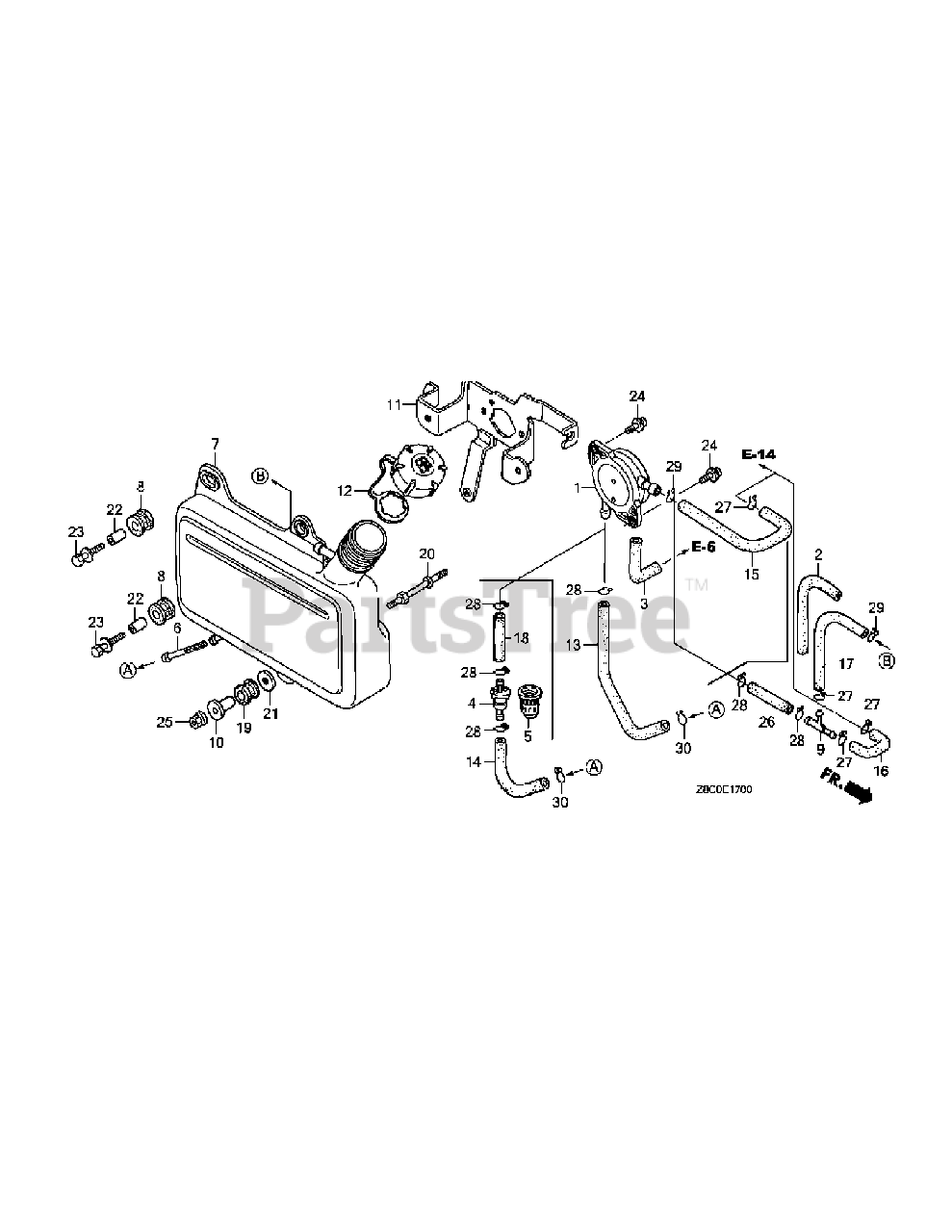

Honda GC190LA Fuel Tank Parts Diagram

  • Title

1

Honda 16700-Z0J-003

Pump Assy., Fuel

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16854-ZH8-000

Rubber, Supporter (107Mm)

$4.99

$

In Stock, Qty 10

0

3

Honda 16882-ZL8-000

Tube, Diaphragm

$2.99

$

In Stock, Qty 14

0

4

Honda 16910-ZV4-015

Fuel Filter

$18.99

$

In Stock, only 4 left!

0

5

Honda 16915-ZV4-000

Suspension, Strainer

$8.49

$

In Stock, only 1 left!

0

7

Cub Cadet 17511-Z0J-800

Tank, Fuel
(Superseded to 06175-Z8A-810)

$47.99

$

In Stock, only 1 left!

0

8

Honda 17516-ZV0-000

Rubber B, Tank Mounting

$3.99

$

In Stock, only 2 left!

0

9

Honda 17519-ZL8-800

Joint, Fuel Tube

$16.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 17535-166-000

Collar, Fr. Cover Setting
(Superseded to 17535-KE7-000)

$4.49

$

In Stock, only 1 left!

0

11

Honda 17561-Z0J-000

Stay A, Fuel Tank

$7.49

$

In Stock, only 1 left!

0

12

Honda 17620-Z0J-800

Cap Assy., Fuel Tank
(Superseded to 17620-Z8B-800)

$22.99

$

In Stock, Qty 15

0

13

Cub Cadet N/A

Not used in this application

$

$

Currently unavailable

14

Honda 17701-ZL8-800

Tube, Fuel Tank

$5.49

$

In Stock, only 1 left!

0

15

Cub Cadet N/A

Not used in this application

$

$

Currently unavailable

16

Honda 17702-ZL8-800

Tube, Fuel

$7.99

$

In Stock, Qty 6

0

17

Honda 17703-ZL8-800

Tube, Fuel Return

$5.99

$

In Stock, only 2 left!

0

18

Honda 17704-ZL8-800

Tube, Fuel Pump

$3.99

$

In Stock, only 1 left!

0

19

Honda 80103-MG2-000

Cushion, Rr. Fender

$3.99

$

In Stock, only 2 left!

0

20

Honda 90041-ZL8-000

Bolt, Fuel Tank Stud (H=30Mm)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90473-896-000

Washer, 6Mm

$2.49

$

In Stock, only 3 left!

0

22

Honda 90501-KA2-640

Collar, 14X6.1

$4.99

$

Usually ships in 3-6 days

0

23

Honda 93404-06025-00

Bolt-Washer, 6X25

$1.49

$

In Stock, only 3 left!

0

24

Honda 93894-05014-00

Screw-Washer, 5X14

$0.99

$

In Stock, Qty 6

0

25

Honda 94050-06000

Nut, Flange, 6Mm

$0.99

$

In Stock, Qty 20+

0

26

Cub Cadet 95001-55033-40

Tube, Fuel, 5.3X33

$

$

Not available

27

Honda 95002-02080

Clip, Tube (B8)

$2.49

$

In Stock, Qty 20+

0

28

Honda 95002-02100

Clip, Tube (B10)

$2.49

$

In Stock, Qty 16

0

29

Honda 95002-50000

Clip, Tube (C9)

$1.99

$

In Stock, Qty 13

0

30

Honda 95002-70000

Clip, Tube (C11)

$1.99

$

In Stock, Qty 20+

0
