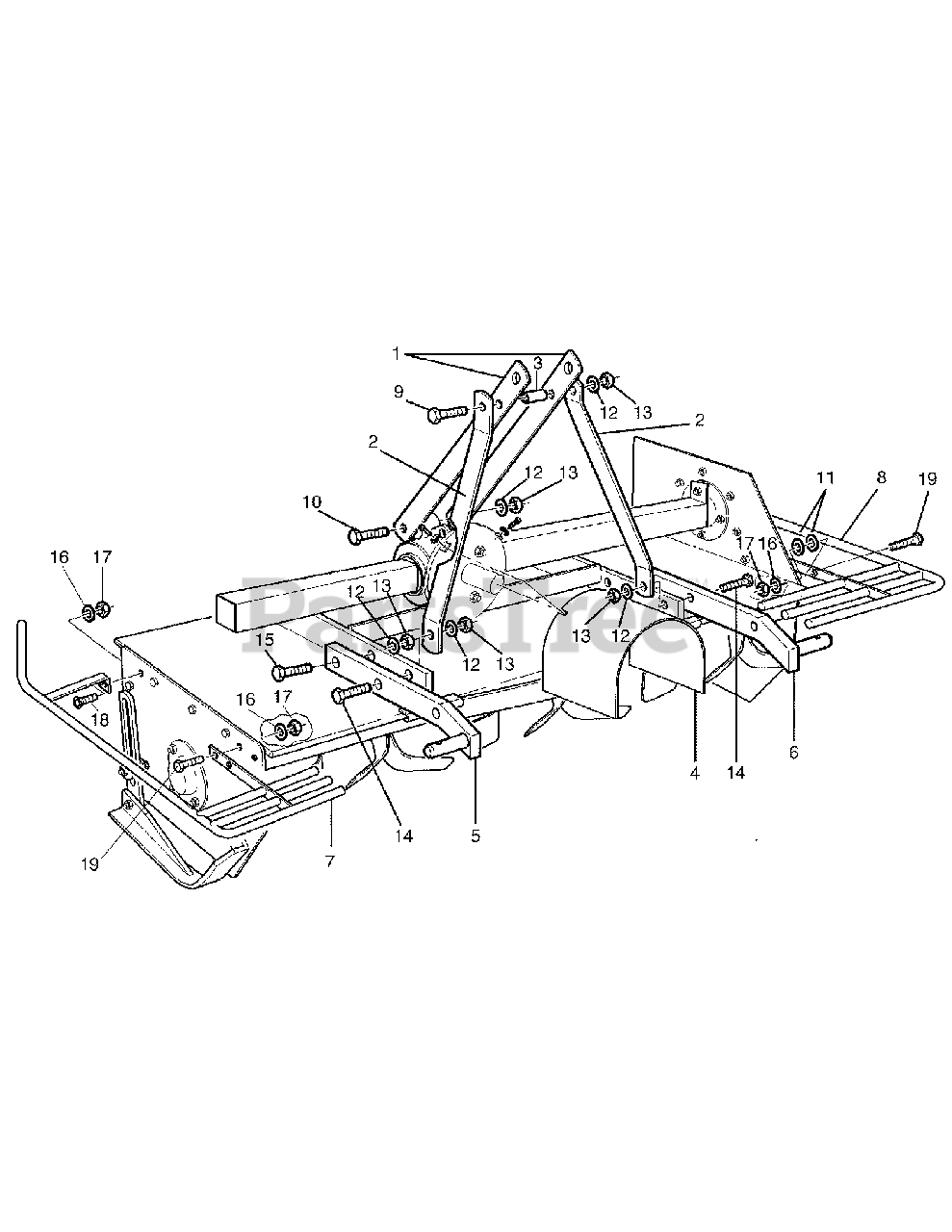

RT-66 (59A40029727) - Cub Cadet Rear-Tine Tiller Three Point Hitch Version 2 Parts Diagram

Rear-Tine Tiller

Three Point Hitch Version 2 Parts Diagram

  • Title
1

Cub Cadet YS-003-4272

Top hitch arm

$

$

Not available

2

Cub Cadet YS-003-4273

Top hitch support

$

$

Not available

3

Cub Cadet YS-002-1285

Spacer
(Superseded to BF-002-1285)

$

$

Not available

4

Cub Cadet YS-002-2269

Pto shaft protection

$

$

Not available

5

Cub Cadet YS-013-4261

Lower right hitch plate

$

$

Not available

6

Cub Cadet YS-023-4261

Left lower hitch plate

$

$

Not available

7

Cub Cadet YS-012-2244

Complete right protection

$

$

Not available

8

Cub Cadet YS-022-2244

Complete left protection

$

$

Not available

9

Cub Cadet YS-003-4286

Bolt TE M12x100
(Superseded to BF-003-4286)

$

$

Not available

10

Cub Cadet YS-001-5122

Bolt TE M12x90

$

$

Not available

11

Cub Cadet YS-000-2034

Flat washer Ø10
(Superseded to BF-000-2034)

$

$

Not available

12

Cub Cadet YS-000-1077

Washer Ø12
(Superseded to BF-000-1077)

$

$

Not available

13

Cub Cadet YS-000-3038

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

14

Cub Cadet YS-002-1257

Bolt TE M12x60
(Superseded to BF-002-1257)

$

$

Not available

15

Cub Cadet YS-003-0054

Bolt TE M12x50

$

$

Not available

16

Cub Cadet YS-000-1280

Washer Ø10
(Superseded to BF-000-1280)

$

$

Not available

17

Cub Cadet YS-000-1279

Nut M10
(Superseded to BF-000-1279)

$

$

Not available

18

Cub Cadet YS-002-2250

Flat head bolt TSPEI M10x35

$

$

Not available

19

Cub Cadet YS-009-1281

Bolt TE M10x35
(Superseded to BF-009-1281)

$

$

Not available
