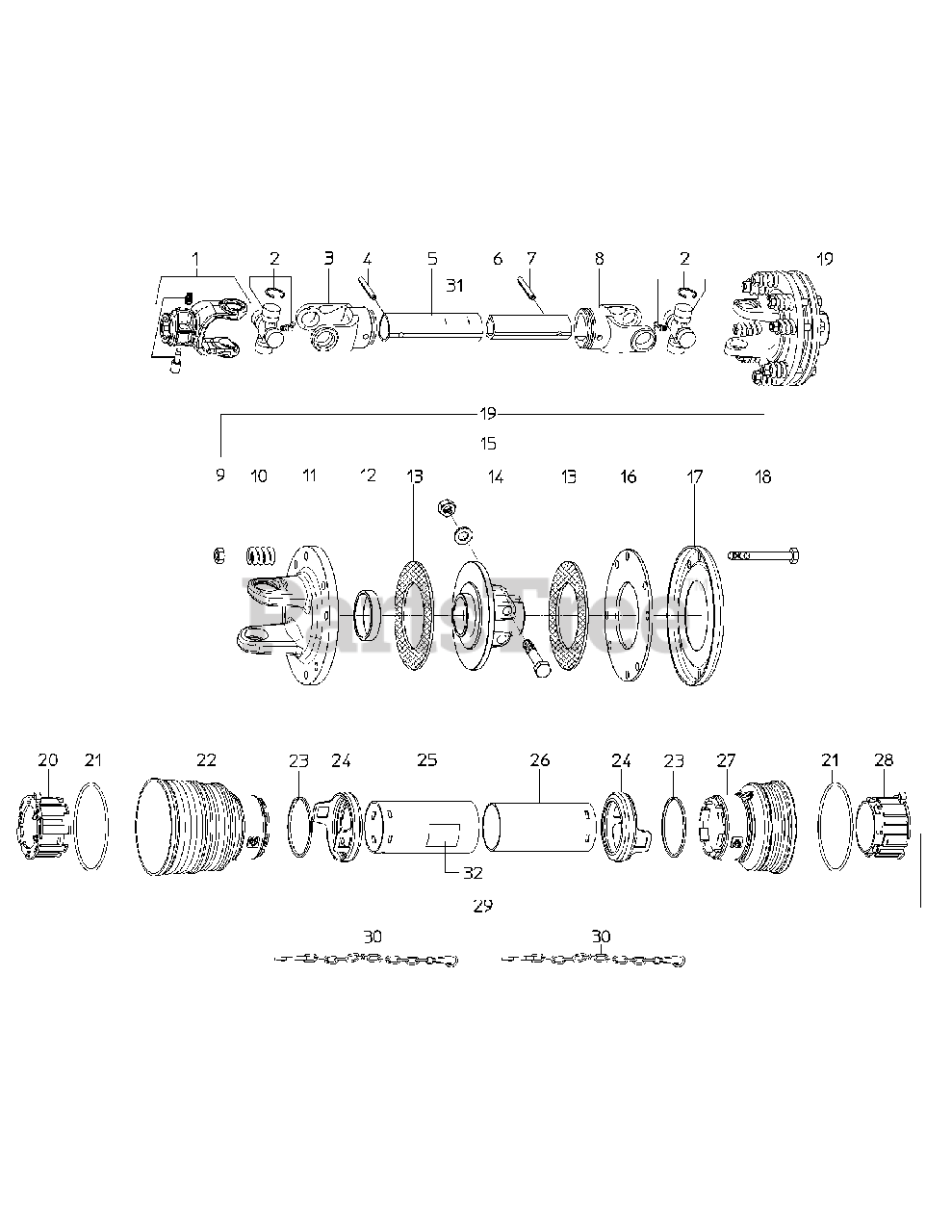

RT-74 (59A40069727) - Cub Cadet Yanmar Tractor Rear-Tine Tiller Driveline (Slip Clutch) 2 Parts Diagram

Tractor Rear-Tine Tiller

Driveline (Slip Clutch) 2 Parts Diagram

  • Title

1

Cub Cadet YS-026-001E

PTO yoke
(Superseded to BF-026-001E)

$

$

Not available

2

Cub Cadet YS-016-130E

Cross & bearing

$

$

Not available

3

Cub Cadet YS-1706027C

Female yoke
(Superseded to BF-1706027C)

$

$

Not available

4

Cub Cadet YS-003-2204

Roll pin Ø10x80

$

$

Not available

5

Cub Cadet YS-1528048C

Female shaft

$

$

Not available

6

Cub Cadet YS-1526048C

Male shaft

$

$

Not available

7

Cub Cadet YS-000-016E

Roll pin Ø10x70
(Superseded to BF-000-016E)

$

$

Not available

8

Cub Cadet YS-1706029C

Male Yoke
(Superseded to BF-1706029C)

$

$

Not available

9

Cub Cadet YS-001-4106

Locking nut M10
(Superseded to BF-001-4106)

$

$

Not available

10

Cub Cadet YS-014-022E

Spring
(Superseded to BF-014-022E)

$

$

Not available

11

Cub Cadet YS-1706005C

Yoke slip clutch
(Superseded to BF-1706005C)

$

$

Not available

12

Cub Cadet YS-1705009C

Bushing
(Superseded to BF-1705009C)

$

$

Not available

13

Cub Cadet YS-1805010C

Friction disc
(Superseded to BF-1805010C)

$

$

Not available

14

Cub Cadet YS-1705005C

Body slip clutch
(Superseded to BF-1705005C)

$

$

Not available

15

Cub Cadet YS-6761270C

Nut, lock washer and bolt M12-1.25x70
(Superseded to BF-6761270C)

$

$

Not available

16

Cub Cadet YS-1135008C

Inner disc
(Superseded to BF-1135008C)

$

$

Not available

17

Cub Cadet YS-1135007C

Pressure disc
(Superseded to BF-1135007C)

$

$

Not available

18

Cub Cadet YS-001-5237

Hex bolt M10x80
(Superseded to BF-001-5237)

$

$

Not available

19

Cub Cadet YS-1346018C

Complete slip clutch
(Superseded to BF-1346018C)

$

$

Not available

20

Cub Cadet YS-1786710C

Outer tube locking ring

$

$

Not available

21

Cub Cadet YS-1215733C

Stiffening ring

$

$

Not available

22

Cub Cadet YS-1785703C

Outer cone

$

$

Not available

23

Cub Cadet YS-1215735C

Stop ring

$

$

Not available

24

Cub Cadet YS-1885709C

Safety sleeve

$

$

Not available

25

Cub Cadet YS-1776038C

Female tube shield

$

$

Not available

26

Cub Cadet YS-1877038C

Male tube shield

$

$

Not available

27

Cub Cadet YS-1785702C

Inner cone

$

$

Not available

28

Cub Cadet YS-1786711C

Inner tube locking ring

$

$

Not available

29

Cub Cadet YS-90SC6038C

Complete shielding

$

$

Not available

30

Cub Cadet YS-016-025E

Chain
(Superseded to BF-016-025E)

$

$

Not available

31

Cub Cadet YS-950-464B

Decal "DANGER - Guard missing, do not operate" outer tube

$

$

Not available

32

Cub Cadet YS-950-463B

Decal "DANGER - Rotating driveline, keep away" outer shield

$

$

Not available

Cub Cadet YS-050-0427

PTO shaft w/slip clutch complete
(Superseded to BF-050-0427)

Note: Not shown

$

$

Not available
