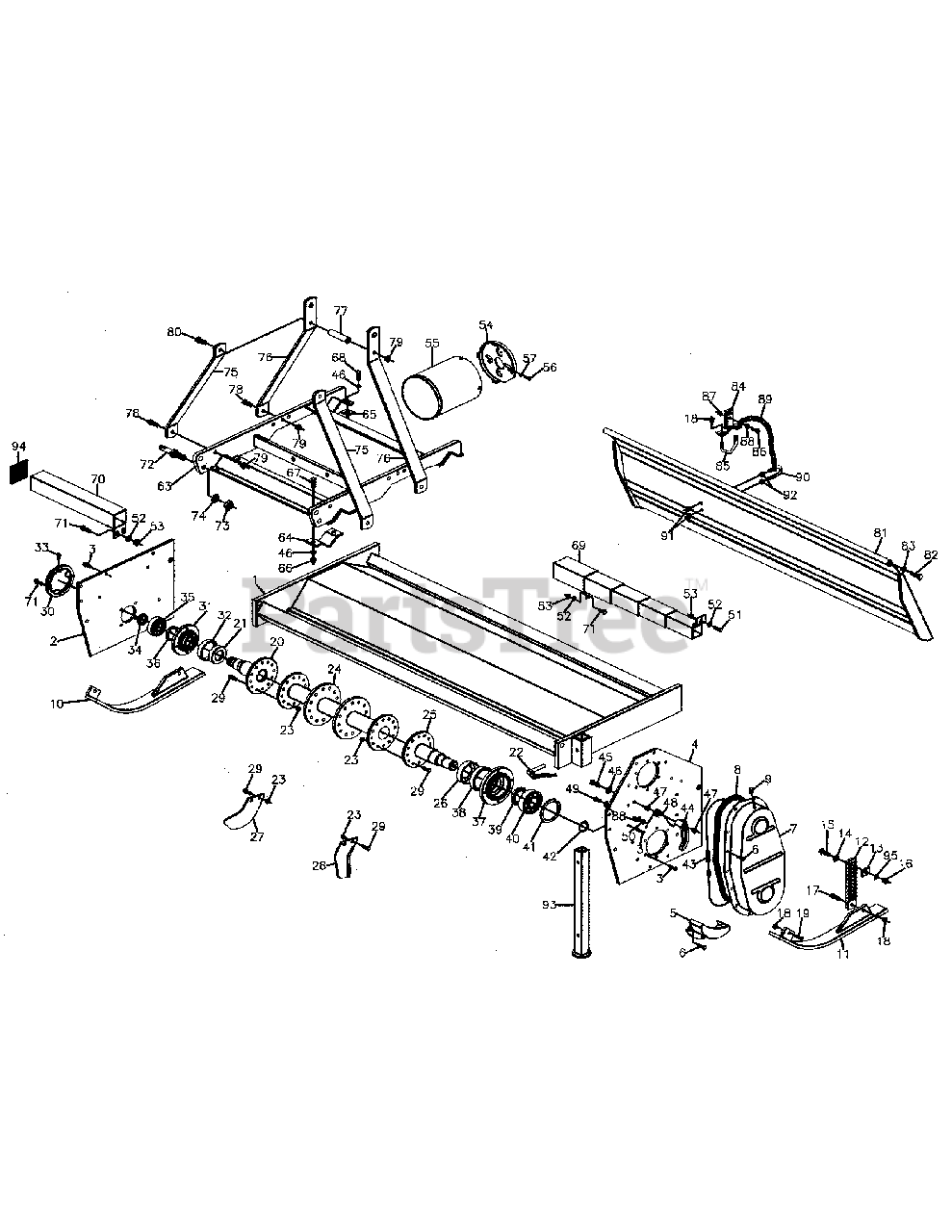

RT-74 (59A40069727) - Cub Cadet Yanmar Tractor Rear-Tine Tiller Frame Parts Diagram

Tractor Rear-Tine Tiller

Frame Parts Diagram

  • Title

1

Cub Cadet YS-048-0002

Frame 74"
(Superseded to BF-048-0002)

$

$

Not available

2

Cub Cadet YS-008-0011

Right side panel
(Superseded to BF-008-0011)

$

$

Not available

3

Cub Cadet YS-000-1241

Hex bolt M10x25
(Superseded to BF-000-1241)

$

$

Not available

4

Cub Cadet YS-008-0021

Drive panel
(Superseded to BF-008-0021)

$

$

Not available

5

Cub Cadet YS-008-0027

Chain case cover protection
(Superseded to BF-008-0027)

$

$

Not available

6

Cub Cadet YS-000-1008

Hex bolt M10x30
(Superseded to BF-000-1008)

$

$

Not available

7

Cub Cadet YS-008-0033

Chain case cover
(Superseded to BF-008-0033)

$

$

Not available

8

Cub Cadet YS-008-0035

Gasket
(Superseded to BF-008-0035)

$

$

Not available

9

Cub Cadet YS-000-1107A

Breather cap

$

$

Not available

10

Cub Cadet YS-018-0051

Right skid
(Superseded to BF-018-0051)

$

$

Not available

11

Cub Cadet YS-028-0051

Left skid
(Superseded to BF-028-0051)

$

$

Not available

12

Cub Cadet YS-008-0056

Serrated adjustment arm
(Superseded to BF-008-0056)

$

$

Not available

13

Cub Cadet YS-008-0057

Plate
(Superseded to BF-008-0057)

$

$

Not available

14

Cub Cadet YS-003-0066

Threaded washer

$

$

Not available

15

Cub Cadet YS-002-1257

Hex bolt M12x60
(Superseded to BF-002-1257)

$

$

Not available

16

Cub Cadet YS-000-3038

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

17

Cub Cadet YS-000-8153

Hex bolt M12x40

$

$

Not available

18

Cub Cadet YS-003-0064

Nut M12
(Superseded to BF-003-0064)

$

$

Not available

19

Cub Cadet YS-001-5255

Hex bolt M12x30
(Superseded to BF-001-5255)

$

$

Not available

20

Cub Cadet YS-008-7052

Right flanged pivot
(Superseded to BF-008-7052)

$

$

Not available

21

Cub Cadet YS-008-0075

Dirt shield
(Superseded to BF-008-0075)

$

$

Not available

22

Cub Cadet YS-001-1333

Cotter pin Ø10x70

$

$

Currently unavailable

23

Cub Cadet YS-002-1105

Nut M12
(Superseded to BF-002-1105)

$

$

Not available

24

Cub Cadet YS-048-0381

Rotor 74"

$

$

Not available

25

Cub Cadet YS-008-7102

Left flanged pivot

$

$

Not available

26

Cub Cadet YS-008-0091

Dirt shield
(Superseded to BF-008-0091)

$

$

Not available

27

Cub Cadet YS-000-1071D

Right C blade
(Superseded to BF-000-1071D)

$

$

Not available

28

Cub Cadet YS-000-1071S

Left C blade
(Superseded to BF-000-1071S)

$

$

Not available

29

Cub Cadet YS-000-1073

Hex bolt M12x35
(Superseded to BF-000-1073)

$

$

Not available

30

Cub Cadet YS-008-0111

Right outer cover
(Superseded to BF-008-0111)

$

$

Not available

31

Cub Cadet YS-008-0114

Complete right support
(Superseded to BF-008-0114)

$

$

Not available

32

Cub Cadet YS-008-0116

Dirt shield
(Superseded to BF-008-0116)

$

$

Not available

33

Cub Cadet YS-000-1065

Grease fitting
(Superseded to BF-000-1065)

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet YS-003-7098

Safety nut M35x1.5
(Superseded to BF-003-7098)

$

$

Not available

35

Cub Cadet YS-000-1061

Bearing 6307
(Superseded to BF-000-1061)

$

$

Not available

36

Cub Cadet YS-003-4159

Oil seal 45.60.10
(Superseded to BF-003-4159)

$

$

Not available

37

Cub Cadet YS-008-0131

Left rotor support
(Superseded to BF-008-0131)

$

$

Not available

38

Cub Cadet YS-003-0123

Cover

$

$

Currently unavailable

39

Cub Cadet YS-003-2512

Oil seal 55.80.10
(Superseded to BF-003-2512)

$

$

Not available

40

Cub Cadet YS-000-1085

Bearing 6309
(Superseded to BF-000-1085)

$

$

Not available

41

Cub Cadet YS-000-1087

Inner snap ring Ø100
(Superseded to BF-000-1087)

$

$

Not available

42

Cub Cadet YS-001-2028

Outer snap ring Ø45

$

$

Currently unavailable

43

Cub Cadet YS-000-1120

Chain ASA 100x36
(Superseded to BF-000-1120)

$

$

Not available

44

Cub Cadet YS-000-1115

Chain tensioner
(Superseded to BF-000-1115)

$

$

Not available

45

Cub Cadet YS-008-0149

Hex bolt M14x75
(Superseded to BF-008-0149)

$

$

Not available

46

Cub Cadet YS-000-1020

Lock washer Ø14
(Superseded to BF-000-1020)

$

$

Not available

47

Cub Cadet YS-008-0152

Nut M14
(Superseded to BF-008-0152)

$

$

Not available

48

Cub Cadet YS-003-7184

Spring
(Superseded to BF-003-7184)

$

$

Not available

49

Cub Cadet YS-017-7168

Hex bolt M10x65
(Superseded to BF-017-7168)

$

$

Not available

50

Cub Cadet YS-000-1010

Nut M10
(Superseded to BF-000-1010)

$

$

Not available

51

Cub Cadet YS-003-8614

Hex bolt M10x40
(Superseded to BF-003-8614)

$

$

Not available

52

Cub Cadet YS-000-2034

Flat washer Ø10
(Superseded to BF-000-2034)

$

$

Not available

53

Cub Cadet YS-000-1279

Nut M10
(Superseded to BF-000-1279)

$

$

Not available

54

Cub Cadet YS-001-1201

Protection support

$

$

Currently unavailable

55

Cub Cadet YS-001-1207

PTO shaft protection

$

$

Currently unavailable

56

Cub Cadet YS-001-1210

Bolt TC M6x12
(Superseded to BF-001-1210)

$

$

Not available

57

Cub Cadet YS-001-1209

Flat washer Ø6
(Superseded to BF-001-1209)

$

$

Not available

63

Cub Cadet YS-008-0271

3 point hitch side shift

$

$

Not available

64

Cub Cadet YS-008-0281

Plate
(Superseded to BF-008-0281)

$

$

Not available

65

Cub Cadet YS-008-0283

Plate
(Superseded to BF-008-0283)

$

$

Not available

66

Cub Cadet YS-000-1019

Nut M14
(Superseded to BF-000-1019)

$

$

Not available

67

Cub Cadet YS-003-7349

Hex bolt M14x45
(Superseded to BF-003-7349)

$

$

Not available

68

Cub Cadet YS-007-4232

Hex bolt M14x40
(Superseded to BF-007-4232)

$

$

Not available

69

Cub Cadet YS-028-0291

Protection 74"
(Superseded to BF-028-0291)

$

$

Not available

70

Cub Cadet YS-048-0301

Right protection 74"
(Superseded to BF-048-0301)

$

$

Not available

71

Cub Cadet YS-009-1281

Hex bolt M10x35
(Superseded to BF-009-1281)

$

$

Not available

72

Cub Cadet YS-000-5550

Hitch pin
(Superseded to BF-000-5550)

$78.99

$

In Stock, only 2 left!

0

73

Cub Cadet YS-000-5542

Nut M20
(Superseded to BF-000-5542)

$3.49

$

In Stock, only 2 left!

0

74

Cub Cadet YS-000-5351

Lock washer Ø20
(Superseded to BF-000-5351)

$2.99

$

Usually ships in 3-6 days

0

75

Cub Cadet YS-008-0322

Top hitch support
(Superseded to BF-008-0322)

$

$

Not available

76

Cub Cadet YS-008-0323

Top hitch arm
(Superseded to BF-008-0323)

$

$

Not available

77

Cub Cadet YS-000-1254

Spacer
(Superseded to BF-000-1254)

$

$

Not available

78

Cub Cadet YS-000-1018

Hex bolt M14x45
(Superseded to BF-003-7349)

$

$

Not available

79

Cub Cadet YS-003-0358

Nut M14
(Superseded to BF-003-0358)

$6.49

$

Usually ships in 3-6 days

0

80

Cub Cadet YS-009-0226

Hex bolt M14x110
(Superseded to BF-009-0226)

$

$

Not available

81

Cub Cadet YS-048-0334

Tail gate 74"

$

$

Not available

82

Cub Cadet YS-003-7386

Hex bolt M18x80
(Superseded to BF-003-7386)

$

$

Not available

83

Cub Cadet YS-003-8370

Nut M18
(Superseded to BF-003-8370)

$

$

Not available

84

Cub Cadet YS-008-0341

Chain hitch
(Superseded to BF-008-0341)

$

$

Not available

85

Cub Cadet YS-001-1251

U bolt
(Superseded to BF-001-1251)

$

$

Not available

86

Cub Cadet YS-000-1278

Hex bolt M10x30
(Superseded to BF-000-1278)

$

$

Not available

87

Cub Cadet YS-003-0156

Nut M10
(Superseded to BF-003-0156)

$

$

Not available

88

Cub Cadet YS-003-0157

Flat washer Ø10
(Superseded to BF-003-0157)

$

$

Not available

89

Cub Cadet YS-000-7257

Chain

$

$

Currently unavailable

90

Cub Cadet YS-001-1327

U bolt
(Superseded to BF-001-1327)

$

$

Not available

91

Cub Cadet YS-001-1328

Nut M8
(Superseded to BF-001-1328)

$

$

Not available

92

Cub Cadet YS-000-1806

Nut M8
(Superseded to BF-000-1806)

$

$

Not available

93

Cub Cadet YS-001-1332

Stand

$

$

Currently unavailable

Cub Cadet YS-950-465B

Decal "RT74"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-445B

Decal "CCY" large

Note: Not shown

$

$

Not available

Cub Cadet YS-950-188B

Decal "Manual side-shift"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-417B

Decal "CAUTION - Read operator's manual"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-209B

Decal "DANGER - Rotating blades hazard"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-109B

Decal "DANGER - Avoid injury from PTO"

Note: Not shown

$

$

Not available
