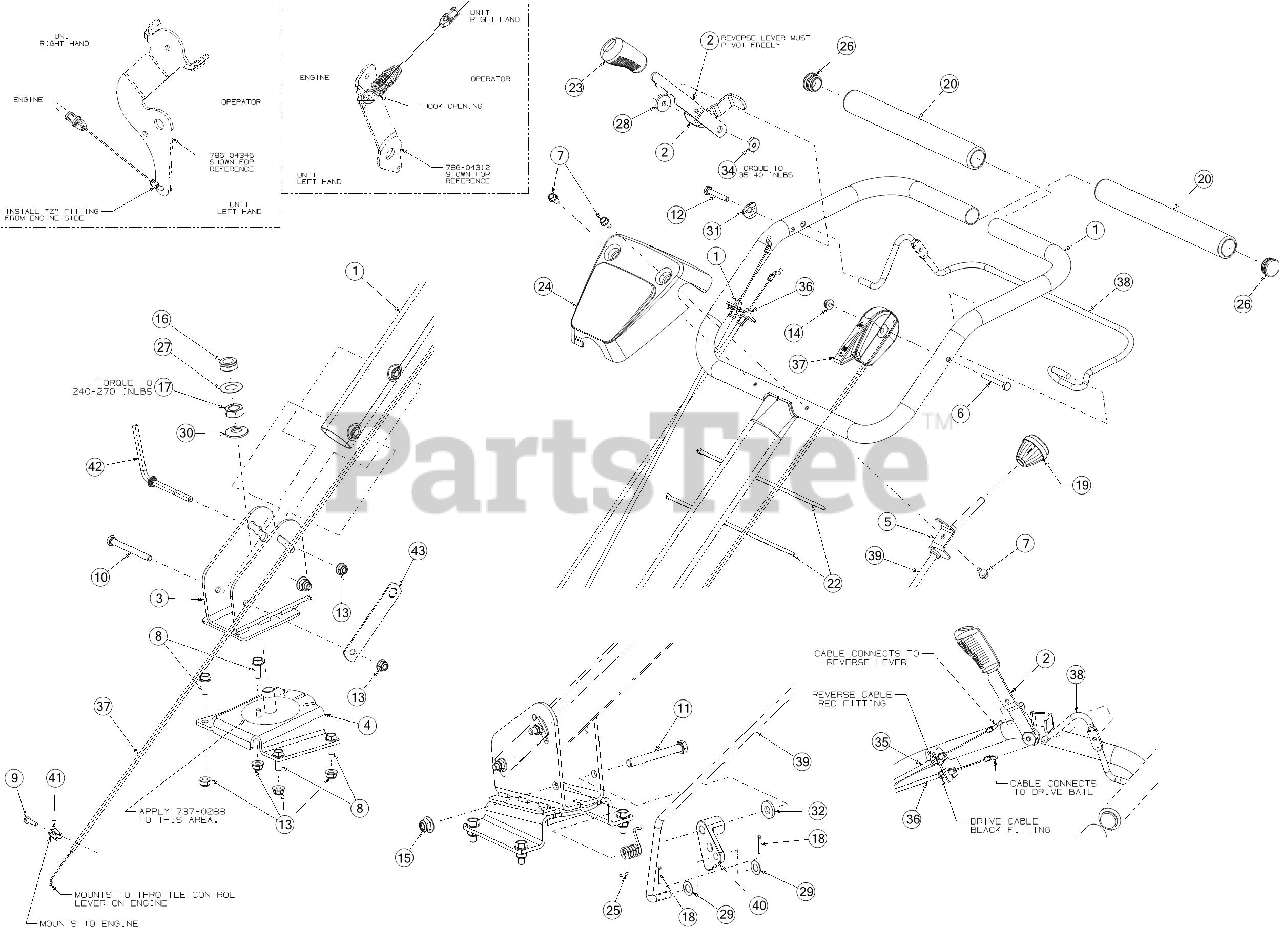

  • Title

1

Cub Cadet 649-05009-4021

UPPER HANDLE ASSEMBLY

$119.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 686-04135-4021

REVERSE HANDLE ASSEMBLY

$23.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 686-04141-4021

PIVOT BRACKET ASSEMBLY

$38.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 686-05001-4021

BRACKET ASSEMBLY

$73.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 786-05004-0637

PIVOT ROD BRACKET

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 731-1706

ROD CONTROL BUSHING

$30.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0501

SCREW 1/4-20 x 2 GR5

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 9

0

9

Cub Cadet 710-1887

SCREW #10-32 x .75

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3056

SCREW 5/16-18 x 3.25 GR5

$9.49

$

In Stock, only 1 left!

0

11

Cub Cadet 710-3130

SCREW 3/8-16 x 3.25 GR8

$9.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3288

BOLT 1/4-20X1.62 GR5

$6.49

$

In Stock, Qty 15

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 912-0413

HEX NUT
(Superseded to 712-0413)

$

$

Not available

17

Cub Cadet 712-3056

HEX JAM NUT 5/8-18

$4.49

$

In Stock, Qty 11

0

18

Cub Cadet 914-0507

COTTER PIN 3/32

$4.49

$

In Stock, Qty 19

0

19

Cub Cadet 920-0232

SHIFT KNOB

$9.99

$

In Stock, only 4 left!

0

20

Cub Cadet 720-0278A

FOAM GRIP .970 x 11.0

$21.99

$

In Stock, Qty 5

0

21

Cub Cadet 920-04173

GRIP

Note: (Not Shown)

$3.99

$

In Stock, Qty 5

0

22

Cub Cadet 726-04047

CABLE TIE

$3.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-04735

BRAKE HANDLE GRIP

$19.99

$

In Stock, only 3 left!

0

24

Cub Cadet 731-06253B

HANDLE COVER W/O SWITCH HOLE

$21.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 732-0493

HANDLE ADJUSTMENT SPRING

$15.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 735-04105A

END PLUG

$5.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 936-0167

FLAT WASHER

$6.49

$

In Stock, Qty 7

0

28

Cub Cadet 936-0176

FLAT WASHER
(Superseded to 736-0176)

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 936-0314

WASHER THRUST .375X.70X.030
(Superseded to 736-0314)

$

$

Not available

30

Cub Cadet 736-0317

BELL WASHER

$7.49

$

In Stock, Qty 20+

0

31

Cub Cadet 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 936-3004

FLAT WASHER
(Superseded to 736-3004)

$

$

Not available

33

GREASE

Note: (Not Serviced)

$

$

Not available

34

Cub Cadet 738-0440

SHOULDER SPACER

$5.49

$

In Stock, Qty 6

0

35

Cub Cadet 946-04504

REVERSE CABLE

$31.99

$

In Stock, Qty 14

0

36

Cub Cadet 946-04506

FORWARD CABLE

$33.99

$

In Stock, Qty 19

0

37

Cub Cadet 946-05084

THROTTLE CABLE ASSEMBLY

$53.99

$

In Stock, only 1 left!

0

38

Cub Cadet 747-04789A-0637

CLUTCH BAIL

$27.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 747-06135

PIVOT CONTROL ROD

$36.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 748-0375

HANDLE SWING LINK

$19.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 751B221535

CASING CLAMP

$9.49

$

In Stock, Qty 20+

0

42

Cub Cadet 786-0340B

CRANK ADJUST HANDLE

$17.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 786-04358

RETURN BRACKET

$9.99

$

Usually ships in 3-6 days

0
