RT HD (RSRHD154999KX) - Spartan 54" Zero-Turn Mower (SN: 400000000 - 999999999) Seat Suspension Assembly Parts Diagram

54" Zero-Turn Mower

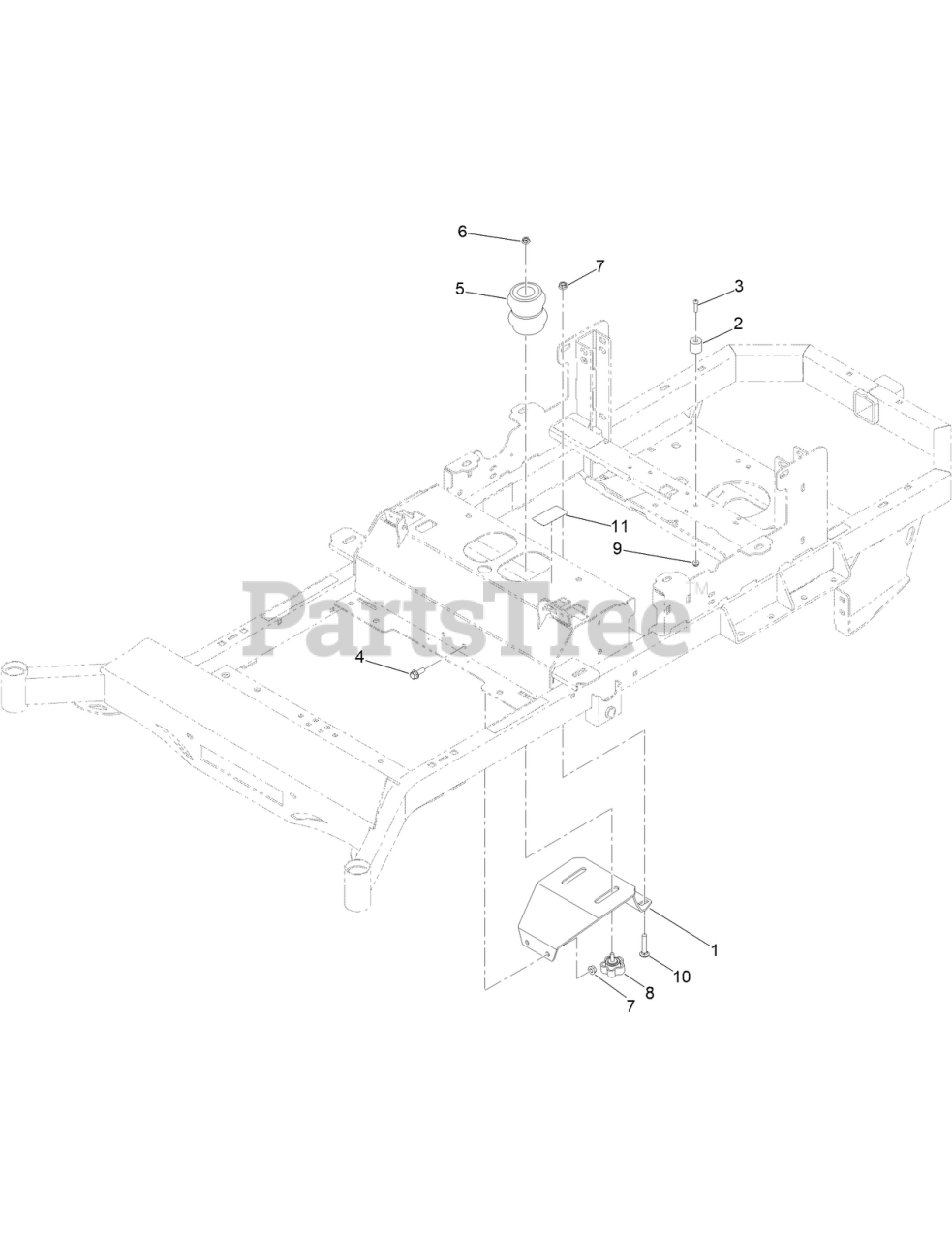

Seat Suspension Assembly Parts Diagram

  • Title

1

Toro 490-0021-00-05

MWR SEAT SUSP BRKT BLACK

$

$

Currently unavailable

2

Toro 729-1000-00

HOOD REST RUBBER BUMPER

$

$

Currently unavailable

3

Toro 418-0039-00

1/4-20 X 1 BUTTON SOCKET C/S 18-8 SS

$

$

Currently unavailable

4

Toro 131-2220

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 487-0003-00

SRT RR SUSP AND SEAT FT ELASTOMER TCB-3

$

$

Currently unavailable

6

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

7

Toro 413-0020-00

3/8-16 HEX FLANGE NUT W/SERR ZINC YELLOW

$

$

Currently unavailable

8

Toro 445-0006-00

5/16-18X3/4 SL 5-LOBE MALE KNOB 1.90 DIA

$

$

Currently unavailable

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

11

Toro 148-0857

DECAL-WEIGHT, SEAT

$

$

Currently unavailable
