RT Pro (RSRPR261730KT) - Spartan 61" Zero-Turn Mower (SN: 400000000 - 999999999) Transmission Assembly Parts Diagram

61" Zero-Turn Mower

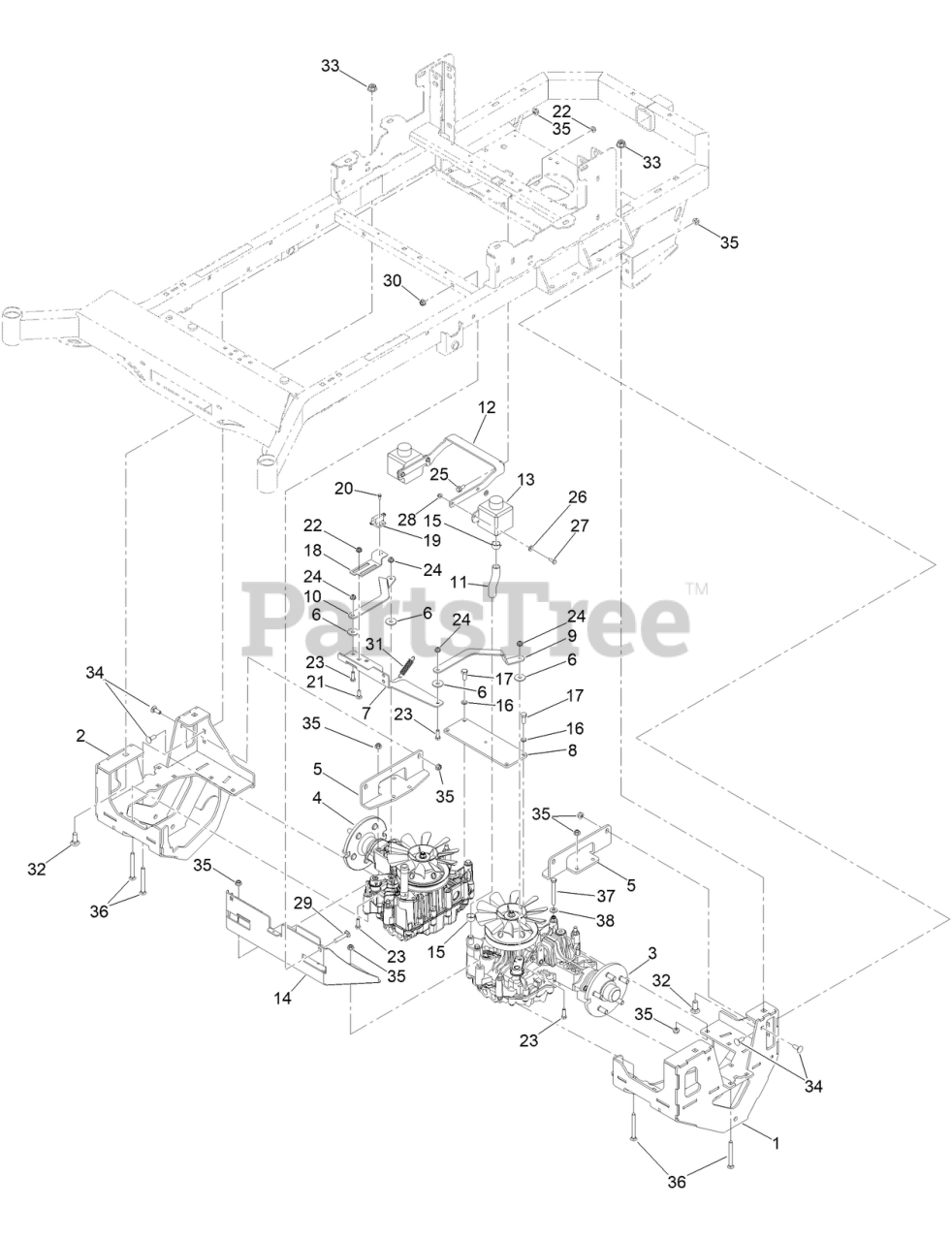

Transmission Assembly Parts Diagram

  • Title

1

Toro 148-1046-P11

HYDRO FRAME ASM, LH

$

$

Currently unavailable

2

Toro 148-1142-P11

HYDRO FRAME ASM, RH

$

$

Currently unavailable

3

Toro 450-0067-00

2023 TZT-13 LT SIDE HYDRO TRANSMISSION

$

$

Currently unavailable

4

Toro 450-0068-00

2023 TZT-13 RT SIDE HYDRO TRANSMN

$

$

Currently unavailable

5

Toro 148-1132-P11

BRACKET-SUPPORT, HYDRO

$

$

Currently unavailable

6

Toro 419-0028-00

FLT WASHER 1.25ODX.38IDX.125 THK PLA

$

$

Currently unavailable

7

Toro 439-0829-00-P11

TT13 BRAKE ROD BRACKET

$

$

Currently unavailable

8

Toro 426-0243-00-P11

TT13 TRANSMISSION MOUNT BRACE

$

$

Currently unavailable

9

Toro 426-0244-00-P11

TT13 BRAKE ROD PLATE LEFT SIDE

$

$

Currently unavailable

10

Toro 426-0242-00-P11

TT13 BRAKE ROD PLATE RIGHT SIDE

$

$

Currently unavailable

11

Toro 451-0001-00

MWR 5/8IN HYDRAULIC HOSE, 1FT

$

$

Currently unavailable

12

Toro 148-1157-P11

BRACKET-RESERVOIR

$

$

Currently unavailable

13

Toro 567-0002-00

RT-PRO TT13 1/4 LITER HYDR FLUID RESRV

$

$

Currently unavailable

14

Toro 439-0830-00-P11

TT13 BATTERY BOX MOUNT PLATE PAINTED

$

$

Currently unavailable

15

Toro 472-0013-00

22MM HOSE CLAMP (CTB-22ST-FK)

$

$

Currently unavailable

16

Toro 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

17

Toro 618-2100-00

M10 X 1.5 X 25MM TAP BOLT

$

$

Currently unavailable

18

Toro 439-0827-00-P11

TT13 BRAKE INTERLOCK BRACKET: PAINTED

$

$

Currently unavailable

19

Toro 486-0030-00

NO PLUNGER LIMIT SWITCH

$

$

Currently unavailable

20

Toro 418-0032-00

8-32 X 1/2 IND. HWH SLOT TYPE F TCS ZINC

$

$

Currently unavailable

21

Toro 418-0010-00

BOLT-CARR

$

$

Currently unavailable

22

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

23

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

24

Toro 413-0027-00

NUT-HF, NI

$

$

Currently unavailable

25

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

26

Toro 619-0010-50

1/4 FLAT WASHER BLACK 18-8 BLACK ZINC

$

$

Currently unavailable

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

30

Toro 413-0020-00

3/8-16 HEX FLANGE NUT W/SERR ZINC YELLOW

$

$

Currently unavailable

31

Toro 434-0003-00

MWR BRAKE PEDAL RELEASE SPRING

$

$

Currently unavailable

32

Toro 148-1262

SCREW-CARR,PATCH

$

$

Currently unavailable

33

Toro 413-1005-00

1/2-13 HEX FLANGE 2-WAY REV CNTR L/NYZ

$

$

Currently unavailable

34

Toro 418-0045-00

3/8-16 X 1 CARRIAGE BOLT YZ GR.8

$

$

Currently unavailable

35

Toro 413-0029-00

NUT-HEX

$

$

Currently unavailable

36

Toro 148-1182

SCREW-CARR

$

$

Currently unavailable

37

Toro 618-2073-00

3/8IN-16X3-1/4IN HEX HD CAP SCR

$

$

Currently unavailable

38

Toro 419-0007-00

WASHER-FLAT

$

$

Currently unavailable
