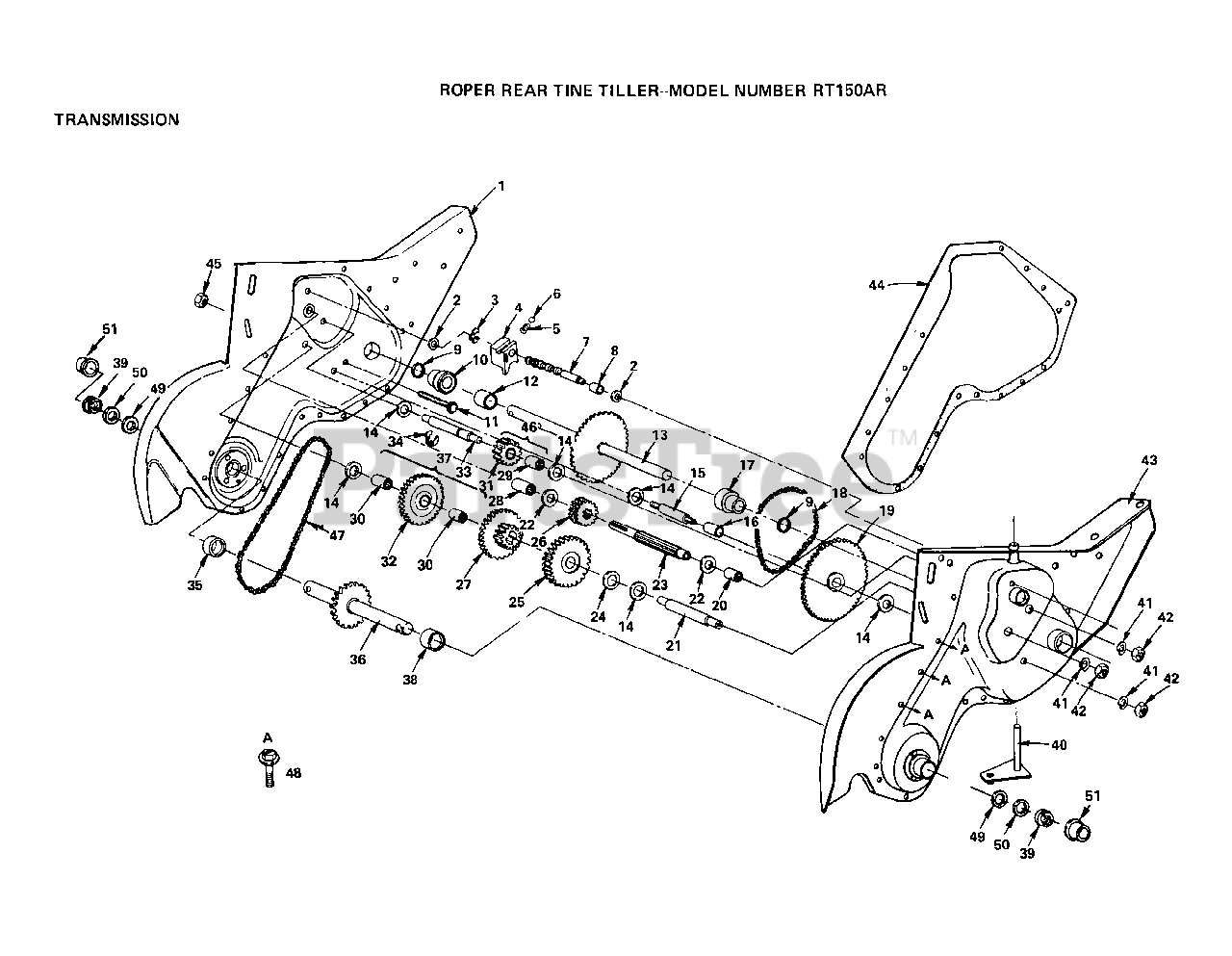

RT150 AR - Electrolux/AYP Tiller TRANSMISSION Parts Diagram

Tiller

TRANSMISSION Parts Diagram

  • Title

Electrolux/AYP 104894X

SUB= 155112

$

$

Not available

1

Electrolux/AYP 104895X

GEARCASE ASSY

$

$

Not available

2

Electrolux/AYP 102136X

WASHER SEAL CRT
(Superseded to 532102136)

$7.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 13

0

4

Electrolux/AYP 8353J

SHIFT FORK TI
(Superseded to 532008353)

$34.99

$

In Stock, Qty 10

0

5

Electrolux/AYP 100371K

SPRING-SHIFT CRT
(Superseded to 532100371)

$7.49

$

In Stock, Qty 14

0

6

Electrolux/AYP 7392M

SUB= 100482K
(Superseded to 532007392)

$

$

Not available

7

Electrolux/AYP 102109X

SHAFT SHIFT CRT

$

$

Not available

8

Electrolux/AYP 104159X

SPACER SPLIT CRT
(Superseded to 532104159)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 102128X

O RING CRT
(Superseded to 532102128)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 102100X

"CRT, BEARING"

$

$

Not available

11

Electrolux/AYP 102101X

SCRW WHIZ LOK CRT
(Superseded to 532102101)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 8364J

SUB= 106390X

$

$

Not available

13

Electrolux/AYP 102124X

SUB= 109204X

$

$

Not available

14

Electrolux/AYP 4358J

WASHER
(Superseded to 532004358)

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 102112X

SHFT 2ND RED. CRT
(Superseded to 532102112)

$27.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 102127X

SUB= 106388X

$

$

Not available

17

Electrolux/AYP 102106X

SUB= 918102106X
(Superseded to 532143008)

$

$

Not available

18

Electrolux/AYP 102134X

CHAIN CRT
(Superseded to 532102134)

$31.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 102121X

SPRCKT 8 GEAR CRT
(Superseded to 532102121)

$

$

Not available

20

Electrolux/AYP 4895H

"TI, BEARING"
(Superseded to 532004895)

$17.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 8358J

REDUCTION SHFT TI
(Superseded to 532008358)

$14.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 1370H

"T, BEARING"
(Superseded to 532001370)

$6.49

$

In Stock, Qty 17

0

23

Electrolux/AYP 4220R

BRNG RACE
(Superseded to 532004220)

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 102120X

SUB= 131527

$

$

Not available

26

Electrolux/AYP 102113X

PINION-INPUT CRT

$

$

Not available

27

Electrolux/AYP 8546J

CLUSTER GEAR TI
(Superseded to 532008546)

$

$

Not available

28

Electrolux/AYP 5020J

NEEDLE BRNG LT
(Superseded to 532005020)

$17.99

$

In Stock, Qty 17

0

29

Electrolux/AYP 6803J

NEEDLE BEARING TI
(Superseded to 532006803)

$10.99

$

In Stock, Qty 5

0

30

Electrolux/AYP 4422J

BEARING
(Superseded to 585695502)

$6.49

$

In Stock, Qty 14

0

31

Electrolux/AYP 102115X

GEAR-REV IDLR CRT
(Superseded to 532102115)

$17.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 102117X

SPROCKET ASSY

$

$

Not available

33

Electrolux/AYP 102111X

SHAFT CRT
(Superseded to 532102111)

$18.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 12000040

KLIP RING
(Superseded to 812000040)

$6.49

$

In Stock, only 1 left!

0

35

Electrolux/AYP 102129X

NLA

$

$

Not available

36

Electrolux/AYP 102131X

NLA

$

$

Not available

37

Electrolux/AYP 102116X

NLA

$

$

Not available

38

Electrolux/AYP 102130X

SUB= 106146X

$

$

Not available

39

Electrolux/AYP 102144X

RING SPIRAL CRT
(Superseded to 532102144)

$7.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 102107X

ARM ASSY CRT
(Superseded to 532102107)

$

$

Not available

41

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 73610700

NUT.ASF.HEX.7/16
(Superseded to 873610700)

$7.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 104896X

NLA

$

$

Not available

44

Electrolux/AYP 102137X

SUB= 106211X

$

$

Not available

45

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 102114X

GEAR ASSY CRT
(Superseded to 532102114)

$

$

Not available

47

Electrolux/AYP 102135X

NLA

$

$

Not available

48

Electrolux/AYP 17580408

SCREW CRT
(Superseded to 817580408)

$

$

Not available

49

Electrolux/AYP 9674R

SUB= 147344

$

$

Not available

50

Electrolux/AYP 9676R

SUB= 147344

$

$

Not available

51

Electrolux/AYP 9672R

CUP.FORMED.
(Superseded to 532155236)

$7.49

$

In Stock, Qty 10

0

Electrolux/AYP 6066J

GREASE PREMIUM-1
(Superseded to 585517301)

$

$

Not available
