RTSE100A3S - Generac Power Transfer Switch (SN: 5646560 - 5803916) (2010) 200A Transfer Switch Assembly (0G9701$-A) Parts Diagram

Power Transfer Switch

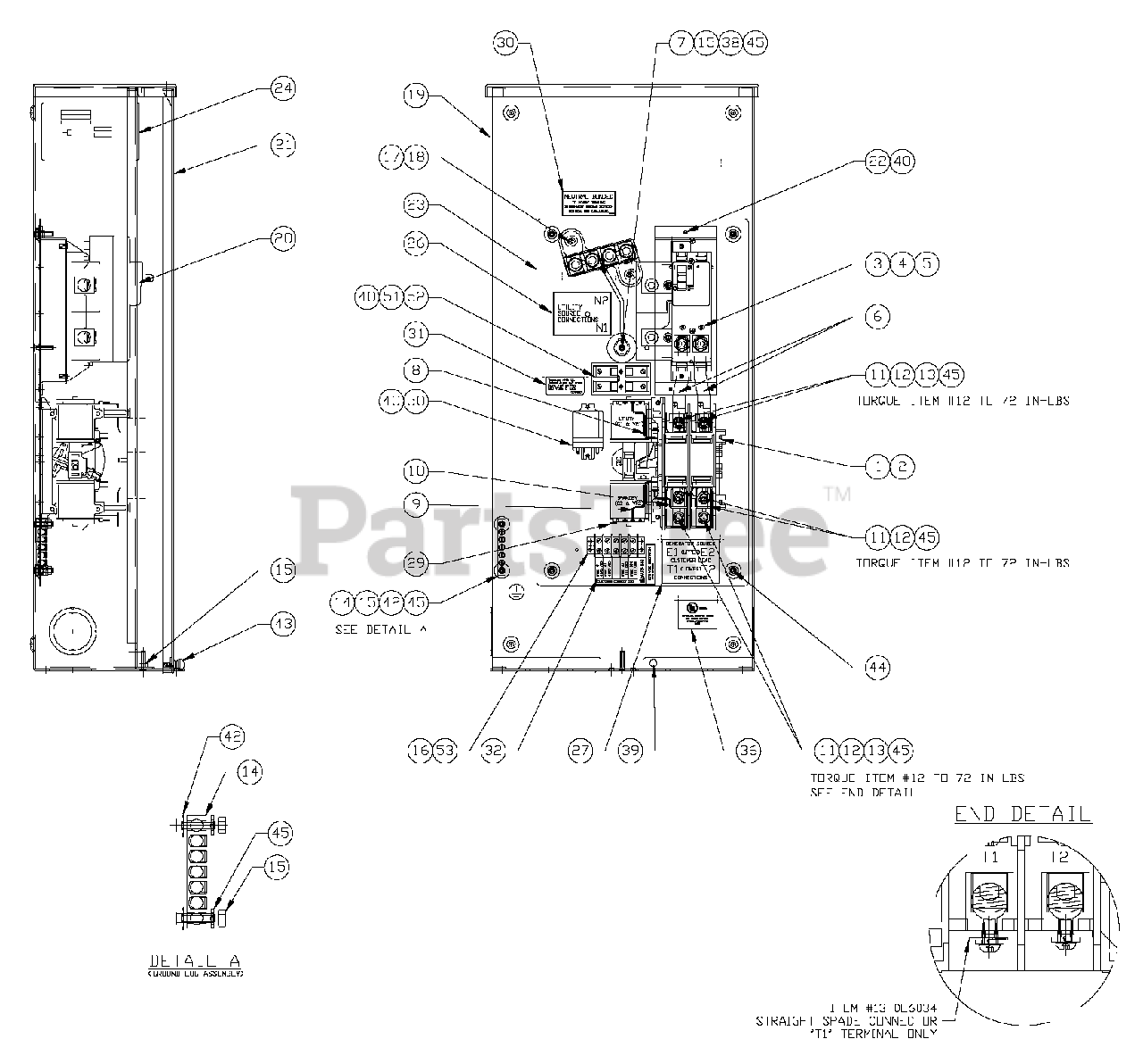

200A Transfer Switch Assembly (0G9701$-A) Parts Diagram

  • Title

1

Generac 0D9618

TRANSFER SW. HSB 200A 2P 250V

Note: ORDER REPL. PART 0L2911 INTERNAL COMPONENTS ALSO AVAILABLE 0E6154A STANDBY COIL 0E6154 UTILITY COIL LIMIT SWITCH 084464 QTY 2 PLASTIC COVER OVER TRANSFER MECH NEXT TO COILS 0F20780SRV CLIP FOR PLASTIC COVER 0F2078WSRV SPADE CONNECTOR KIT 0G10380SRV WHICH INCLUDES 2 EA OF 0E6032,0E6033, AND 0E6034 0C2237BSRV RETAINING CLIP 0G10010SRV (2) PLUNGERS AND CLIP FOR COILS

$

$

Not available

2

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

3

Generac 0E3628

CB 0200A 2P 240V S QN2 LL

$610.99

$

Usually ships in 2-12 days

0

4

Generac 0E3664

BASE, QN CIRCUIT BREAKER

$519.99

$

In Stock, only 1 left!

0

5

Generac 036918

SCREW PPHM #8-32 X 1/2

$

$

Not available

6

Generac 0G9299

WIRE, 3/0 N1,N2

$

$

Currently unavailable

7

Generac 0G9424

WIRE, NEUTRAL BONDING 6AWG

$

$

Currently unavailable

8

Generac 0E6303

WIRE-A

$2.99

$

Usually ships in 2-12 days

0

9

Generac 0E6303A

WIRE-B

$55.99

$

Usually ships in 2-12 days

0

10

Generac 0E6303D

WIRE-E1

$51.99

$

Usually ships in 2-12 days

0

11

Generac 0E3375

LUG SOLDERLESS 250-#6 AL/CU

$29.99

$

Usually ships in 2-12 days

0

12

Generac 0F1252

SCREW BHSC 1/4-20 X 3/8

$1.49

$

Usually ships in 2-12 days

0

13

Generac 0E6034

STRAIGHT SPADE CONNECTOR

Note: USE 0G10380SRV

$1.99

$

Usually ships in 2-12 days

0

14

Generac 0G6320

GROUND BAR (5) 2-14 AWG CONN

$38.50

$

Usually ships in 2-12 days

0

15

Generac 085889

NUT HEX 1/4-20 SS

$

$

Not available

16

Generac 0A1661

RIVET, POP .156 X .67

$0.99

$

Usually ships in 2-12 days

0

17

Generac 0E3717A

ASSY-NEUT BLK 200-400A W/TAP

Note: ORDER 0E3717ASRV

$

$

Not available

18

Generac 090388

SCREW HHTT M6-1.0 X 12 MM
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

19

Generac 0H10860AL14

ENCLOSURE, 200A SE XFER SW

Note: CANNOT BE SOLD SEPARATE FOR ENTIRE ENCLOSURE: GENERAC ORDER 0G9657 SIEMENS ORDER 0G9767

$

$

Currently unavailable

20

Generac 0G97730AL14

COVER, INSIDE 200A DUAL BREAKER

$232.99

$

Usually ships in 2-12 days

0

21

Generac 0H10870AL14

COVER, TRANSFER SWITCH

Note: FOR ENTIRE ENCLOSURE: GENERAC ORDER 0G9657 SIEMENS ORDER 0G9767

$222.99

$

Usually ships in 2-12 days

0

22

0G93000AL14

CB BRKT 200A TRANSFER SWITCH SIEM

$

$

Not available

23

0G9650

SUBPLATE, 200A SE XFER SW

$

$

Not available

24

0G3369A

DECAL, TRANSFER SWITCH DATA

$

$

Not available

26

0H1765A

DECAL, UTILITY SOURCE CONNECTION

$

$

Not available

27

0H1765B

DECAL, GENERATOR/ CUSTOMER CONN

$

$

Not available

29

Generac 0G8535

DECAL, TRANSFER SWITCH INFO

$2.49

$

Usually ships in 2-12 days

0

30

Generac 0G4220

DECAL, NEUTRAL CONNECTION

$1.99

$

Usually ships in 2-12 days

0

31

Generac 0D3587

DECAL, FUSE REPLACEMENT

$0.99

$

Usually ships in 2-12 days

0

32

Generac 0C2262

DECAL, TERMINAL STRIP

$1.49

$

Usually ships in 2-12 days

0

36

Generac 0G0900

DECAL, UL LIST HSB

$0.99

$

Usually ships in 2-12 days

0

38

Generac 026902

SCREW HHTT #8-32 X 1/4 CZ
(Superseded to G026902)

$0.99

$

Usually ships in 2-12 days

0

39

Generac 058000E

NUT TRIC 1/4-20 X .525

$12.99

$

Usually ships in 2-12 days

0

40

Generac 0A1495

SCREW HHTT M4-0.7 X 10 BP

$0.99

$

Usually ships in 2-12 days

0

42

Generac 026850

WASHER SHAKEPROOF EXT 1/4 STL

$

$

Not available

43

Generac 0E7213

THUMB SCREW 1/4-20x1/2

$

$

Not available

44

Generac 0G8411

NUT HEX FL WHIZ 1/4-20

$0.99

$

Usually ships in 2-12 days

0

45

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

50

Generac 063617

RELAY PNL 12VDC DPDT
(Superseded to G063617)

$38.99

$

Usually ships in 2-12 days

0

51

Generac 0D2806

FUSEBLOCK 30A 600V 2 POLE

$40.99

$

Usually ships in 2-12 days

0

52

Generac 073590A

FUSE 5A X BUSS HLDR73591

$8.99

$

In Stock, only 1 left!

0

53

Generac 0H1605

BLOCK TERM 20A 5 X 6 X 1100V

$10.99

$

Usually ships in 2-12 days

0
