RTSE200A3 - Generac Power Transfer Switch (SN: 4819670 - 4822045) (2007) 200A Transfer Switch Assembly (0G4464$-A) Parts Diagram

Power Transfer Switch

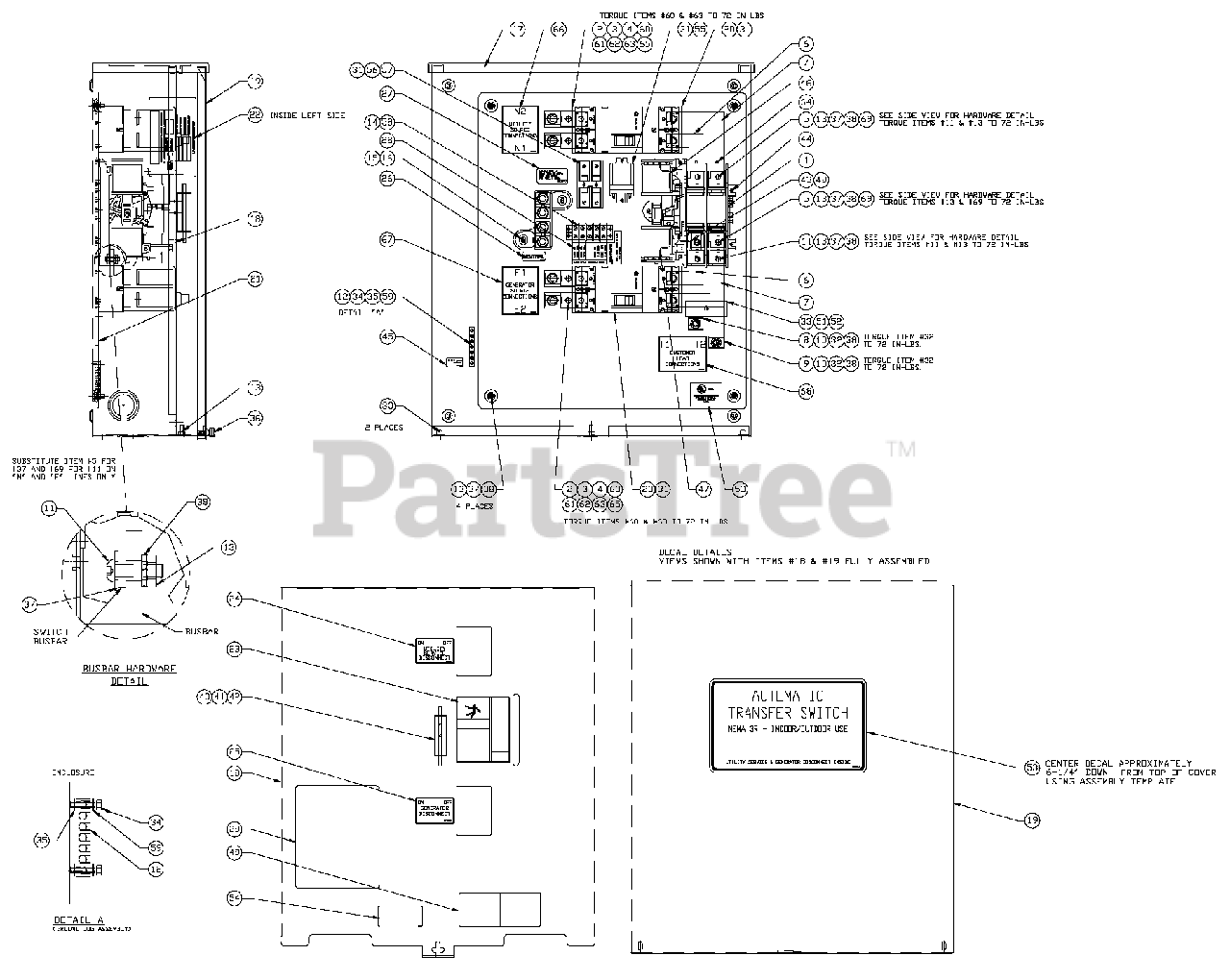

200A Transfer Switch Assembly (0G4464$-A) Parts Diagram

  • Title

1

Generac 0D9618

TRANSFER SW. HSB 200A 2P 250V

Note: ORDER REPL. PART 0L2911 INTERNAL COMPONENTS ALSO AVAILABLE 0E6154A STANDBY COIL 0E6154 UTILITY COIL LIMIT SWITCH 084464 QTY 2 PLASTIC COVER OVER TRANSFER MECH NEXT TO COILS 0F20780SRV CLIP FOR PLASTIC COVER 0F2078WSRV SPADE CONNECTOR KIT 0G10380SRV WHICH INCLUDES 2 EA OF 0E6032,0E6033, AND 0E6034 0C2237BSRV RETAINING CLIP 0G10010SRV (2) PLUNGERS AND CLIP FOR COILS

$

$

Not available

2

Generac 0G4478

CIRCUIT BREAKER, 200A 2-POLE

Note: NO LONGER COMES WITH COVER AND SCREWS. IF NEEDED ORDER P/N 0K3606 QTY 1 COVER AND P/N 0D96180010 QTY 1

$383.99

$

Usually ships in 2-12 days

0

3

Generac 0F8843

BUSBAR, 200A LUG ADAPTER

$29.99

$

Usually ships in 2-12 days

0

4

Generac 0F8451

LUG 300 MCM-6STR

$16.99

$

Usually ships in 2-12 days

0

5

Generac 0G4413

SPACER 200 AMP TRANSFER

$10.99

$

Usually ships in 2-12 days

0

6

Generac 0G4414

BUSBAR, 200A HSB XFER SW N1-E1

$35.99

$

Usually ships in 2-12 days

0

7

Generac 0G4415

BUSBAR, 200A HSB XFER SW N2-E2

$51.99

$

Usually ships in 2-12 days

0

8

Generac 0G4416

BUSBAR, 200A HSB XFER SW T1

$

$

Not available

9

Generac 0G4417

BUSBAR, 200A HSB XFER SW T2

$

$

Not available

10

Generac 0E3375

LUG SOLDERLESS 250-#6 AL/CU

$29.99

$

Usually ships in 2-12 days

0

11

Generac 0G3976

SCREW BHSC 1/4-20 X 3/4"

$0.99

$

Usually ships in 2-12 days

0

12

Generac 0E6523

GROUND BAR (5) 4-14 AWG CONN

$20.99

$

Usually ships in 2-12 days

0

13

Generac 085889

NUT HEX 1/4-20 SS

$

$

Not available

14

Generac 0A1661

RIVET, POP .156 X .67

$0.99

$

Usually ships in 2-12 days

0

15

Generac 0C4449A

ASS'Y NEUTRAL BLOCK 200A

Note: ORDER 0C4449ASRV

$

$

Not available

16

Generac 090388

SCREW HHTT M6-1.0 X 12 MM
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

17

Generac 0G49780AL08

ENCLOSURE, 200A SE XFER SW

$713.99

$

Usually ships in 2-12 days

0

18

Generac 0G52630AL08

COVER, INSIDE 200A DUAL BREAKER

$194.99

$

Usually ships in 2-12 days

0

19

Generac 0G49790AL08

COVER, TRANSFER SWITCH

$179.99

$

Usually ships in 2-12 days

0

20

Generac 0G44200AL08

RISER, CIRCUIT BREAKER

Note: ORDER P/N 0H1485

$53.99

$

Usually ships in 2-12 days

0

21

Generac 0G52620AL08

SUBPLATE, 200A SE XFER SW

$

$

Not available

22

0E3477

DECAL, DATA

$

$

Not available

0G4590

DECAL, TRANSFER SWITCH DATA

$

$

Not available

23

Generac 0E3484

DECAL, MANUAL OPERATING HANDLE

$24.99

$

Usually ships in 2-12 days

0

24

Generac 0F9969

DECAL, UTILITY DISCONNECT

$3.99

$

Usually ships in 2-12 days

0

25

Generac 0F9970

DECAL, GENERATOR DISCONNECT

$

$

Not available

26

Generac 0A9457

DECAL, NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

27

Generac 0D3587

DECAL, FUSE REPLACEMENT

$0.99

$

Usually ships in 2-12 days

0

28

Generac 0C2262

DECAL, TERMINAL STRIP

$1.49

$

Usually ships in 2-12 days

0

29

Generac 0G4591

DECAL, TEST SEQUENCE

$1.99

$

Usually ships in 2-12 days

0

30

Generac 058000E

NUT TRIC 1/4-20 X .525

$12.99

$

Usually ships in 2-12 days

0

31

Generac 0A1495

SCREW HHTT M4-.7 X 10 BP

$0.99

$

Usually ships in 2-12 days

0

32

Generac 0G5479

SCREW BHSC 1/4-20X1/2

$0.99

$

Usually ships in 2-12 days

0

33

Generac 097872

SCREW HHTT M6-1.0 X 35 YC

$

$

Not available

34

Generac 0C6748

NUT HEX LOCK M4-0.7 SS NYL INS

$8.99

$

Usually ships in 2-12 days

0

35

Generac 026579

WASHER SHAKEPROOF EXT #8 STEEL

$

$

Not available

36

Generac 0E7213

THUMB SCREW 1/4-20x1/2

$

$

Not available

37

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

38

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

39

Generac 0G4485

WIRING HARNESS HSB (NOT SHOWN)

$115.99

$

Usually ships in 2-12 days

0

40

Generac 0E6193

BRACKET, ARM EXTENDER

$2.49

$

Usually ships in 2-12 days

0

41

Generac 0D6162

RIVET POP .156 X .362 AL

$0.99

$

Usually ships in 2-12 days

0

42

Generac 0E6155

ARM EXTENDER PIN

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1

$16.99

$

In Stock, only 1 left!

0

43

Generac 0E6033

90%%D LOWER SPADE CONNECTOR

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1. USE 0G10380SRV

$

$

Currently unavailable

44

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

45

Generac 067210A

DECAL, GROUNDING LUG

$0.99

$

Usually ships in 2-12 days

0

46

Generac 0E6303

WIRE-A

$2.99

$

Usually ships in 2-12 days

0

47

Generac 0E6303A

WIRE-B

$55.99

$

Usually ships in 2-12 days

0

48

Generac 0E6303B

WIRE-E1

$2.99

$

Usually ships in 2-12 days

0

49

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

50

Generac 0G0900

DECAL-UL LIST HSB

$0.99

$

Usually ships in 2-12 days

0

51

Generac 0G4106

BLOCK, BUSBAR COVER

$57.99

$

Usually ships in 2-12 days

0

52

Generac 0F9856

BLOCK, BUS BAR

$184.99

$

Usually ships in 2-12 days

0

53

Generac 0G0242

DECAL,FRNT CVR ATS 3R SER DIS

$2.99

$

Usually ships in 2-12 days

0

54

Generac 0G3274

DECAL LIVE CIRCUIT ENG/FRN/SPN

$12.99

$

Usually ships in 2-12 days

0

55

Generac 063617

RELAY PNL 12VDC DPDT
(Superseded to G063617)

Note: SUPPLIED WITH HARNESS ITEM #39

$38.99

$

Usually ships in 2-12 days

0

56

Generac 0D2806

FUSEBLOCK 30A 600V 2 POLE

Note: SUPPLIED WITH HARNESS ITEM #39

$40.99

$

Usually ships in 2-12 days

0

57

Generac 073590A

FUSE 5A X BUSS HLDR73591

$8.99

$

In Stock, only 1 left!

0

58

Generac 048850

BLOCK TERM 20A 5 X 6 X 1100V

Note: SUPPLIED WITH HARNESS ITEM #39

$

$

Not available

59

Generac 043180

WASHER FLAT M4

$

$

Not available

60

Generac 049897

SCREW SHC M8-1.25 X 20 G8

$

$

Not available

61

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

62

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

63

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 7

0

64

Generac 026902

SCREW HHTT #8-32 X 1/4 CZ
(Superseded to G026902)

$0.99

$

Usually ships in 2-12 days

0

65

Generac 053640

SCREW RHM #8-32 X 3-1/2

$

$

Not available

66

Generac 0G4197

DECAL,UTILITY SOURCE CONN

$

$

Currently unavailable

67

Generac 0G4198

DECAL,GENERATOR SOURCE CONN

$

$

Currently unavailable

68

Generac 0G4199

DECAL,CUSTOMER LOAD CONN

$

$

Currently unavailable

69

Generac 024334

BOLT CARR 1/4-20 X 1"

$

$

Not available

70

Generac 064761

TIE WRAP UL 5.6 X .10 NATL 9 (NOT SHOWN)

$

$

Not available
