RTSN200A3 - Generac Power Transfer Switch (SN: 4158698 - 5722513) (2007) 200A Transfer Switch Assembly (0F6769$-A) Parts Diagram

Power Transfer Switch

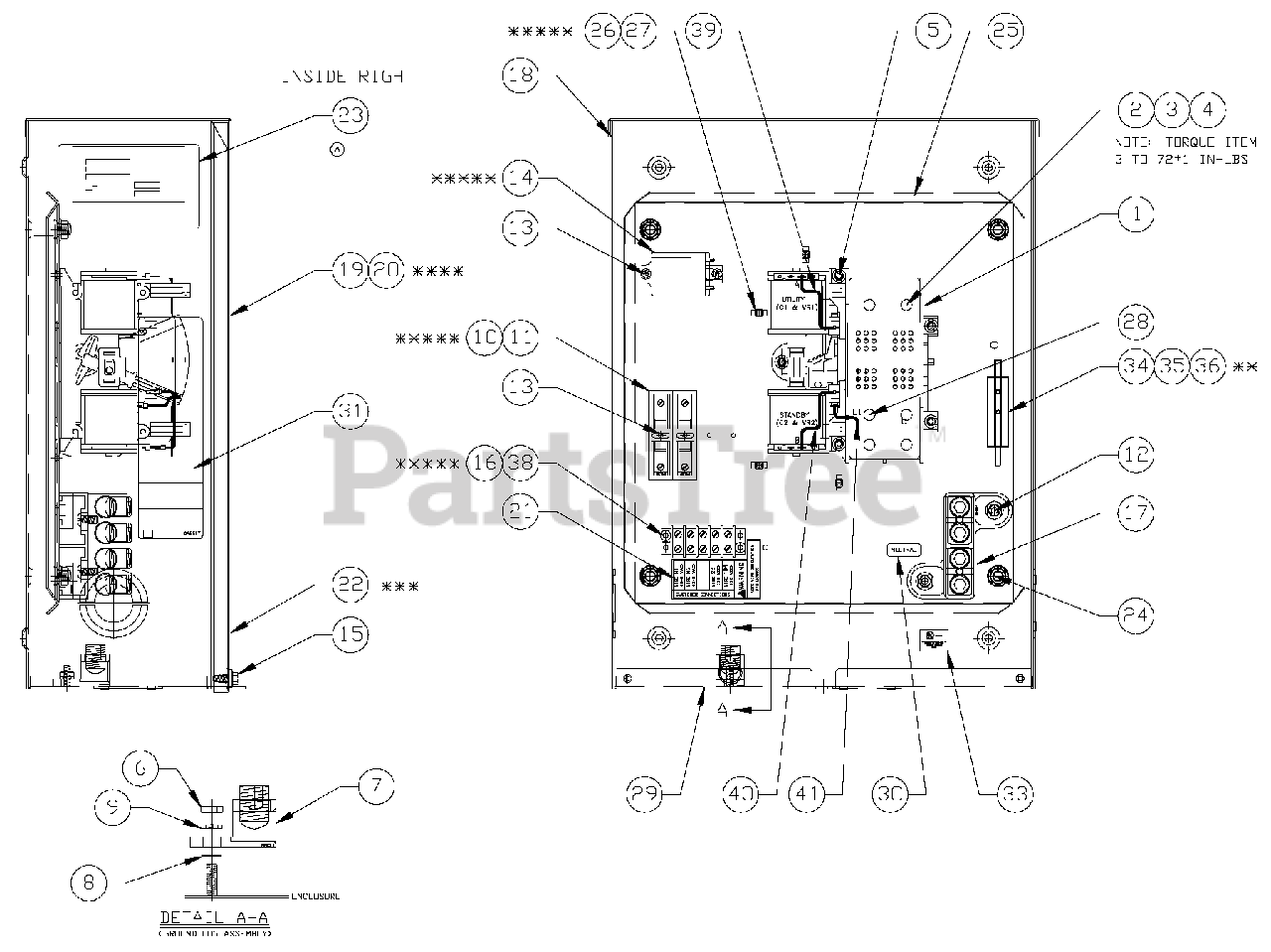

200A Transfer Switch Assembly (0F6769$-A) Parts Diagram

  • Title

1

Generac 0D9618

TR SW-HSB 200A 2P 250V

Note: ORDER REPL. PART 0L2911 INTERNAL COMPONENTS ALSO AVAILABLE 0E6154A STANDBY COIL 0E6154 UTILITY COIL LIMIT SWITCH 084464 QTY 2 PLASTIC COVER OVER TRANSFER MECH NEXT TO COILS 0F20780SRV CLIP FOR PLASTIC COVER 0F2078WSRV SPADE CONNECTOR KIT 0G10380SRV WHICH INCLUDES 2 EA OF 0E6032,0E6033, AND 0E6034 0C2237BSRV RETAINING CLIP 0G10010SRV (2) PLUNGERS AND CLIP FOR COILS

$

$

Not available

2

Generac 0E3375

LUG SLDLSS 250-#6 AL/CU

$29.99

$

Usually ships in 2-12 days

0

3

Generac 0F1252

SCREW BHSC 1/4-20 X 3/8

$1.49

$

Usually ships in 2-12 days

0

4

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

5

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

6

Generac 045771

NUT HEX M8-1.25 G8 YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 7

0

7

Generac 057329

LUG SLDLSS 350-#6 X 13/32 AL/CU

$

$

Not available

8

Generac 027482

WASHER SHAKEPROOF EXT 5/16 STL

$

$

Not available

9

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

10

Generac 073590A

FUSE 5A X BUSS

$8.99

$

In Stock, only 1 left!

0

11

Generac 073591

FUSE HOLDER

Note: SUPPLIED WITH HARNESS (P/N 0F6767)

$

$

Not available

12

Generac 090388

SCREW HHTT M6-1.0 X 12 ZINC
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

13

Generac 0A1495

SCREW HHTT M4-0.7 X 10 BP

$0.99

$

Usually ships in 2-12 days

0

14

Generac 063617

RELAY PNL 12VDC DPDT 10A@240VA
(Superseded to G063617)

Note: SUPPLIED WITH HARNESS (P/N 0F6767)

$38.99

$

Usually ships in 2-12 days

0

15

Generac 0C2454

SCREW TH-FRM M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

16

Generac 0A1661

RIVET POP .156 X .675 AL

$0.99

$

Usually ships in 2-12 days

0

17

Generac 0C4449A

ASS'Y-NTRL BL150-200A

Note: ORDER 0C4449ASRV

$

$

Not available

18

Generac 0E6057

WELDMENT XFER SW BOX HSB

Note: NOT AVAILABLE IN ALUMINUM

$766.99

$

Usually ships in 2-12 days

0

19

Generac 0E6056

COVER TRANSFER SWITCH BOX HSB

Note: NOT AVAILABLE IN ALUMINUM

$295.99

$

Usually ships in 2-12 days

0

20

Generac 0F6521

DECAL TRANSFER SWITCH RTS (NOT SHOWN)

Note: NOT SHOWN ON THIS ASSEMBLY, CENTER DECAL ON FRONT OF COVER, 7" FROM TOP OF ENCLOSURE.

$11.99

$

Usually ships in 2-12 days

0

21

Generac 0C2262

DECAL TERMINAL STRIP

$1.49

$

Usually ships in 2-12 days

0

22

Generac 095282

DECAL-LIVE CIRCUIT

Note: PLACE DECAL ON OUTSIDE OF COVER, LOWER RIGHT CORNER.

$

$

Not available

23

Generac 0E8443

DECAL SWITCH RATING

$

$

Currently unavailable

0G3564

DECAL TRANSFER SWITCH DATA 200

$

$

Not available

24

Generac 064101

NUT LOCK FL 3/8-16
(Superseded to G064101)

$1.99

$

In Stock, Qty 10

0

25

Generac 0E6055

SUBPLT TRANSFER SWITCH HSB

$191.99

$

Usually ships in 2-12 days

0

26

Generac 063378

HOLDER CABLE TIE

Note: SUPPLIED WITH HARNESS (P/N 0F6767)

$

$

Not available

27

Generac 028739

TIE WRAP UL 3.9" X .10" NATL

Note: SUPPLIED WITH HARNESS (P/N 0F6767)

$

$

Not available

28

Generac 0E6033

90 DEGREE DN SPADE CONNECTOR

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1.. USE 0G10380SRV

$

$

Currently unavailable

29

Generac 067210A

DECAL GROUND LUG

$0.99

$

Usually ships in 2-12 days

0

30

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

31

Generac 0A9517

DECAL MANUAL 5A FUSE

$2.49

$

Usually ships in 2-12 days

0

32

Generac 0E6190

DECAL TEST SEQUENCE 2P TS 3R (NOT SHOWN)

Note: CENTER DECAL ON INSIDE OF THE COVER (ITEM #19)

$3.49

$

Usually ships in 2-12 days

0

33

Generac 081221

DECAL-UL LIST HSB

$

$

Not available

34

Generac 0E6193

BRACKET ARM EXTENDER

$2.49

$

Usually ships in 2-12 days

0

35

Generac 064526

SCREW HWHS #6-25 X 3/8 ZNC
(Superseded to G064526)

$0.99

$

Usually ships in 2-12 days

0

36

Generac 0E6155

ARM EXTENDER PIN

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1.

$16.99

$

In Stock, only 1 left!

0

37

Generac 0F6767

HARNESS 100/200 2P RTS (NOT SHOWN)

Note: CUSTOMER SHOULD ORDER PART NUMBER 0G6025.

$

$

Not available

38

Generac 048850

BLOCK TERM 20A 5 X 6 X 1100V

Note: SUPPLIED WITH HARNESS (P/N 0F6767)

$

$

Not available

39

Generac 0E6303

WIRE A

$2.99

$

Usually ships in 2-12 days

0

40

Generac 0E6303A

WIRE B

$55.99

$

Usually ships in 2-12 days

0

41

Generac 0E6303B

WIRE E1

$2.99

$

Usually ships in 2-12 days

0
