RTSS200A3C - Generac Power Transfer Switch (SN: 5068858 - 6052361) (2016) 200A Load Shed Transfer Switch Assembly (0G8659$-A) Parts Diagram

Power Transfer Switch

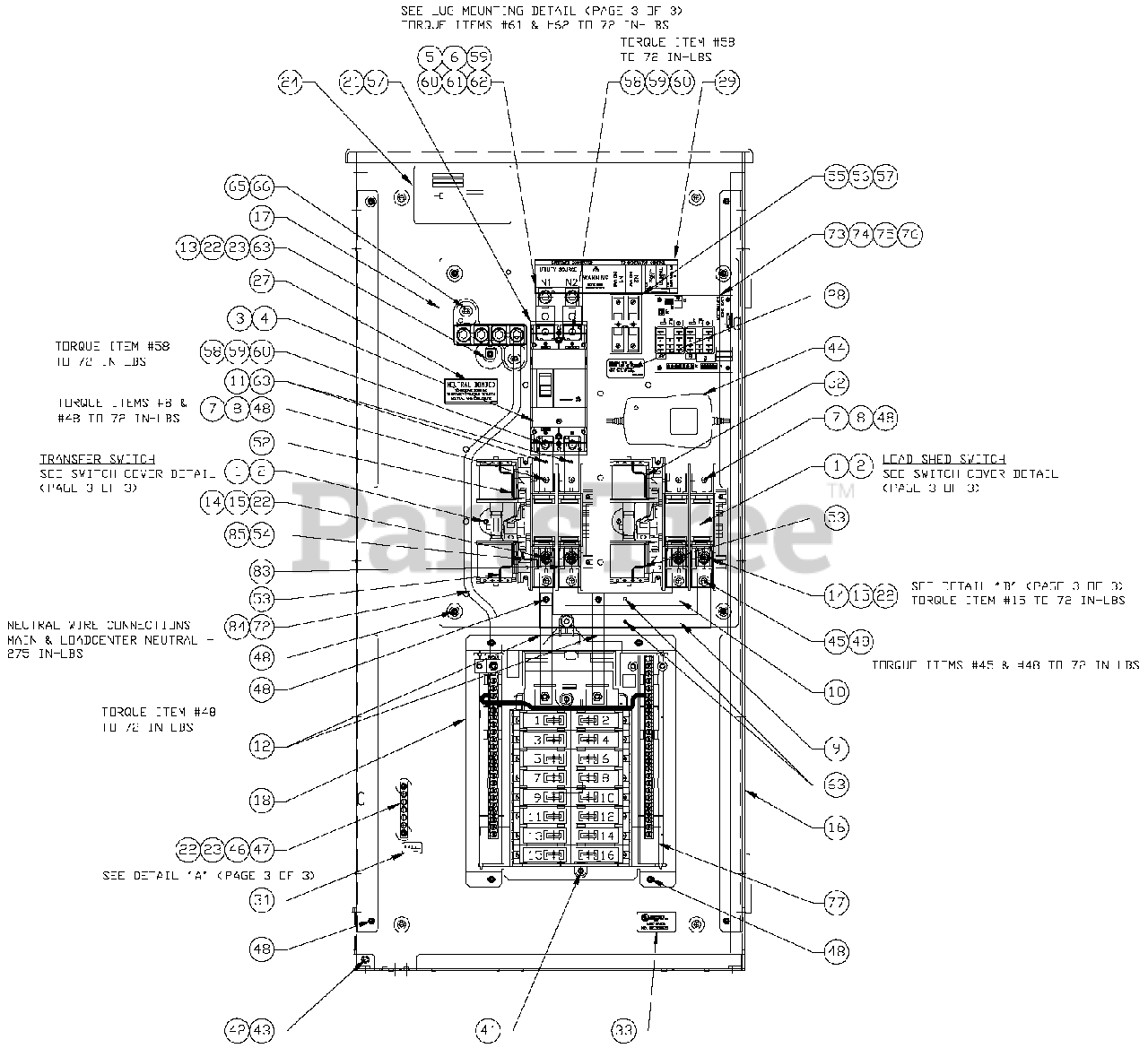

200A Load Shed Transfer Switch Assembly (0G8659$-A) Parts Diagram

  • Title

1

Generac 0D9618

TRANSFER SW. HSB 200A 2P 250V

Note: ORDER REPL. PART 0L2911 INTERNAL COMPONENTS ALSO AVAILABLE 0E6154A STANDBY COIL 0E6154 UTILITY COIL LIMIT SWITCH 084464 QTY 2 PLASTIC COVER OVER TRANSFER MECH NEXT TO COILS 0F20780SRV CLIP FOR PLASTIC COVER 0F2078WSRV SPADE CONNECTOR KIT 0G10380SRV WHICH INCLUDES 2 EA OF 0E6032,0E6033, AND 0E6034 0C2237BSRV RETAINING CLIP 0G10010SRV (2) PLUNGERS AND CLIP FOR COILS

$

$

Not available

2

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

3

Generac 0G4478

CIRCUIT BREAKER, 200A 2-POLE

Note: NO LONGER COMES WITH COVER AND SCREWS. IF NEEDED ORDER P/N 0K3606 QTY 1 COVER AND P/N 0D96180010 QTY 1

$383.99

$

Usually ships in 2-12 days

0

4

Generac 053640

SCREW RHM #8-32 X 3-1/4

$

$

Not available

5

Generac 0F8843

BUSBAR, 200A LUG ADAPTER

$29.99

$

Usually ships in 2-12 days

0

6

Generac 0F8451

LUG 300 MCM-6STR

$16.99

$

Usually ships in 2-12 days

0

7

Generac 0G4413

SPACER 200 AMP TRANSFER

$10.99

$

Usually ships in 2-12 days

0

8

Generac 024334

BOLT CARR 1/4-20 X 1"

$

$

Not available

9

Generac 0G7847

BUSBAR, 200A TRANSFER SW T1

$80.99

$

Usually ships in 2-12 days

0

10

Generac 0G7848

BUSBAR, 200A TRANSFER SW T2

$51.99

$

Usually ships in 2-12 days

0

11

Generac 0G6352

BUSBAR, 200A TRANSFER SW N1,N2

$19.99

$

Usually ships in 2-12 days

0

12

Generac 0G8413

BUSBAR, PANELBOARD INTERCONNECTION

$27.99

$

Usually ships in 2-12 days

0

13

Generac 0G6417

BUSBAR, NEUTRAL BLOCK

$11.99

$

In Stock, only 2 left!

0

14

Generac 0E3375

LUG SOLDERLESS 250-#6 AL/CU

$29.99

$

Usually ships in 2-12 days

0

15

Generac 0F1252

SCREW BHSC 1/4-20 X 3/8

$1.49

$

Usually ships in 2-12 days

0

16

Generac 0G78110AL14

ENCLOSURE,LOAD SHED TRANSFER SWITCH

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$1675.99

$

Usually ships in 2-12 days

0

17

Generac 0G78120GS0R

SUBPLATE, PANELBOARD

$144.99

$

Usually ships in 2-12 days

0

18

Generac 0G78130GS0R

SUBPLATE, LOADCENTER

$68.99

$

Usually ships in 2-12 days

0

21

Generac 0G44200AL14

CB BRKT 200A TRANSFER SWITCH

Note: ORDER P/N 0H1485

$

$

Not available

22

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

23

Generac 085889

NUT HEX 1/4-20 SS

$

$

Not available

24

0G8575A

DECAL,LOAD SHED DATA 200A

$

$

Not available

27

Generac 0G4220

DECAL, NEUTRAL CONNECTION

$1.99

$

Usually ships in 2-12 days

0

28

Generac 0D3587

DECAL, FUSE REPLACEMENT

$0.99

$

Usually ships in 2-12 days

0

29

Generac 0G8257

DECAL, CUSTOMER CONNECTION

$5.50

$

Usually ships in 2-12 days

0

31

Generac 067210A

DECAL, GROUNDING LUG

$0.99

$

Usually ships in 2-12 days

0

33

Generac 0E4987

DECAL-UL PANELBOARD

$0.99

$

Usually ships in 2-12 days

0

41

Generac 066849

SCREW HHTT M5-0.8 X 16
(Superseded to G066849)

$0.99

$

In Stock, Qty 10

0

42

Generac 058000E

NUT TRIC 1/4-20 X .525

$12.99

$

Usually ships in 2-12 days

0

43

Generac 0E7213

THUMB SCREW 1/4-20x1/2

$

$

Not available

44

Generac 0G8783

BATTERY CHARGER ASSEMBLY

$222.99

$

Usually ships in 2-12 days

0

45

Generac 0G3976

SCREW BHSC 1/4-20 X 3/4

$0.99

$

Usually ships in 2-12 days

0

46

Generac 0G6320

GROUND BAR (5) 2-14 AWG CONN

$38.50

$

Usually ships in 2-12 days

0

47

Generac 026850

WASHER SHAKEPROOF EXT 1/4 STL

$

$

Not available

48

Generac 0G8411

NUT HEX FL WHIZ 1/4-20

$0.99

$

Usually ships in 2-12 days

0

52

Generac 0E6303

WIRE-A

$2.99

$

Usually ships in 2-12 days

0

53

Generac 0E6303A

WIRE-B

$55.99

$

Usually ships in 2-12 days

0

54

Generac 0E6303B

WIRE E1 3.0"

$2.99

$

Usually ships in 2-12 days

0

55

Generac 0D2806

FUSEBLOCK 30A 600V 2 POLE

Note: SUPPLIED WITH HARNESS ITEM #64

$40.99

$

Usually ships in 2-12 days

0

56

Generac 073590A

FUSE 5A X BUSS HLDR73591

$8.99

$

In Stock, only 1 left!

0

57

Generac 0A1495

SCREW HHTT M4-0.7 X 10 BP

$0.99

$

Usually ships in 2-12 days

0

58

Generac 049897

SCREW SHC M8-1.25 X 20 G8

$

$

Not available

59

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

60

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

61

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 7

0

62

Generac 043107

SCREW HHC M8-1.25 X 25 C8.8

$

$

Not available

63

Generac 026902

SCREW HHTT #8-32 X 1/4 CZ
(Superseded to G026902)

$0.99

$

Usually ships in 2-12 days

0

65

Generac 0E3717A

ASSY-NEUT BLK 200-400A W/TAP

Note: ORDER 0E3717ASRV

$

$

Not available

66

Generac 090388

SCREW HHTT M6-1.0 X 12 MM
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

72

Generac 0G8534

NEUTRAL WIRE

$

$

Currently unavailable

73

Generac 0G7925

ASSY PCB 2008HSB LOAD SHEDCTRL

Note: FOR 2 AMP FUSE ONLY ORDER PART NUMBER 0D7178V.

$448.99

$

Usually ships in 2-12 days

0

74

Generac 027911

RELAY SOC 12VDC DPDT 10A@240VA

$

$

Not available

75

Generac 0D6511

SPACER .20 X .375 X .375 PL

$1.49

$

Usually ships in 2-12 days

0

76

Generac 0E6423

NUT HEX FL WHIZ M5-0.8

$0.99

$

Usually ships in 2-12 days

0

77

Generac 0G8293

16 CIR L/CENTR 200A/240V SIEMS

$167.99

$

Usually ships in 2-12 days

0

83

Generac 0E6034

STRAIGHT SPADE CONNECTOR

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1. USE 0G10380SRV

$1.99

$

Usually ships in 2-12 days

0

84

Generac 0F6685

TIE-WRAP MOUNT(FIR TREE SYTLE)

$1.99

$

Usually ships in 2-12 days

0

85

Generac 0E6033

90 DEGREE DN SPADE CONNECTOR

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1. USE 0G10380SRV

$

$

Currently unavailable
