RTSV600A3 - Generac Power Transfer Switch (SN: 8195998 - 9340504) (2014) AV RTSR/V 600A (0K0162A) Parts Diagram

Power Transfer Switch

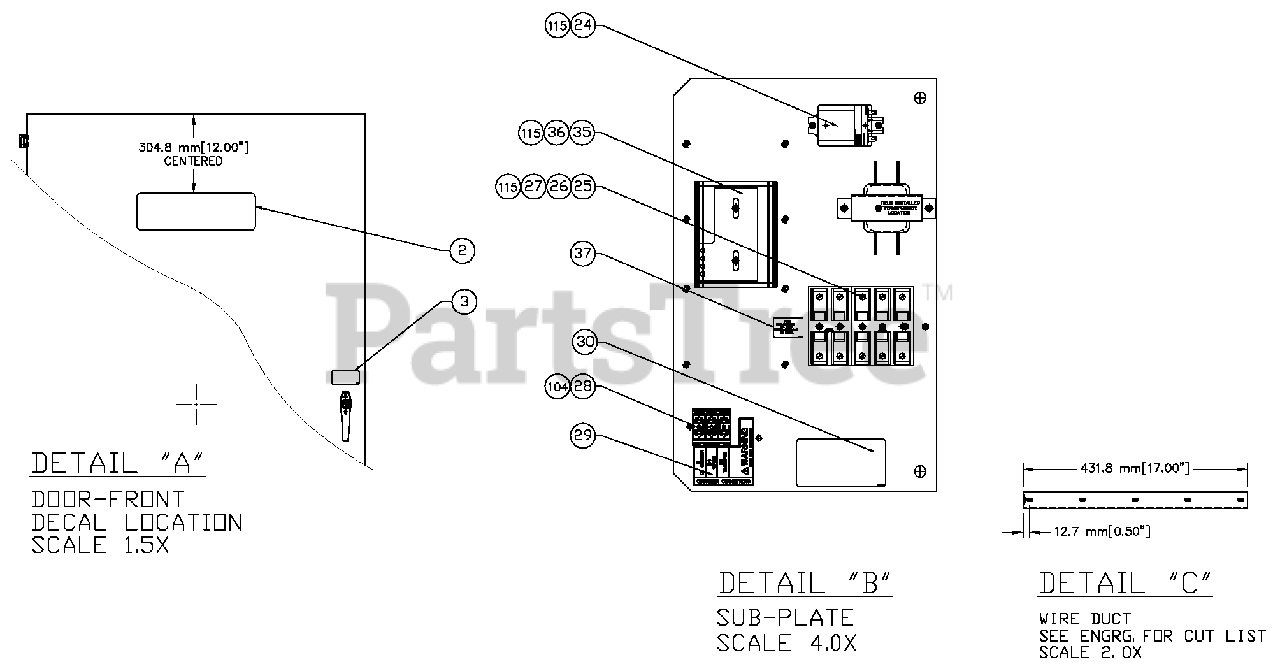

AV RTSR/V 600A (0K0162A) Parts Diagram

  • Title

2

DECAL RTS TRANSFER SW NEMA 3R

$

$

Not available

3

Generac 095282

DECAL LIVE CIRCUIT

$

$

Not available

24

Generac 0K0103

RELAY PNL 12VDC DPDT 10A@240VA

Note: DESIGNATES ITEMS STRUCTURED IN WIRE HARNESS (NOT SHOWN)

$41.99

$

Usually ships in 2-12 days

0

25

Generac 0D2806

FUSEBLOCK 30A 600V 2 POS W/SQ

Note: DESIGNATES ITEMS STRUCTURED IN WIRE HARNESS (NOT SHOWN)

$40.99

$

Usually ships in 2-12 days

0

26

Generac 0D2572

FUSEBLOCK 30A 600V 3 POS W/SQ

Note: DESIGNATES ITEMS STRUCTURED IN WIRE HARNESS (NOT SHOWN)

$37.99

$

Usually ships in 2-12 days

0

27

Generac 073590A

FUSE 5A X BUSS

$8.99

$

In Stock, only 1 left!

0

28

Generac 0D7393T

TERM BLOCK 3P UL 12-20AWG

Note: DESIGNATES ITEMS STRUCTURED IN WIRE HARNESS (NOT SHOWN)

$6.99

$

Usually ships in 2-12 days

0

29

Generac 0H7917

DECAL CUSTOMER CONN.

$1.49

$

Usually ships in 2-12 days

0

30

Generac 054199

DECAL DANGER HIGH VOLTAGE

$

$

Not available

35

Generac 0H7270

CHANNEL SNAPTRACK 76.2 X 101.2

$18.99

$

Usually ships in 2-12 days

0

36

Generac 0K0220A

ASSY LOAD MGMT CONTROLLER

Note: ORDER P/N 0K0220ASRV

$

$

Currently unavailable

37

Generac 0E4415G

DECAL, FUSE RATING 5A 600V

$1.99

$

Usually ships in 2-12 days

0

104

Generac 0K0124

SCREW PHTT M3-0.5 X 25 ZINC

$5.99

$

Usually ships in 2-12 days

0

115

Generac 0C2265

SCREW PHTT M4-0.7 X 12 ZP

$0.99

$

Usually ships in 2-12 days

0
