RTX 122 (2692057-00) - Snapper 122cm Lawn Tractor, 8270 Series Briggs & Stratton Engine Group Parts Diagram

122cm Lawn Tractor, 8270 Series Briggs & Stratton

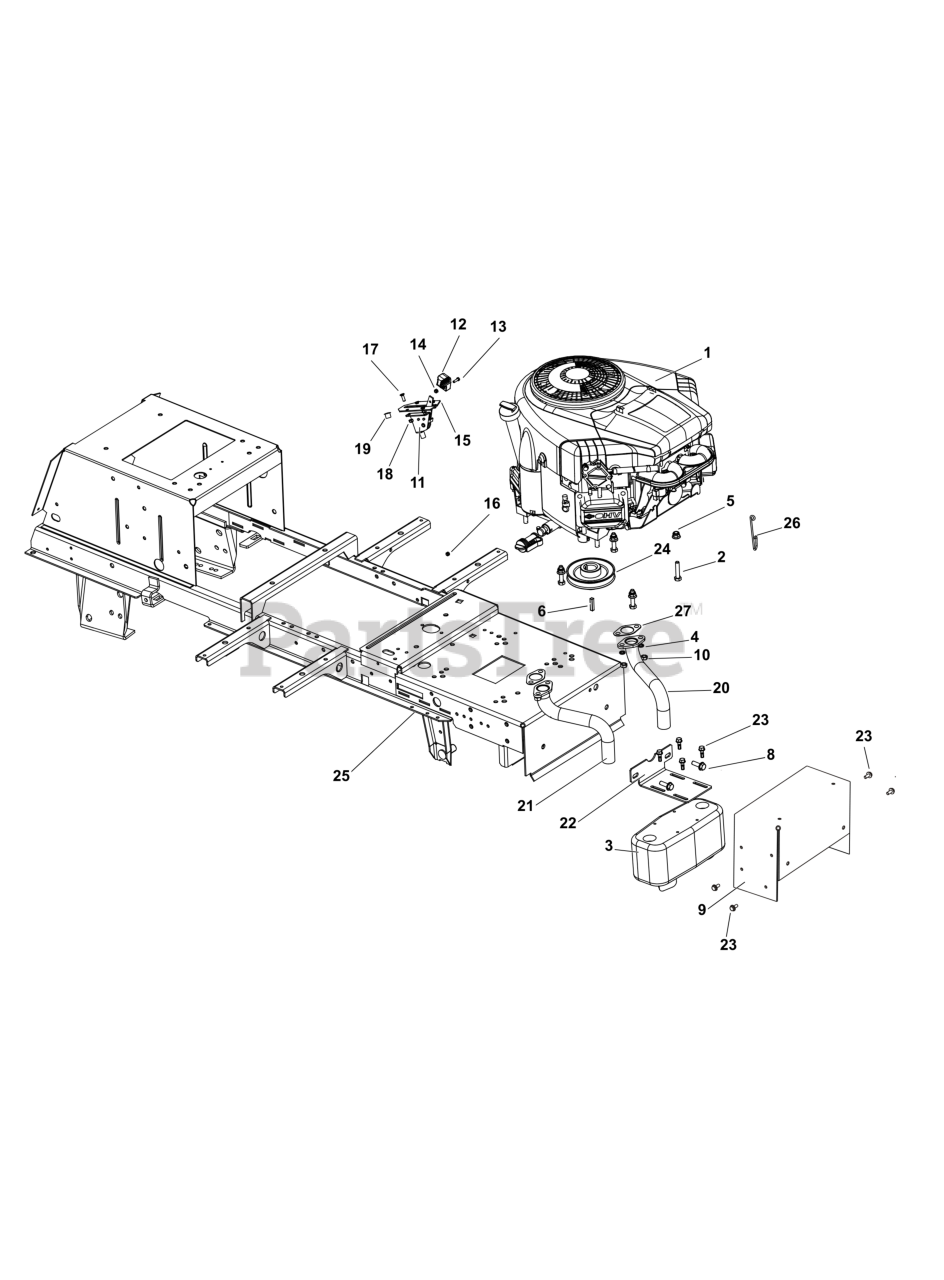

Engine Group Parts Diagram

  • Title

1

Snapper 44U877-0030-B5

ENGINE, B&S 8270 Professional Series

Note: ( Refer to Note: **) (Engine Model: 44U877-0030-B5 )

$

$

Currently unavailable

2

SCREW M8X40

Note: ( Refer to Note: *)

$

$

Not available

3

Snapper 84012037

EXHAUST

$

$

Currently unavailable

4

WASHER 8

Note: ( Refer to Note: *)

$

$

Not available

5

NUT M8

Note: ( Refer to Note: *)

$

$

Not available

6

Snapper 84011668

KEY, Drive Pulley

$

$

Currently unavailable

8

SCREW M8X25

Note: ( Refer to Note: *)

$

$

Not available

9

Snapper 84012039

COVER

$

$

Currently unavailable

10

Snapper 84012040

SCREW

$

$

Currently unavailable

11

Snapper 84011474

LEVER, THROTTLE

$

$

Currently unavailable

12

Snapper 84011475

LEVER, THROTTLE

$

$

Currently unavailable

13

SCREW M4X14

Note: ( Refer to Note: *)

$

$

Not available

14

NUT M4

Note: ( Refer to Note: *)

$

$

Not available

15

Snapper 84012041

PLATE, Reinforcement

$

$

Currently unavailable

16

Snapper 84012042

NUT

$

$

Currently unavailable

17

SCREW M5X16

Note: ( Refer to Note: *)

$

$

Not available

18

NUT M5

Note: ( Refer to Note: *)

$

$

Not available

19

Snapper 84011663

FLANGE

$

$

Currently unavailable

20

Snapper 84012034

MANIFOLD, Exhaust

$

$

Currently unavailable

21

Snapper 84012284

MANIFOLD, Exhaust

$

$

Currently unavailable

22

Snapper 84012035

BRACKET

$

$

Currently unavailable

23

SCREW M6X16

Note: ( Refer to Note: *)

$

$

Not available

24

Snapper 84012036

PULLEY

$

$

Currently unavailable

25

Snapper 84012285

FRAME

$

$

Currently unavailable

26

Snapper 84012038

HOOK

$

$

Currently unavailable

27

Snapper 594365

GASKET, Exhaust

$11.99

$

In Stock, only 2 left!
