RTX 122 (2692057-00) - Snapper 122cm Lawn Tractor, 8270 Series Briggs & Stratton Transmission Group Parts Diagram

122cm Lawn Tractor, 8270 Series Briggs & Stratton

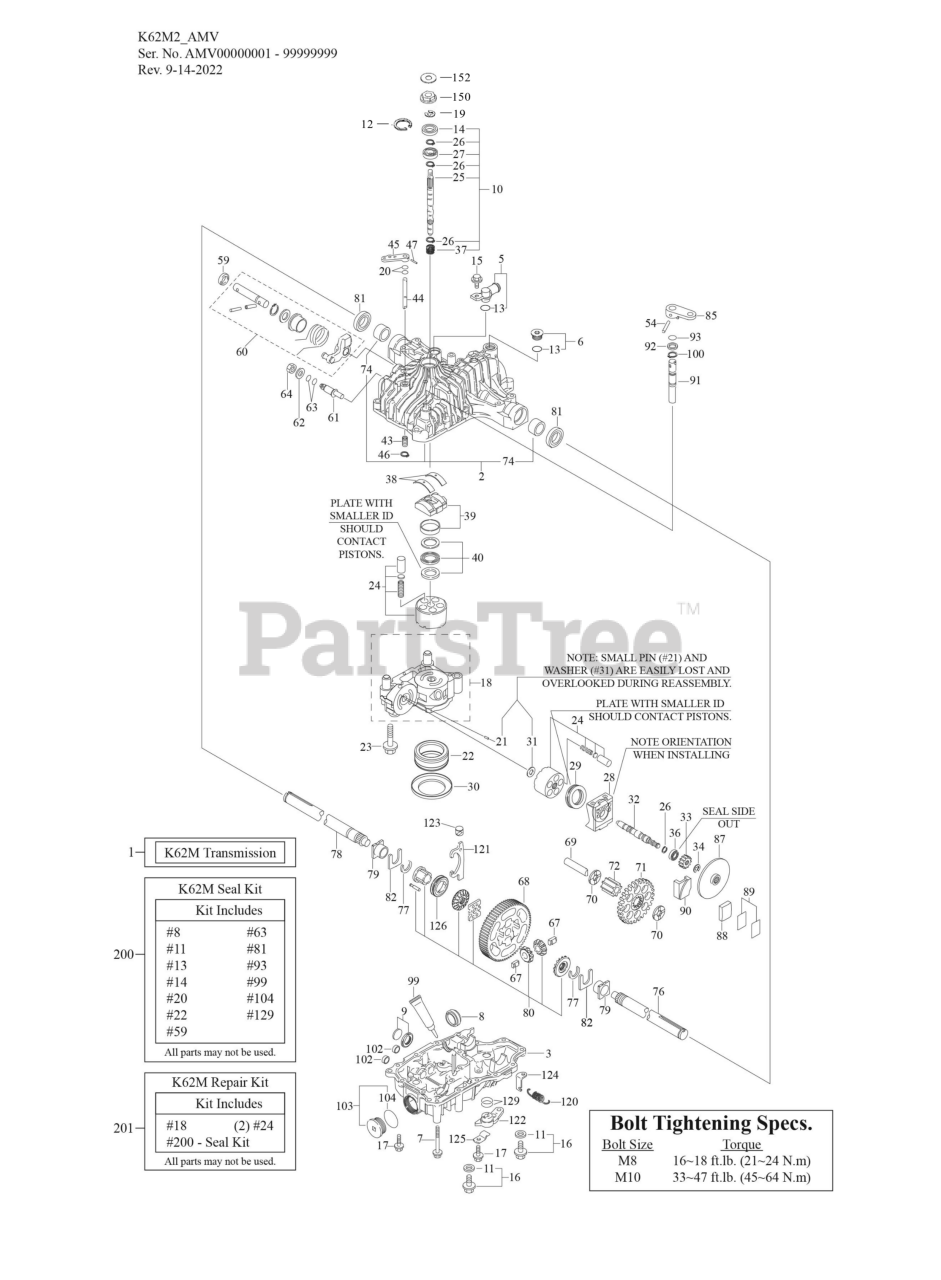

Transmission Group Parts Diagram

  • Title

1

Snapper 84011264

TRANSMISSION

$

$

Currently unavailable

2

UPPER CASE KIT

Note: ( Refer to Note: * )

$

$

Not available

3

LOWER CASE

Note: ( Refer to Note: * )

$

$

Not available

5

Snapper 84011342

PLATE

$

$

Currently unavailable

6

Snapper 84011325

PLUG

$

$

Currently unavailable

7

SCREW CAP M8X75

Note: ( Refer to Note: * )

$

$

Not available

8

Snapper 84011293

FILTER, Oil

$

$

Currently unavailable

9

Snapper 84011294

MAGNET

$

$

Currently unavailable

10

PUMP SHAFT KIT

Note: ( Refer to Note: * )

$

$

Not available

11

WASHER SEAL 10

Note: ( Refer to Note: * )

$

$

Not available

12

Snapper 84011270

RING

$

$

Currently unavailable

13

Snapper 84011303

O-RING

$

$

Currently unavailable

14

Snapper 84011331

GASKET

$

$

Currently unavailable

15

Snapper 84011340

SCREW

$

$

Currently unavailable

16

DRAIN BOLT KIT

Note: ( Refer to Note: * )

$

$

Not available

17

TAPPING SCREW 8X30

Note: ( Refer to Note: * )

$

$

Not available

18

Snapper 84011286

CASE

$

$

Currently unavailable

19

Snapper 84011305

RING

$

$

Currently unavailable

20

Snapper 84011304

O-RING

$

$

Currently unavailable

21

PIN 3X9.8

Note: ( Refer to Note: * )

$

$

Not available

22

Snapper 84011283

FILTER, Oil

$

$

Currently unavailable

23

BOLT M10X65

Note: ( Refer to Note: * )

$

$

Not available

24

Snapper 84011308

PUMP, Oil

$

$

Currently unavailable

25

Snapper 84011277

SHAFT

$

$

Currently unavailable

26

Snapper 84011313

RING, Locking

$

$

Currently unavailable

27

BEARING 6202-C-C3

Note: ( Refer to Note: * )

$

$

Not available

28

Snapper 84011337

HOUSING, Motor

$

$

Currently unavailable

29

BEARING THS060513

Note: ( Refer to Note: * )

$

$

Not available

30

FILTER CAP

Note: ( Refer to Note: * )

$

$

Not available

31

WASHER 12X24X1

Note: ( Refer to Note: * )

$

$

Not available

32

MOTOR SHAFT

Note: ( Refer to Note: * )

$

$

Not available

33

MOTOR GEAR

Note: ( Refer to Note: * )

$

$

Not available

34

E-RING

Note: ( Refer to Note: * )

$

$

Not available

36

BEARING 6302 DUC3

Note: ( Refer to Note: * )

$

$

Not available

37

PUMP SPRING

Note: ( Refer to Note: * )

$

$

Not available

38

Snapper 84011306

THRUST, Metal

$

$

Currently unavailable

39

Snapper 84011341

PLATE

$

$

Currently unavailable

40

THRUST BEARING KIT

Note: ( Refer to Note: * )

$

$

Not available

43

SPRING 25

Note: ( Refer to Note: * )

$

$

Not available

44

BYPASS SHAFT

Note: ( Refer to Note: * )

$

$

Not available

45

Snapper 84011274

LEVER

$

$

Currently unavailable

46

SNAP RING 10

Note: ( Refer to Note: * )

$

$

Not available

47

SPRING PIN 3.0AX20

Note: ( Refer to Note: * )

$

$

Not available

54

Snapper 1718100SM

ROLL PIN 6 * 40
(Superseded to 1960588SM)

$4.49

$

In Stock, only 2 left!

0

59

Snapper 84011323

GASKET

$

$

Currently unavailable

60

CONTROL SHAFT KIT

Note: ( Refer to Note: * )

$

$

Not available

61

FULCRUM

Note: ( Refer to Note: * )

$

$

Not available

62

Snapper 84011299

WASHER

$

$

Currently unavailable

63

Snapper 84011296

O-RING

$

$

Currently unavailable

64

Snapper 84011300

NUT

$

$

Currently unavailable

67

DIFFERENTIAL PINION PIN

Note: ( Refer to Note: * )

$

$

Not available

68

Snapper 84011284

AXLE

$

$

Currently unavailable

69

FINAL PINION SHAFT

Note: ( Refer to Note: * )

$

$

Not available

70

WASHER 15X35X32

Note: ( Refer to Note: * )

$

$

Not available

71

REDUCTION GEAR (53T)

Note: ( Refer to Note: * )

$

$

Not available

72

FINAL PINION GEAR (11T)

Note: ( Refer to Note: * )

$

$

Not available

74

Snapper 84011295

BEARING

$

$

Currently unavailable

76

Snapper 84011285

AXLE

$

$

Currently unavailable

76

AXLE SHAFT LEFT

Note: ( Refer to Note: * )

$

$

Not available

77

Snapper 84011315

RING, Locking

$

$

Currently unavailable

78

Snapper 84012762

SHAFT

$

$

Currently unavailable

79

Snapper 84011279

BUSHING

$

$

Currently unavailable

79

BUSHING

Note: ( Refer to Note: * )

$

$

Not available

80

DIFFERENTIAL LOCK KIT

Note: ( Refer to Note: * )

$

$

Not available

81

SEAL S 25.4X42X8

Note: ( Refer to Note: * )

$

$

Not available

82

Snapper 84011314

WASHER, Thrust

$

$

Currently unavailable

85

Snapper 84011327

LEVER

$

$

Currently unavailable

87

Snapper 84011336

BRAKE

$

$

Currently unavailable

88

Snapper 84011280

SHOE, Brake

$

$

Currently unavailable

89

Snapper 84011281

PLATE

$

$

Currently unavailable

90

Snapper 84011282

BRAKE

$

$

Currently unavailable

91

BRAKE SHAFT

Note: ( Refer to Note: * )

$

$

Not available

92

Snapper 84011322

WASHER

$

$

Currently unavailable

93

Snapper 84011297

O-RING

$

$

Currently unavailable

99

SEALANT

Note: ( Refer to Note: * )

$

$

Not available

100

SNAP RING

$

$

Not available

102

PLUG 20

$

$

Not available

103

Snapper 84011307

COVER, Oil Filter

$

$

Currently unavailable

104

Snapper 84011316

O-RING

$

$

Currently unavailable

104

O-RING 1A 2040

$

$

Not available

120

Snapper 84011326

SPRING

$

$

Currently unavailable

121

DIFFERENTIAL LOCK FORK

$

$

Not available

122

Snapper 84011318

LEVER

$

$

Currently unavailable

123

LEVER PIVOT

$

$

Not available

125

LEVER CLIP

$

$

Not available

126

DIFFERENTIAL LOCK SLIDER

$

$

Not available

129

O-RING 1A G25

$

$

Not available

150

NUT, LOCK

$

$

Not available

152

WASHER 15X23X2.5

$

$

Not available

200

SEAL KIT

$

$

Not available

201

REPAIR KIT

$

$

Not available
