RX 12u (22AXBAAA037) - MTD RoboMow Robotic Mower (2018) General Assembly Parts Diagram

RoboMow Robotic Mower

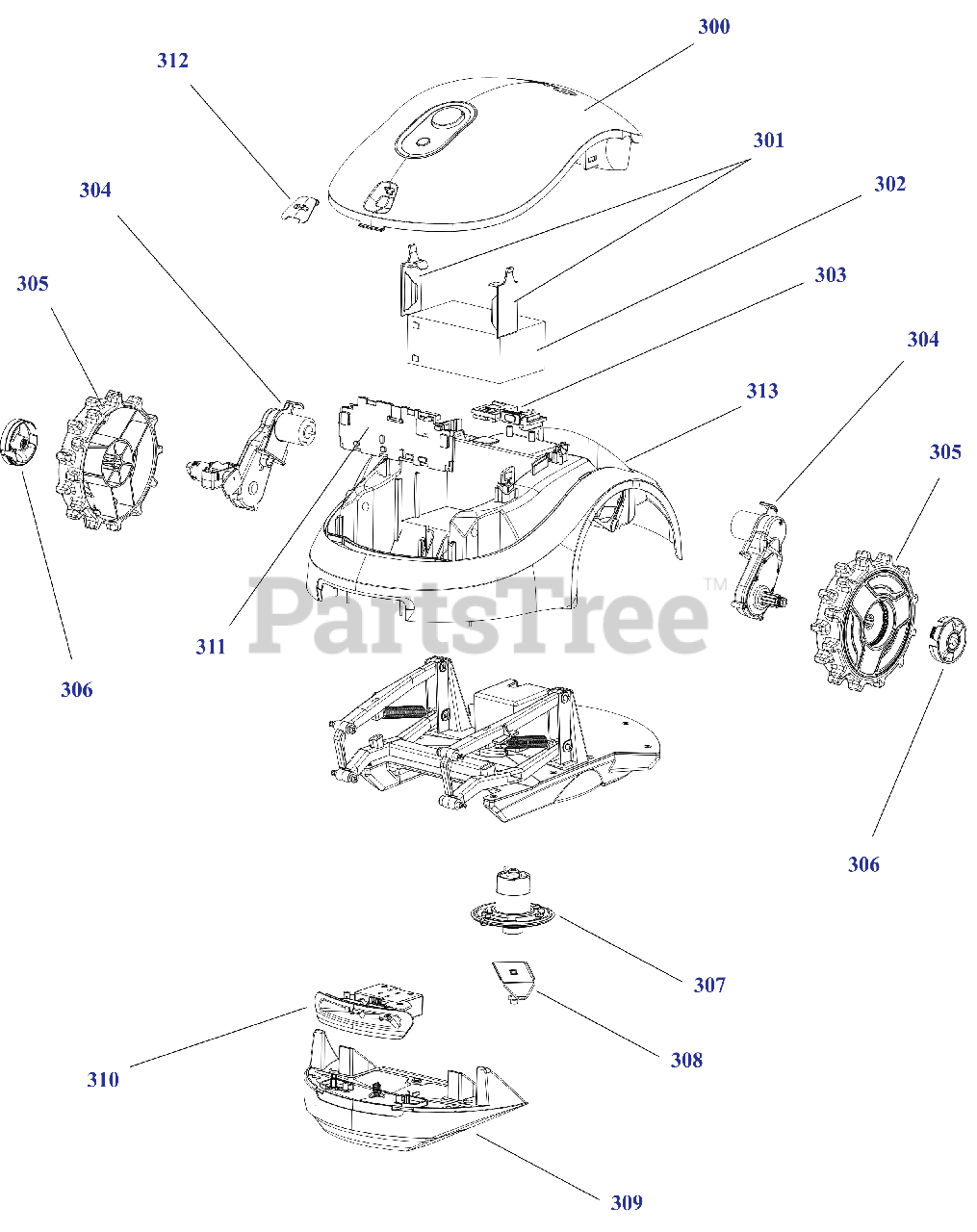

General Assembly Parts Diagram

  • Title

300

MTD FR-SMSB9001G

COVER ASSY (GRN)AND DISABLING RX

$172.99

$

Usually ships in 3-6 days

0

301

MTD FR-SINJ9028A

BATTERY LOCKERS RX

$24.99

$

Usually ships in 3-6 days

0

302

MTD FR-MRK9101A

BATTERY (RX)

$105.99

$

Usually ships in 3-6 days

0

304

MTD FR-SMOT9000A

DRIVE MOTOR RX

$124.99

$

Usually ships in 3-6 days

0

306

MTD FR-SINJ9014A

WHEEL LOCK CAPS RX

$17.99

$

Usually ships in 3-6 days

0

307

MTD FR-SMOT9101A

MOWING MOTOR RX

$80.99

$

Usually ships in 3-6 days

0

309

MTD FR-MSB9002B

SKI ASSEMBLY RX

$25.99

$

Usually ships in 3-6 days

0

310

MTD FR-MSB9004A

NOZZLE ASSEMBLY RX

$72.99

$

Usually ships in 3-6 days

0

311

MTD FR-SESB9000B

MAIN BOARD RX

$274.99

$

Usually ships in 3-6 days

0

312

MTD FR-SMSB9010A

DISABLING DEVICE FOR RX

$26.99

$

Usually ships in 3-6 days

0

313

MTD FR-MSB9000A

CHASSIS ASSEMBLY RX

$113.99

$

Usually ships in 3-6 days

0

314

MTD FR-SPWS0022A

10MM POWER SUPPLY WALL MT 17V

$126.99

$

Usually ships in 3-6 days

0

316

MTD FR-SMSB9009A

BASE STATION HEAD ASSEMBLY RX

$140.99

$

Usually ships in 3-6 days

0

317

MTD FR-SINJ9026B

BASE STATION RX

$79.99

$

Usually ships in 3-6 days

0

318

MTD FR-WSB9001D

MOWING MOTOR CABLE

$63.99

$

Usually ships in 3-6 days

0

320

MTD FR-MSB9003A

MAWING DECK ASSEMBLY RX

$205.99

$

Usually ships in 3-6 days

0

321

MTD FR-GEN9004A

MOWING DECK SPRIN RX

$20.99

$

Usually ships in 3-6 days

0

322

MTD FR-INJ9022A-01

MOWING ARM LONG PIN RX

$8.99

$

Usually ships in 3-6 days

0

323

MTD FR-INJ9023A-01

MOWING ARM SHORT PIN RX

$8.99

$

Usually ships in 3-6 days

0

324

MTD FR-SCR5009B

SCREW K4X20 WN 1451-ZP TOREX

$0.99

$

Usually ships in 3-6 days

0

325

MTD FR-SCR9003A

EJOT K30X35 WN-1451 TORX

$0.99

$

Usually ships in 3-6 days

0

MTD FR-DOC9004B

ROBO RULER (RX)

Note: Not Shown

$21.99

$

Usually ships in 3-6 days

0

MTD FR-STOL0013A

ROBO TOOL

Note: Not Shown

$36.99

$

Usually ships in 3-6 days

0

MTD FR-STC0123A

NOT FOR CHILDREN STICKER

Note: Not Shown

$3.49

$

Usually ships in 3-6 days

0

MTD FR-STC5004C

DANGER STICKER

Note: Not Shown

$3.49

$

Usually ships in 3-6 days

0

MTD FR-STC6002B

WARNING STICKER REAR

Note: Not Shown

$19.99

$

Usually ships in 3-6 days

0

MTD FR-STC6036W

ALARM STICKER

Note: Not Shown

$16.99

$

Usually ships in 3-6 days

0

MTD FR-TOL9001A

RX SERVICE KEYBOARD KIT

Note: Not Shown

$109.99

$

Usually ships in 3-6 days

0

MTD FR-TOL9002A

RX COMMUNICATION PLUG

Note: Not Shown

$93.99

$

Usually ships in 3-6 days

0

MTD FR-MSB9005A

MOWING HEIGHT ADJUST ASSEMBLY RX

Note: Not Shown

$5.99

$

Usually ships in 3-6 days

0

MTD FR-PCK9000N1

RX BROWN MAIN PACK

Note: Not Shown

$

$

Not available

MTD FR-PCK9012B

RX 12U MAIN PACK

Note: Not Shown

$

$

Not available

MTD FR-PCK9020B

RX 20U MAIN PACK

Note: Not Shown

$

$

Not available
