RXT 360 (2691706-00) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton 42" (107cm) Mower Deck - Clutch Group Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

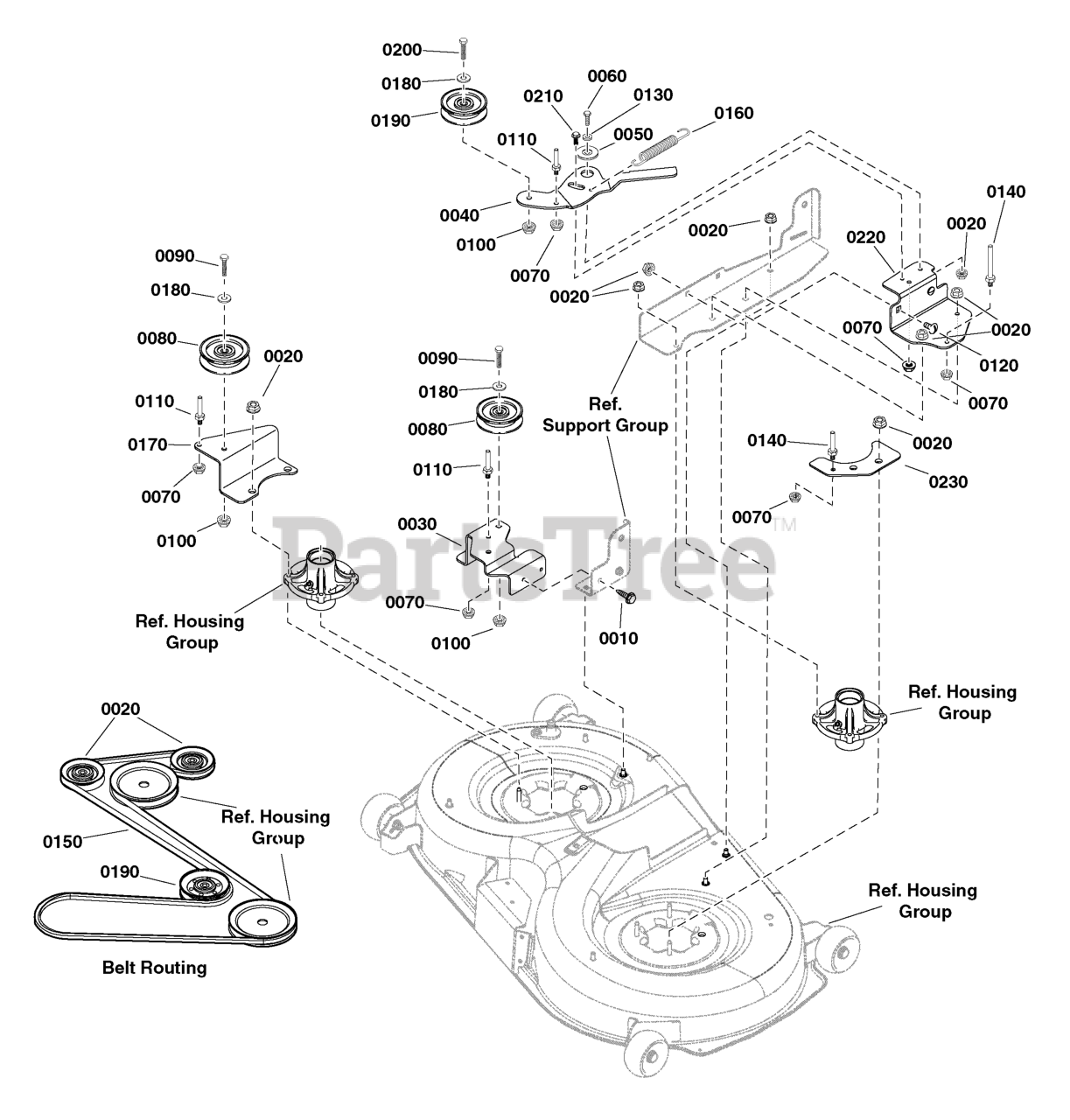

42" (107cm) Mower Deck - Clutch Group Parts Diagram

  • Title

0010

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0030

Snapper 84003049

BRACKET, Idler

$34.99

$

Usually ships in 2-12 days

0

0040

Snapper 1758759BMYP

IDLER ARM

$51.99

$

Usually ships in 2-12 days

0

0050

Snapper 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 4 left!

0

0060

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0070

Snapper 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 885482YP

IDLER, Pulley

$33.99

$

Usually ships in 2-12 days

0

0090

Snapper 703589

CAPSCREW, Hex Head, 3/8-16 X 2, GR5

$4.49

$

In Stock, Qty 12

0

0100

Snapper 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 9

0

0110

Snapper 885534YP

BELT GUIDE

$9.49

$

Usually ships in 2-12 days

0

0120

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

0140

Snapper 1401105MA

BELT GUIDE, Long

$5.49

$

In Stock, Qty 5

0

0150

Snapper 1758760YP

BELT

$69.99

$

Usually ships in 2-12 days

0

0160

Snapper 165X157MA

SPRING, Extension

$11.99

$

Usually ships in 2-12 days

0

0170

Snapper 885845BMYP

BRACKET, Idler, Fixed

$34.99

$

Usually ships in 2-12 days

0

0180

Snapper 704128

WASHER, Flat

$4.99

$

In Stock, Qty 11

0

0190

Snapper 885937YP

PULLEY, Idler 4.00

$34.99

$

In Stock, only 2 left!

0

0200

Snapper 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, Qty 6

0

0210

Snapper 1752802YP

BOLT, Shoulder, 5/16-18 x 1.03LG

$5.99

$

Usually ships in 2-12 days

0

0220

Snapper 1758758BMYP

BRACKET, Idler Mount

$41.99

$

Usually ships in 2-12 days

0

0230

Snapper 1758757BMYP

PLATE, Belt Guide Mount

$13.99

$

Usually ships in 2-12 days
