RXT 360 (2691706-00) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton Suspension Group Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

Suspension Group Parts Diagram

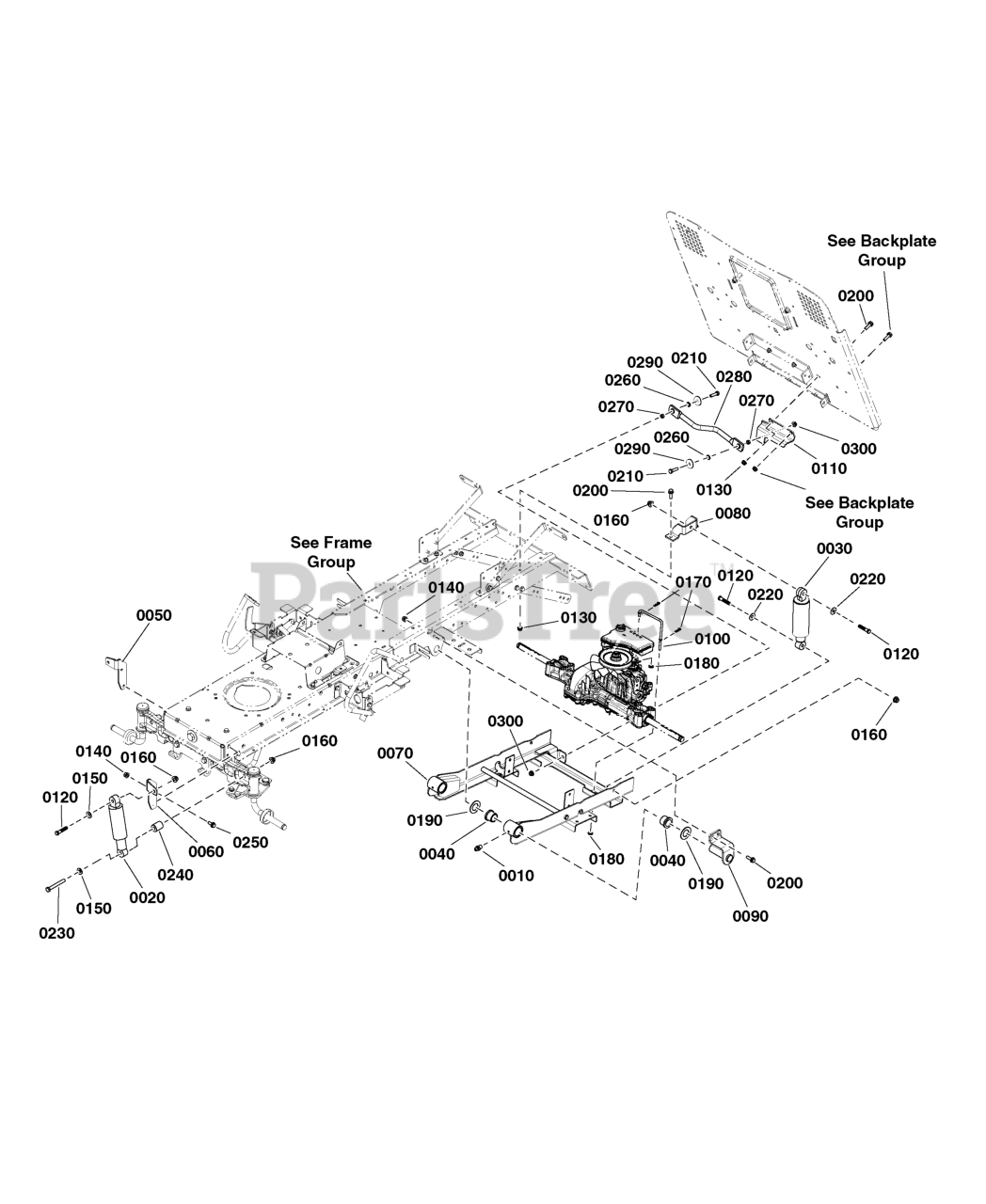

  • Title

0010

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0020

Snapper 1755279YP

SHOCK ABSORBER

$69.99

$

Usually ships in 2-12 days

0

0030

Snapper 1758705YP

**SHOCK ABSORBER, 10 1/2"

$86.99

$

Usually ships in 2-12 days

0

0040

Snapper 1758717YP

BUSHING, Flange, 1 x 1

$8.99

$

Usually ships in 2-12 days

0

0050

Snapper 84003004

BRACKET, Right Side

$19.99

$

Usually ships in 2-12 days

0

0060

Snapper 84003005

BRACKET, Left Side

$19.99

$

Usually ships in 2-12 days

0

0070

Snapper 84003111

CARRIER

$431.99

$

Usually ships in 2-12 days

0

0080

Snapper 84003112

BRACKET, Rear Shocks

$23.99

$

Usually ships in 2-12 days

0

0090

Snapper 84003113

PIVOT

$47.99

$

Usually ships in 2-12 days

0

0100

Snapper 84003114

ROD

$16.99

$

Usually ships in 2-12 days

0

0110

Snapper 84003115

BRACKET

$24.99

$

Usually ships in 2-12 days

0

0120

Snapper 704289

CAPSCREW, Hex Head, 3/8-16 X 1 3/4
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 19

0

0130

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.99

$

In Stock, Qty 20+

0

0140

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0150

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0160

Snapper 703158

NUT, Hex Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0170

Snapper 703430

PIN, 13X1.19

$3.49

$

In Stock, Qty 8

0

0180

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0190

Snapper 703199

WASHER, Flat

$4.99

$

In Stock, Qty 8

0

0200

Snapper 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0210

Snapper 84003116

CAPSCREW, Hex Head, 5/16-18 X 1.25

$3.99

$

Usually ships in 2-12 days

0

0220

Snapper 703966

WASHER, Flat

$4.49

$

In Stock, Qty 6

0

0230

Snapper 1923903SM

CAPSCREW, Hex Head, 3/8-16 x 3, Black
(Superseded to 5025013X24SM)

$4.49

$

In Stock, Qty 5

0

0240

Snapper 5103427YP

SPACER, .39 ID x 1 OD x 1-1/4"

$8.99

$

Usually ships in 2-12 days

0

0250

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 5

0

0260

Snapper 704015

WASHER, Flat, 5/16

$4.49

$

Usually ships in 2-12 days

0

0270

Snapper 5102463YP

SPACER, .33 X .50 X .25, PM, CZ

$5.99

$

In Stock, only 4 left!

0

0280

Snapper 84003006

BAR

$54.99

$

Usually ships in 2-12 days

0

0290

Snapper 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 16

0

0300

Snapper 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0
